Acceleration Sensor, Suspension Control

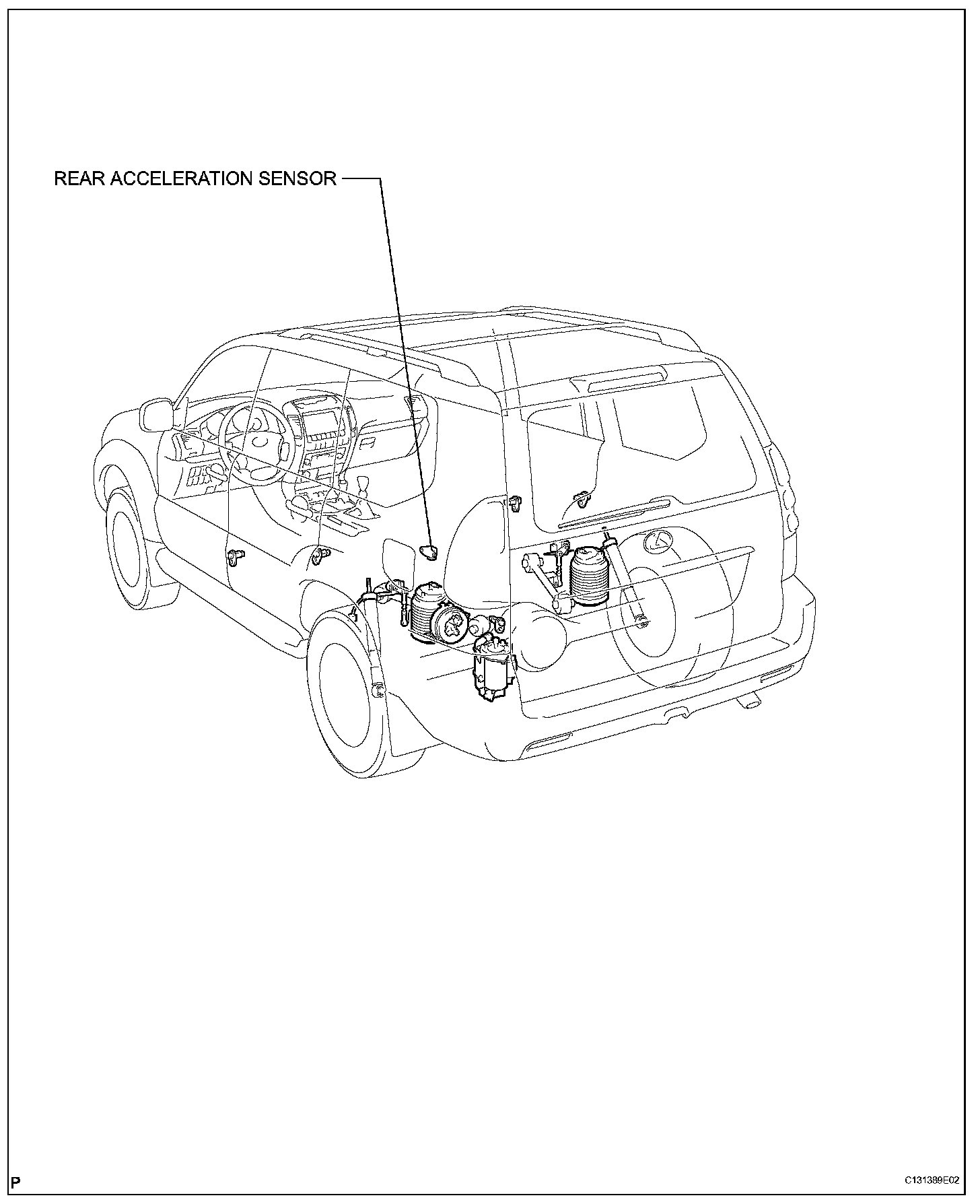

Acceleration Sensor:
Acceleration Sensor:

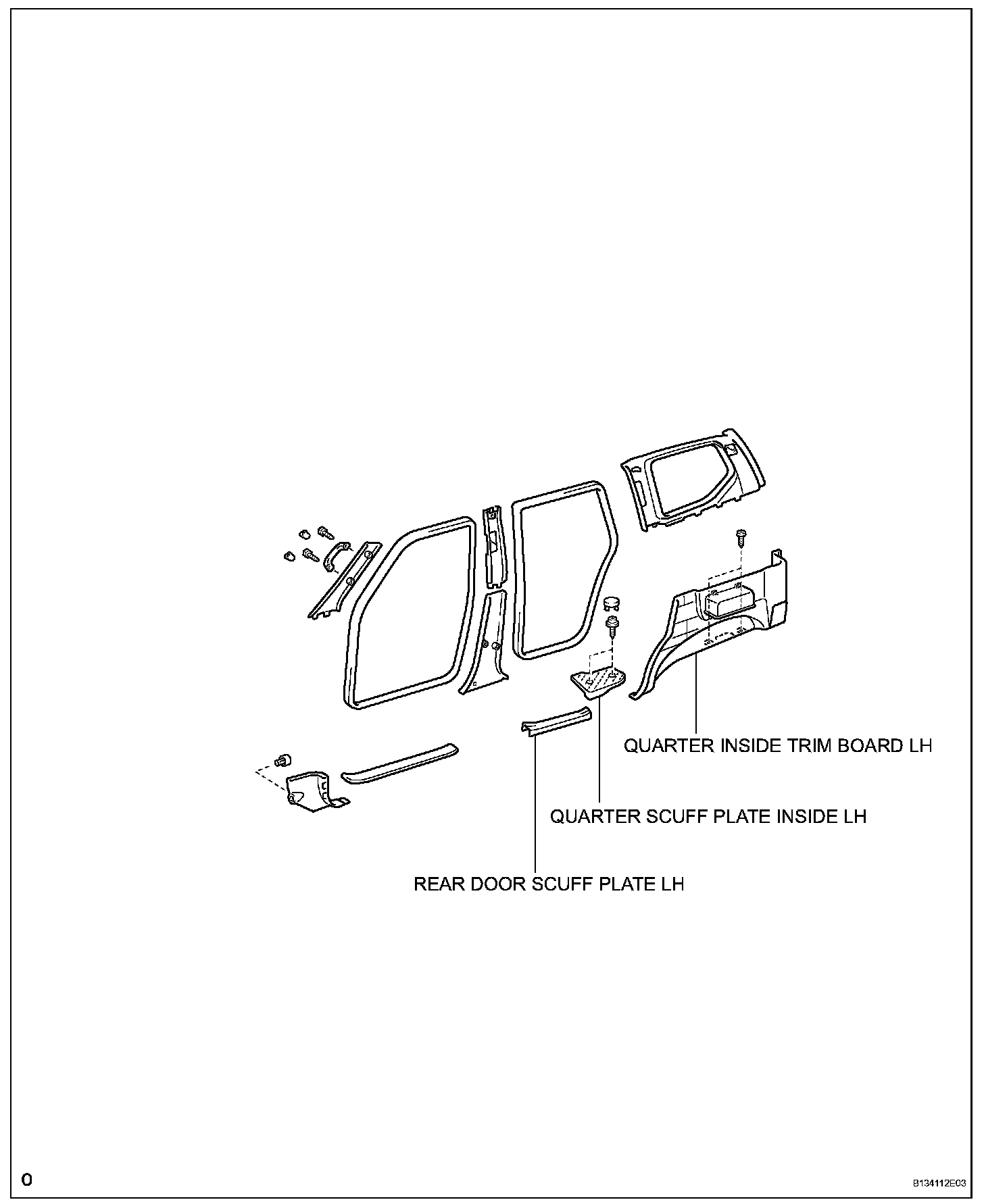

Acceleration Sensor:
Acceleration Sensor:
Acceleration Sensor:

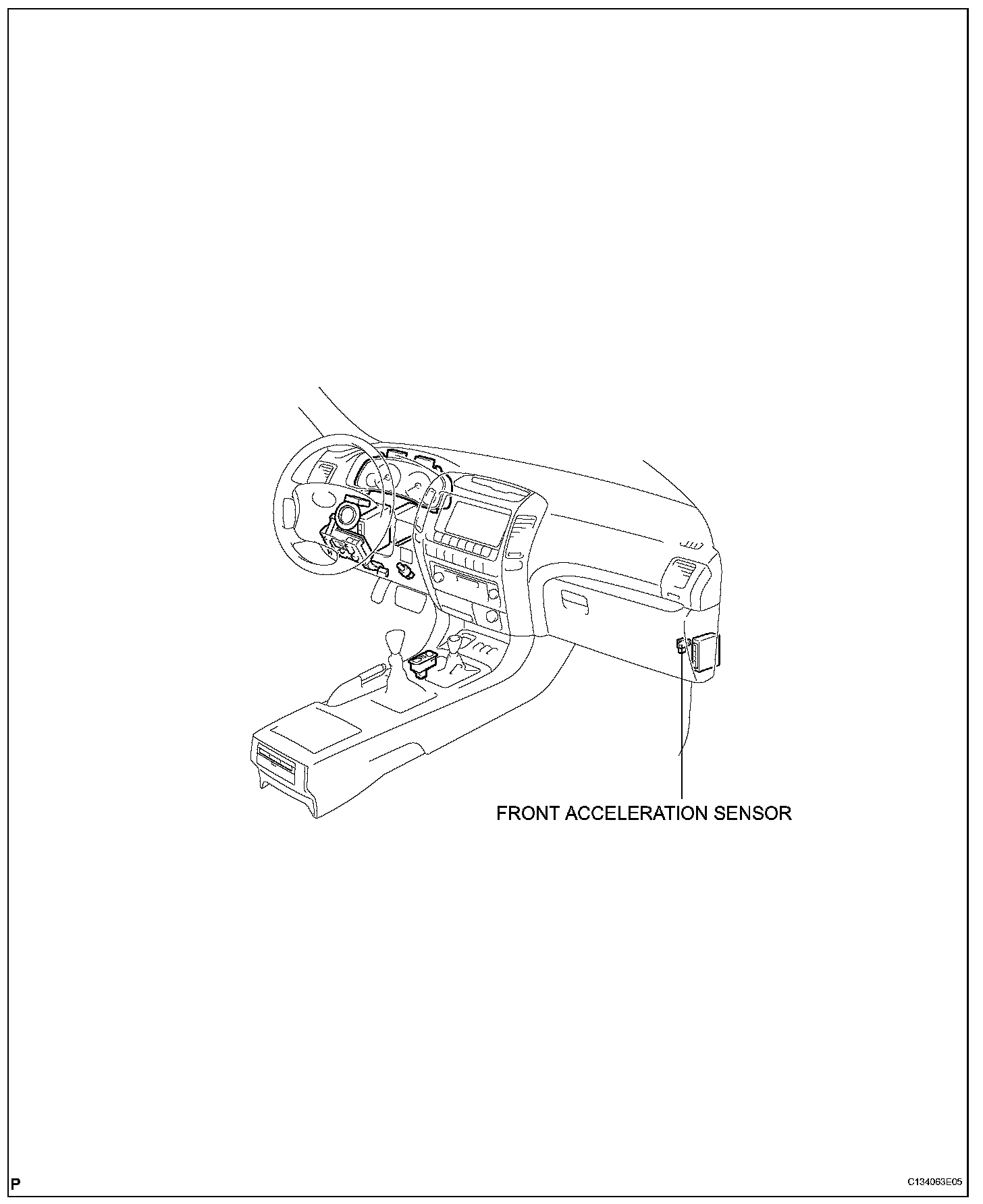

Acceleration Sensor:
Acceleration Sensor:

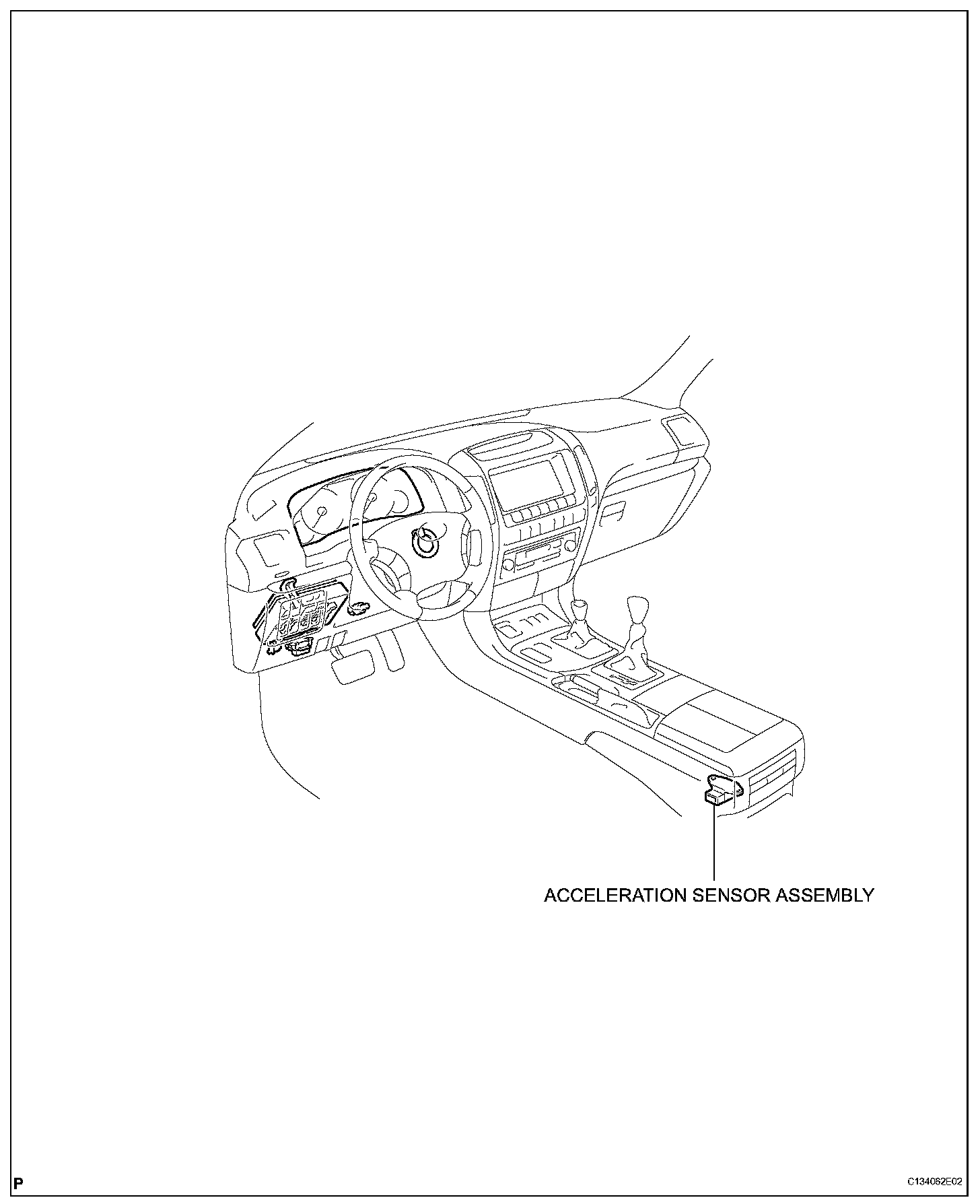

Acceleration Sensor (w/KDSS):
Acceleration Sensor (w/KDSS):
