Fuse Block

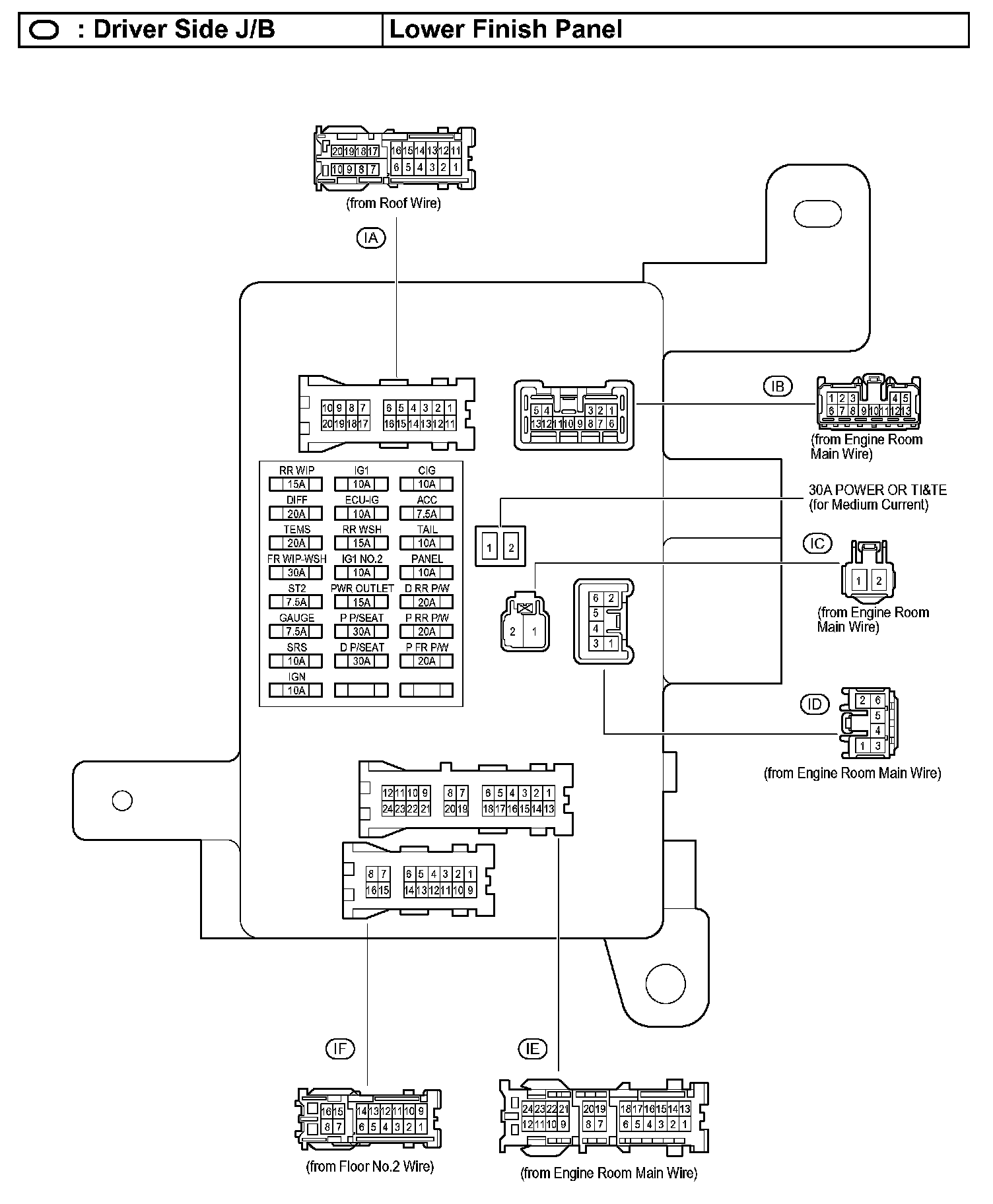

Driver Side J/B - Lower Finish Panel:

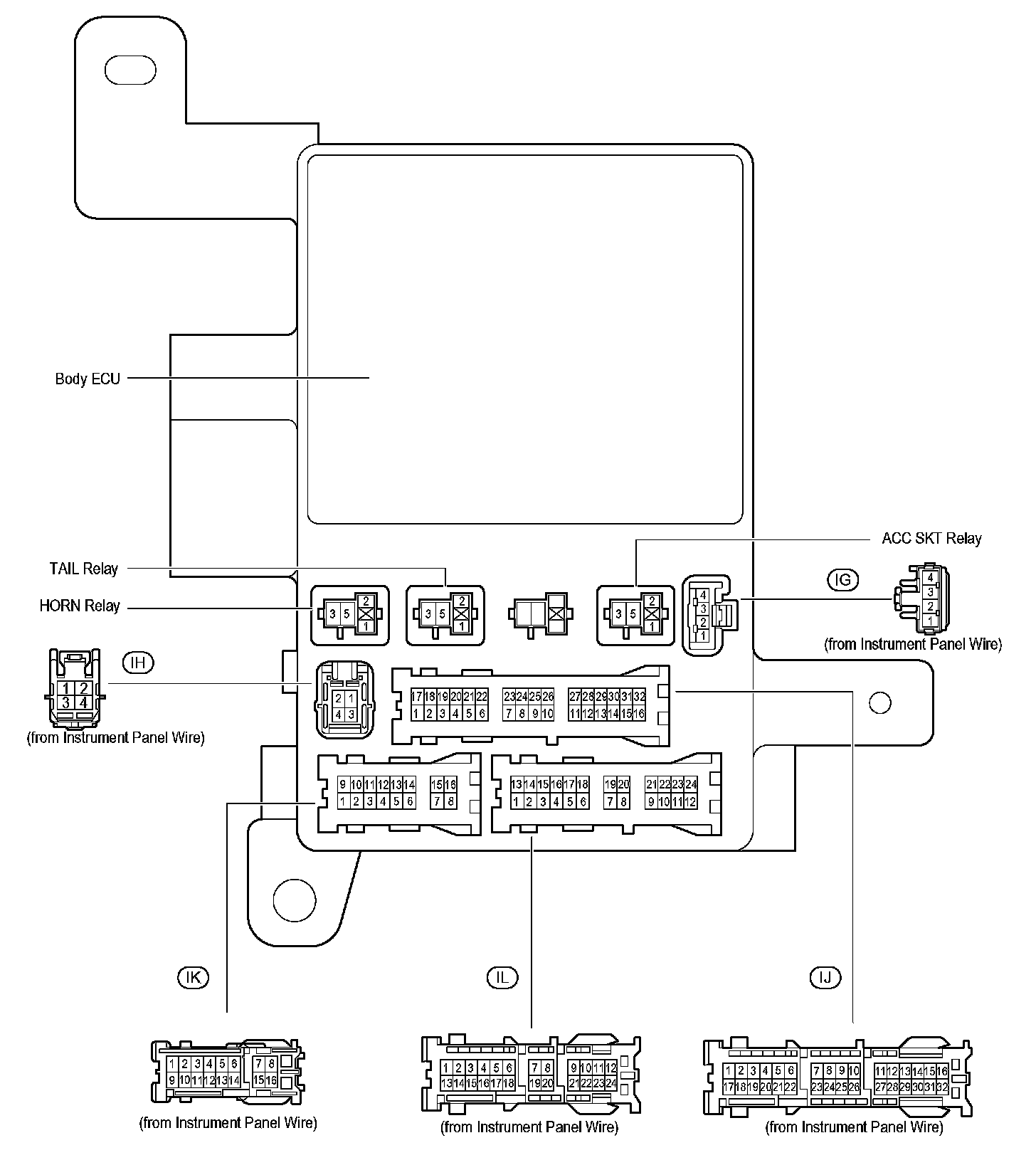

Driver Side J/B - Lower Finish Panel:

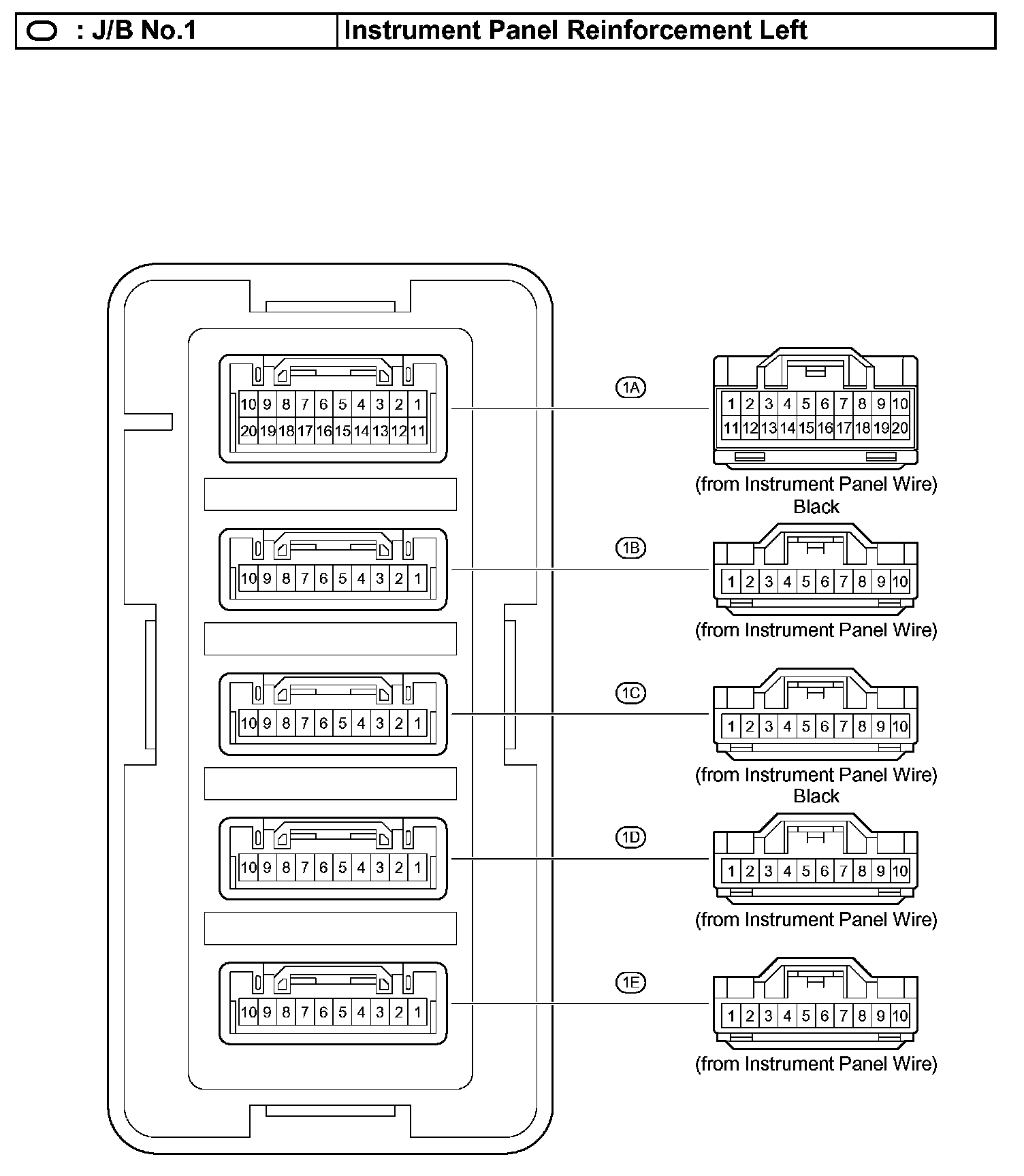

J/B No.1 - Instrument Panel Reinforcement Left:

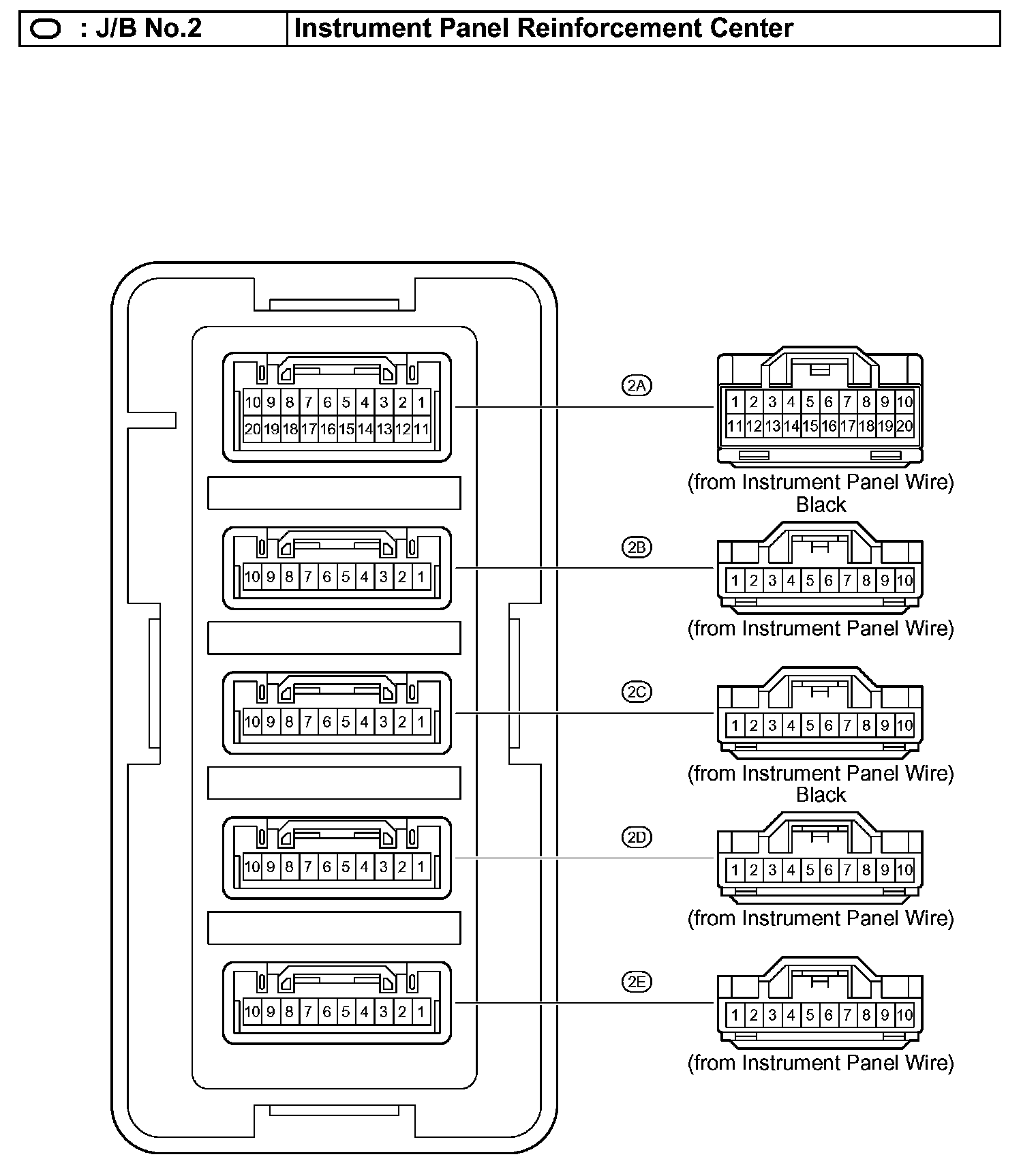

J/B No.2 - Instrument Panel Reinforcement Center:

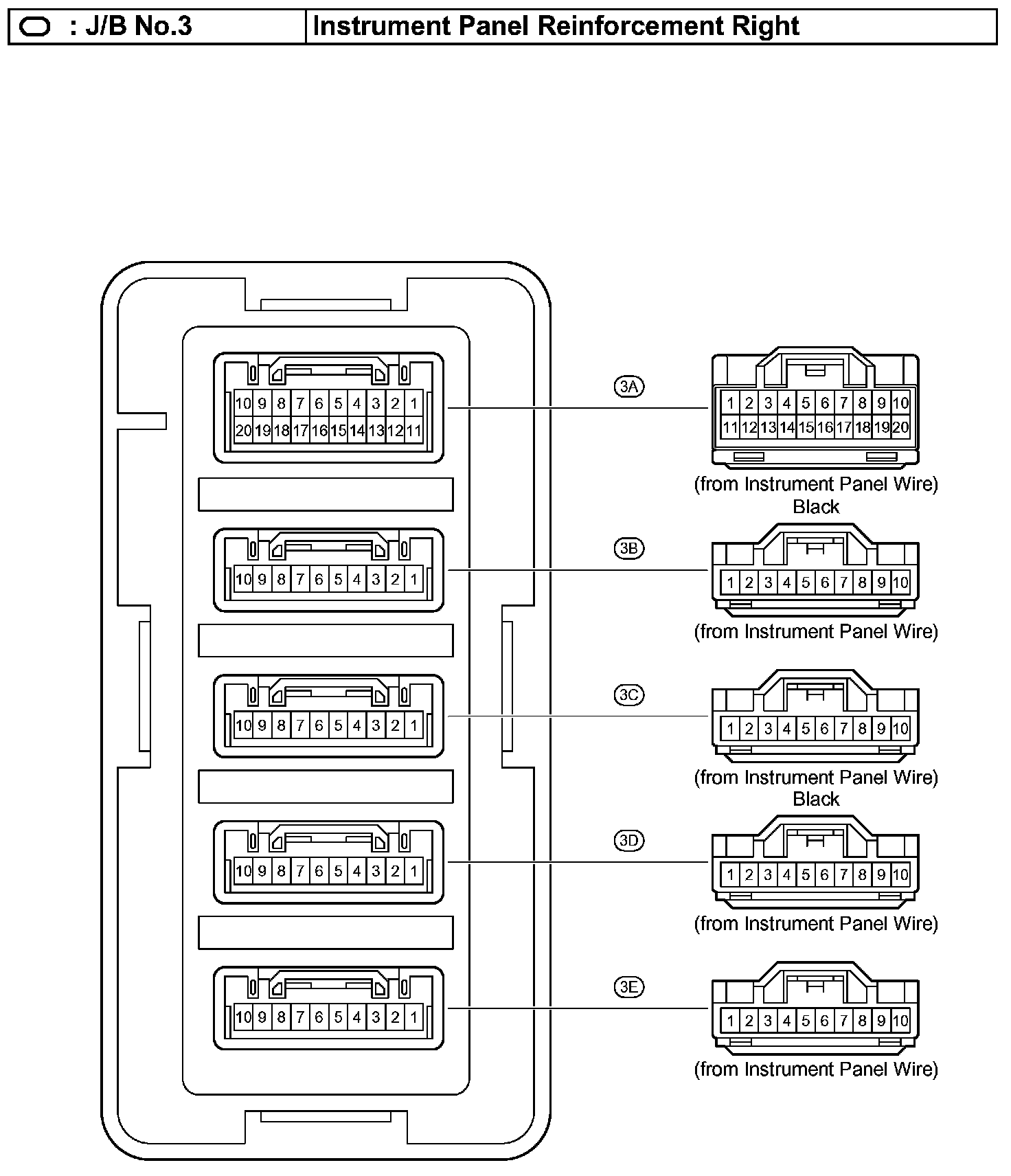

J/B No.3 - Instrument Panel Reinforcement Right:
