Central Control Module: Service and Repair

Network Gateway ECU:

Network Gateway ECU:

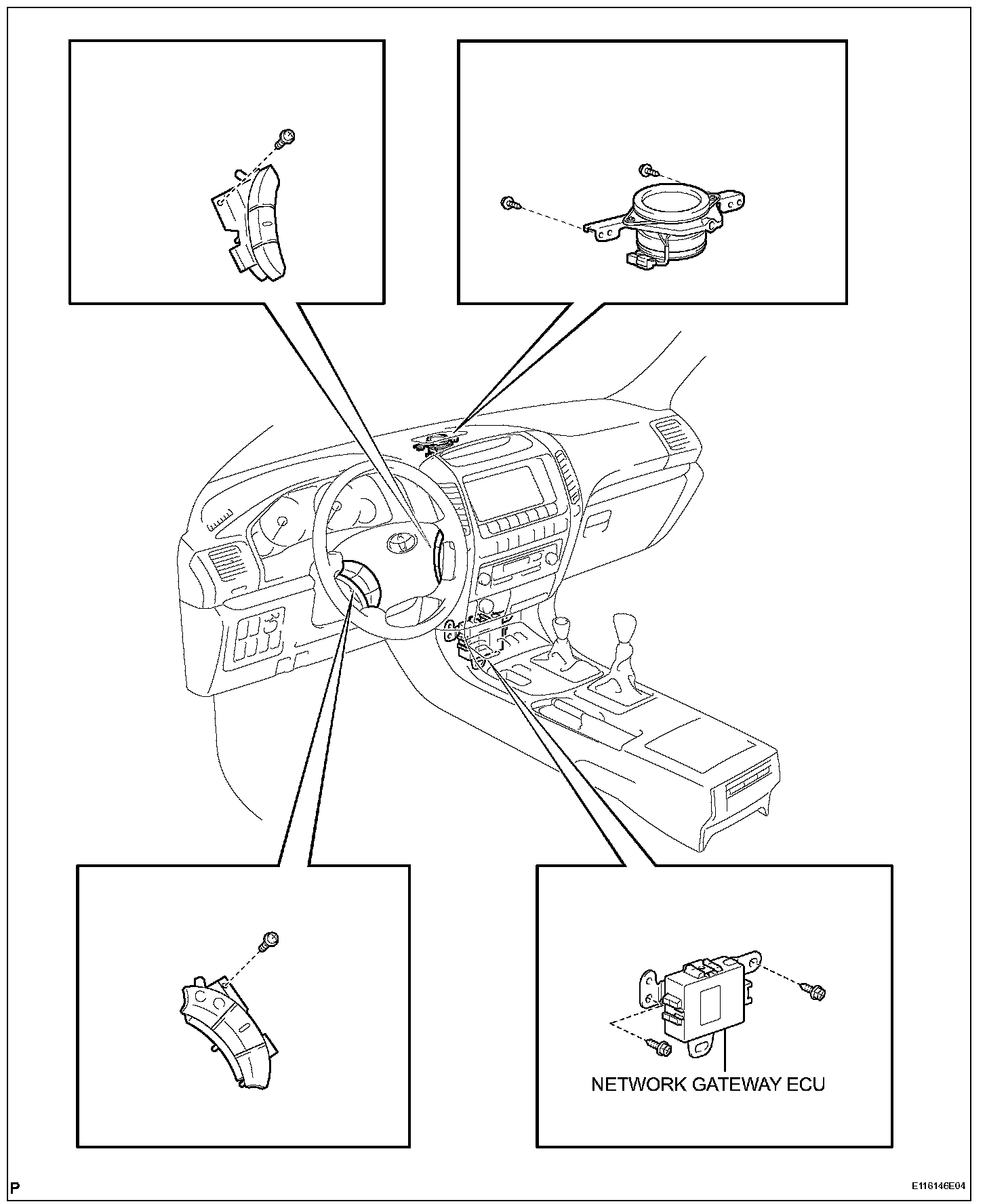

NETWORK GATEWAY ECU

REMOVAL

1. REMOVE LOWER CONSOLE BOX

HINT: Refer to the instructions for removal of the lower console box.

2. REMOVE NETWORK GATEWAY ECU
a. Disconnect the connector.




b. Remove the 2 screws and network gateway ECU.

INSTALLATION

1. INSTALL NETWORK GATEWAY ECU
2. INSTALL LOWER CONSOLE BOX

HINT: Refer to the instruction of the lower console box.
