Customize Parameters
- CUSTOMIZE PARAMETERS (INTELLIGENT TESTER)
- The following items can be customized.NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
Warning
CUSTOMIZE PARAMETERS - WARNINGDisplay (Item) Default Contents Setting FR BUZ RANGE (Front buzzer onset range) WIDE Function to set front buzzer activation range NARROW / WIDE RR BUZ RANGE (Rear buzzer onset range) WIDE Function to set rear buzzer activation range NARROW / WIDE KEEP SENSE BUZ (Keep sense status buzzer) ON Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds ON / OFF F & R BUZZER VOLM (Front & rear buzzer volume) M2 Function to change volume of buzzer L / M1 / M2 / M3 / H Sensor
CUSTOMIZE PARAMETERS - SENSORDisplay (Item) Default Contents Setting SENSOR COND / N (Sensor condition N range) OFF Function to make sensors available when shift position is N OFF / ON SONAR MODE (Sonar mode) STEER Function to change sonar mode NORMAL / STEER Display
CUSTOMIZE PARAMETERS - DISPLAYDisplay (Item) Default Contents Setting DISPLAY MODE (Display mode) GUIDE Function to change display mode ALL / GUIDE / UNDISP
- The following items can be customized.

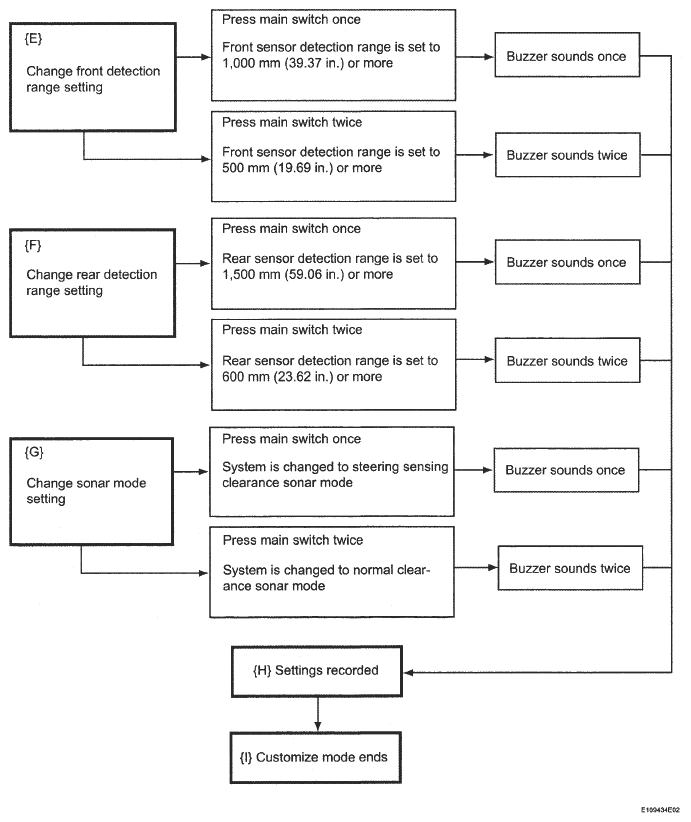

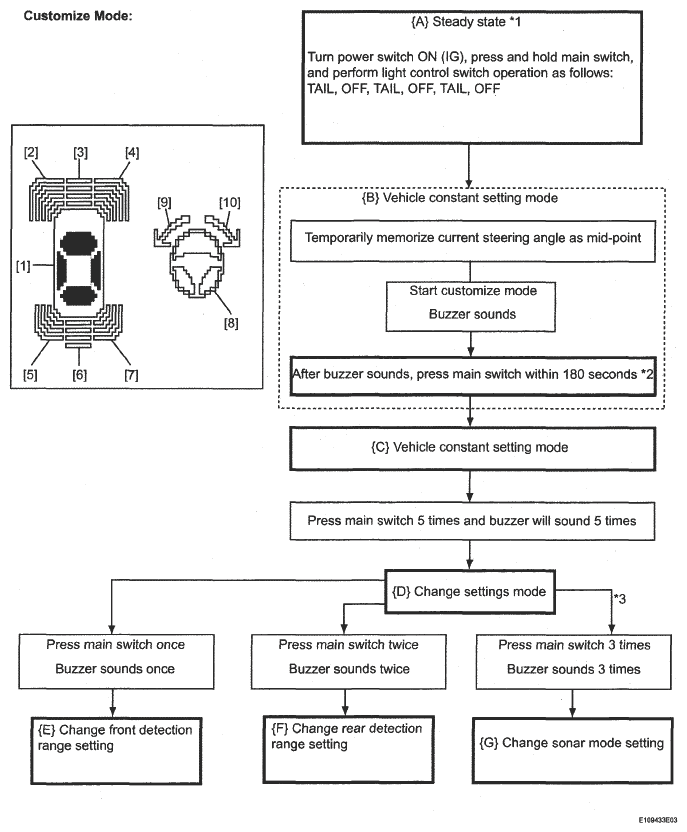

- CUSTOMIZE MODE (MANUAL OPERATION METHOD)
- The settings shown below can be changed using customize mode. Enter customize mode by pressing and holding the clearance sonar main switch, and setting the light control switch from TAIL to OFF 3 times.
Warning
CUSTOMIZE PARAMETERS - WARNINGItem Default Contents Setting Front detection range 1,000 mm (39.37 in.) Function to set a front detection range 500 mm (19.69 in.) /1,000 mm (39.37 in.) Rear detection range 1,500 mm (59.06 in.) Function to set a rear detection range 600 mm (23.62 in.) /1,500 mm (59.06 in.) Sensor

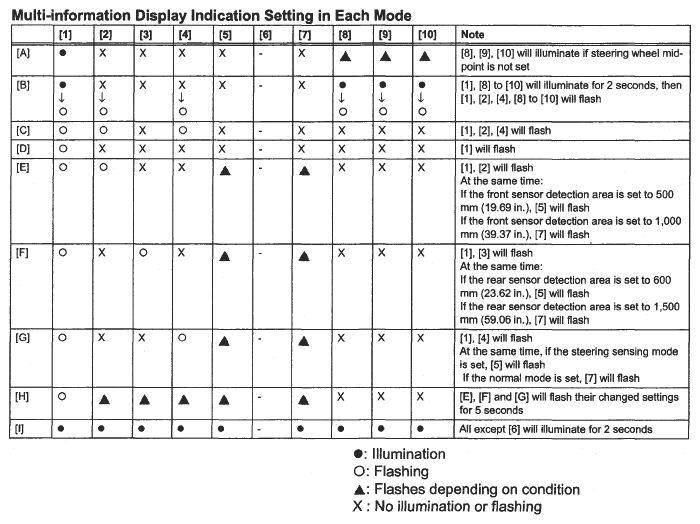

CUSTOMIZE PARAMETERS - SENSORItem Default Contents Setting Sonar mode Steering sensing mode Function to change sonar mode Normal clearance sonar mode / Steering sensing mode NOTE: Check that the steering wheel is centered and the tires are aligned straightforward before changing to customize mode.HINT:
- *1: Steering wheel is centered (tires aligned straightforward).
- *2: If 180 seconds pass, customize mode will end.
- *3: If a steering angle malfunction occurs, customize mode will proceed to {H} (customize mode ends).
- The settings shown below can be changed using customize mode. Enter customize mode by pressing and holding the clearance sonar main switch, and setting the light control switch from TAIL to OFF 3 times.
