Height Control Sensor Circuit: Wiring Diagram

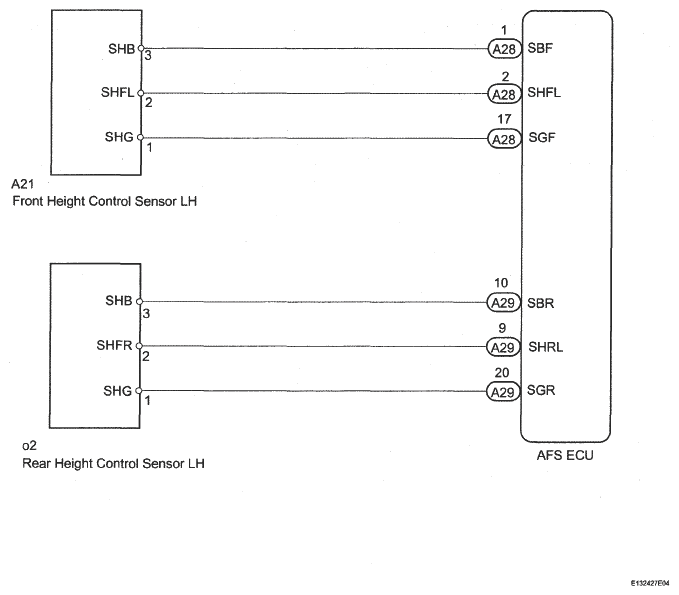

Fig 1: Height Control Sensor - Wiring Diagram
G05315664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
