System Diagram (2006/07-)

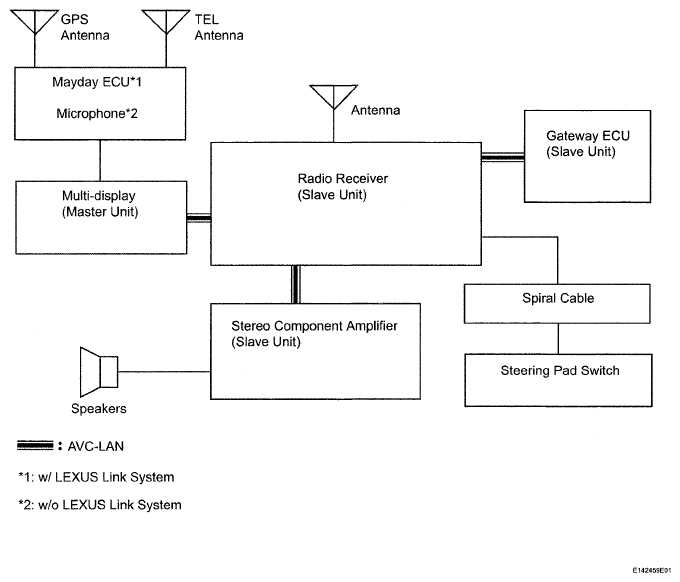

Fig 1: Audio And Visual System Diagram (2006/07)
G05311189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
