Amplifier Antenna: Components
Fig 1: Amplifier Antenna Replacement Components With Torque Specifications (1 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

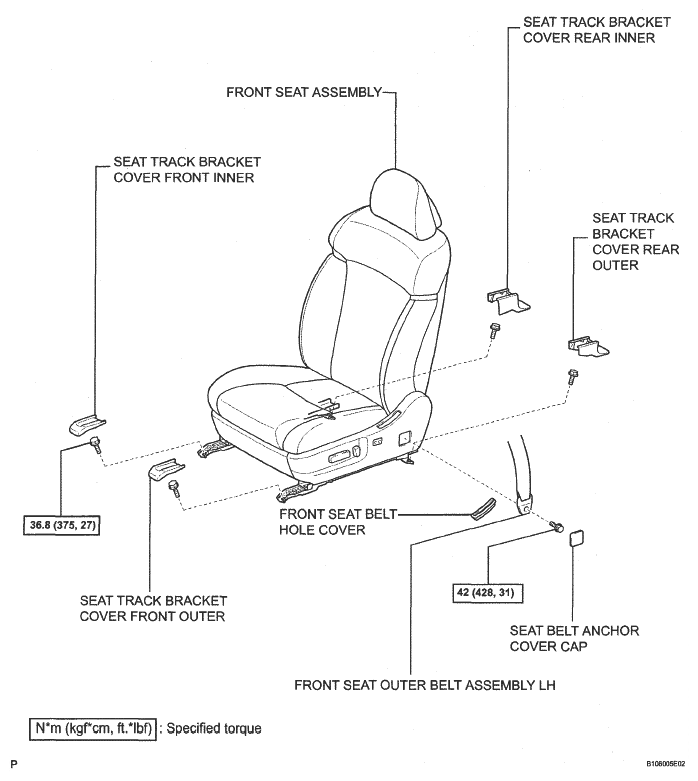

Fig 2: Amplifier Antenna Replacement Components With Torque Specifications (2 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

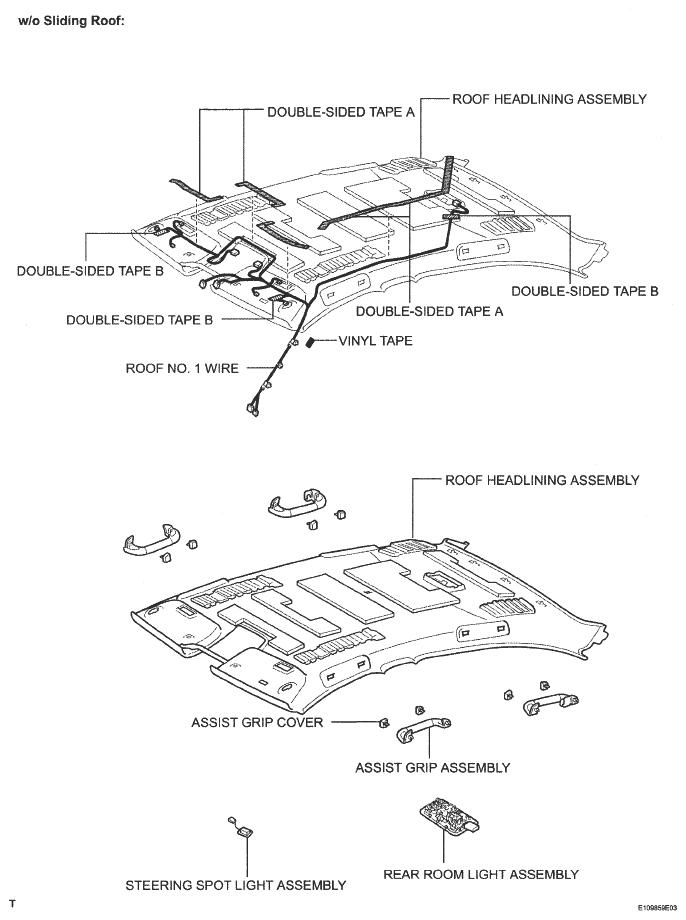

Fig 3: Identifying Amplifier Antenna Components (3 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Amplifier Antenna Components (4 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Amplifier Antenna Components (5 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying Amplifier Antenna Components (6 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Identifying Amplifier Antenna Components (7 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Amplifier Antenna Replacement Components With Torque Specifications (8 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
