Inspection Procedure

  1. CHECK WIRE (DLC3 - HYBRID VEHICLE CONTROL ECU AND BODY HARNESS GROUND)
    1. Disconnect the K16 DLC3 connector.
    2. Disconnect the A54 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      K16-13(TC) - A54-63(TC) Below 1 Ω
      K16-4 (CG) - Body ground Below 1 Ω
      K16-13 (TC) - Body ground 10 kΩ or higher

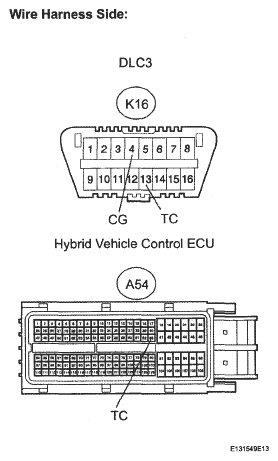

      Fig 1: Identifying K16 DLC3 And A54 ECU Connector Terminals
      G05306695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
