System Diagram

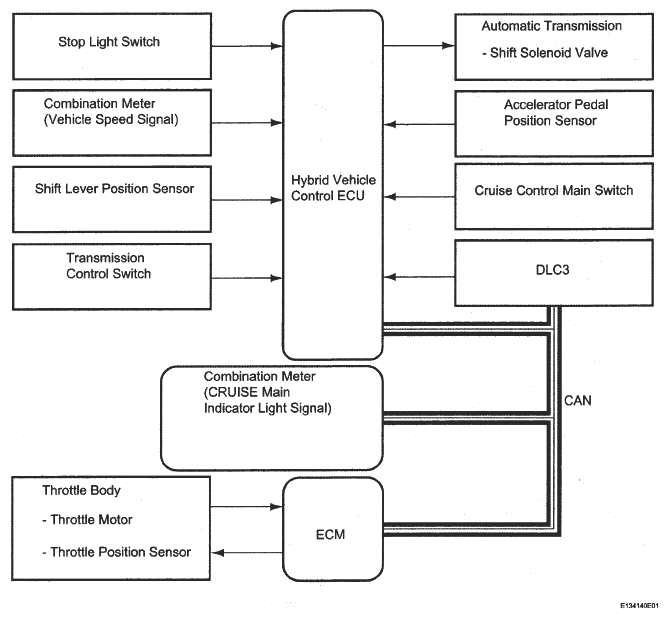

Fig 1: Identifying Cruise Control System Diagram

G05306661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Hybrid vehicle control ECU	ECM	Throttle motor operation signal	CAN
ECM	Hybrid vehicle control ECU	Throttle position sensor signal	CAN
Hybrid vehicle control ECU	Combination meter	CRUISE main indicator light signal	CAN
