Inspection Procedure
- INSPECT FRONT HEIGHT CONTROL SENSOR LH
- Connect the 3 dry cell batteries (1.5 V) in series.
- Remove the front height control sensor LH.
- Connect the positive (+) lead from the battery to terminal 3 (SHB) and the negative (-) lead to terminal 1 (SHG).
- Measure the voltage between terminals 2 (SHFL) and 1 (SHG) while slowly moving the link up and down.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition 2 (SHFL) -1 (SHG) +45° (High) Approx 4.5 V 2 (SHFL) -1 (SHG) 0° (Normal) Approx 2.5 V 2 (SHFL) -1 (SHG) -45° (Low) Approx 0.5 V
NG: REPLACE FRONT HEIGHT CONTROL SENSOR LH
OK: GO TO Next Step
- INSPECT REAR HEIGHT CONTROL SENSOR LH
- Connect the 3 dry cell batteries (1.5 V) in series.
- Remove the rear height control sensor LH.
- Connect the positive (+) lead from the battery to terminal 3 (SHB) and the negative (-) lead to terminal 1 (SHG).
- Measure the voltage between terminals 2 (SHRL) and 1 (SHG) while slowly moving the link up and down.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition 2 (SHRL) -1 (SHG) +45° (High) Approx 4.5 V 2 (SHRL) - 1 (SHG) 0° (Normal) Approx 2.5 V 2 (SHRL) -1 (SHG) -45° (Low) Approx 0.5 V
NG: REPLACE REAR HEIGHT CONTROL SENSOR LH
OK: GO TO Next Step
- CHECK WIRE HARNESS (ECU - SENSOR)

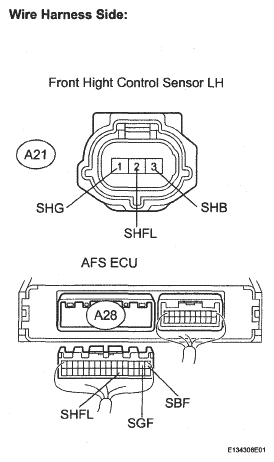

- Check the wire harness between the AFS ECU and front height control sensor LH.
- Disconnect the A28 ECU connector.
- Disconnect the A21 sensor connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition A28-17 (SGF) - A21-1 (SHG) Below 1 Ω A28-2 (SHFL) - A21-2 (SHFL) Below 1 Ω A28-1 (SBF) - A21-3 (SHB) Below 1 Ω A28-17 (SGF) or A21-1 (SHG) - Body ground 10 kΩ or higher A28-2 (SHFL) or A21-2 (SHFL) - Body ground 10 kΩ or higher A28-1 (SBF) or A21-3 (SHB) - Body ground 10 kΩ or higher

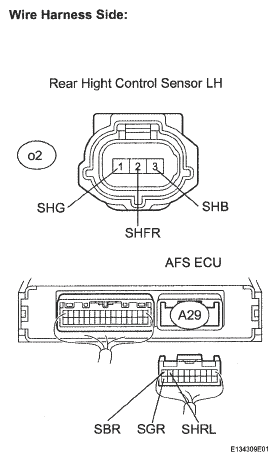

- Check the wire harness between the AFS ECU and rear height control sensor LH.
- Disconnect the A29 ECU connector.
- Disconnect the o2 sensor connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition A29-20 (SGR) - o2-1 (SHG) Below 1 Ω A29-9 (SHRL) - o2-2 (SHRL) Below 1 Ω A29-10 (SBR) - o2-3 (SHB) Below 1 Ω A29-20 (SGR) or o2-1 (SHG) - Body ground 10 kΩ or higher A29-9 (SHRL) or o2-2 (SHRL) - Body ground 10 kΩ or higher A29-10 (SBR) or o2-3 (SHB) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
