Height Control Sensor: Components

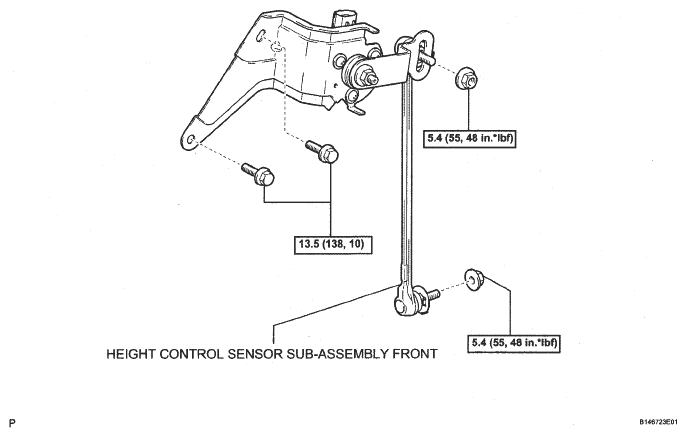

Fig 1: Height Control Sensor Replacement Components With Torque Specifications (1 Of 2)
G05315757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

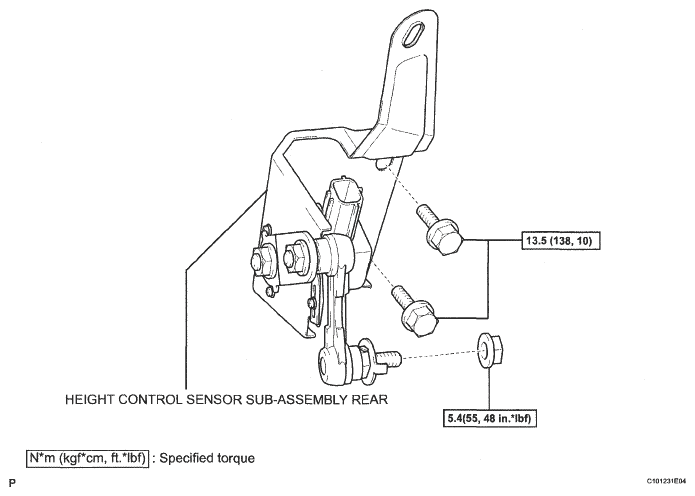

Fig 2: Height Control Sensor Replacement Components With Torque Specifications (2 Of 2)
G05315758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
