Blower Unit: Components

Fig 1: Blower Unit Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

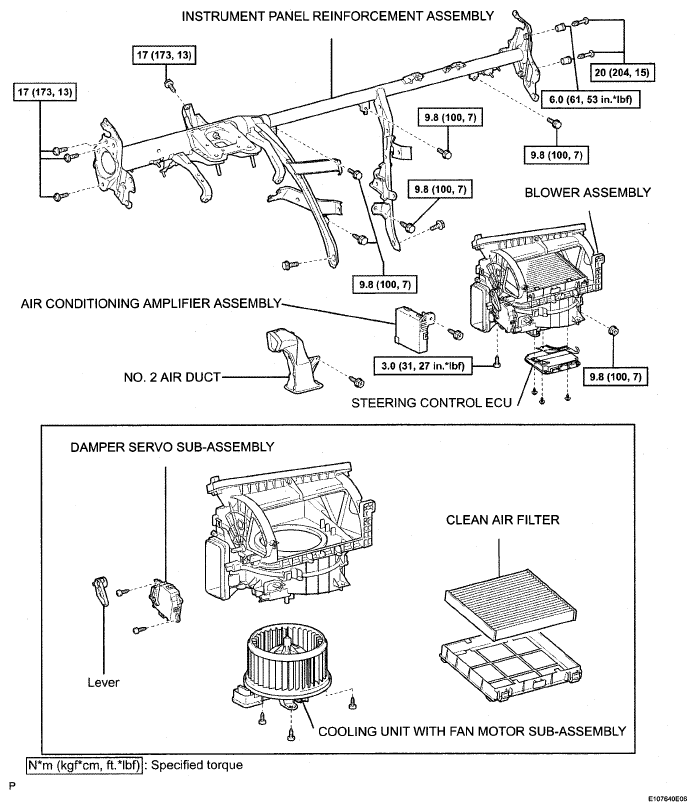

Fig 2: Blower Unit Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Blower Unit Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Blower Unit Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Blower Unit Components With Torque Specifications (5 Of 7)

Fig 6: Blower Unit Components With Torque Specifications (6 Of 7)

Fig 7: Blower Unit Components With Torque Specification s(7 Of 7)
