Air Conditioning Unit: Components

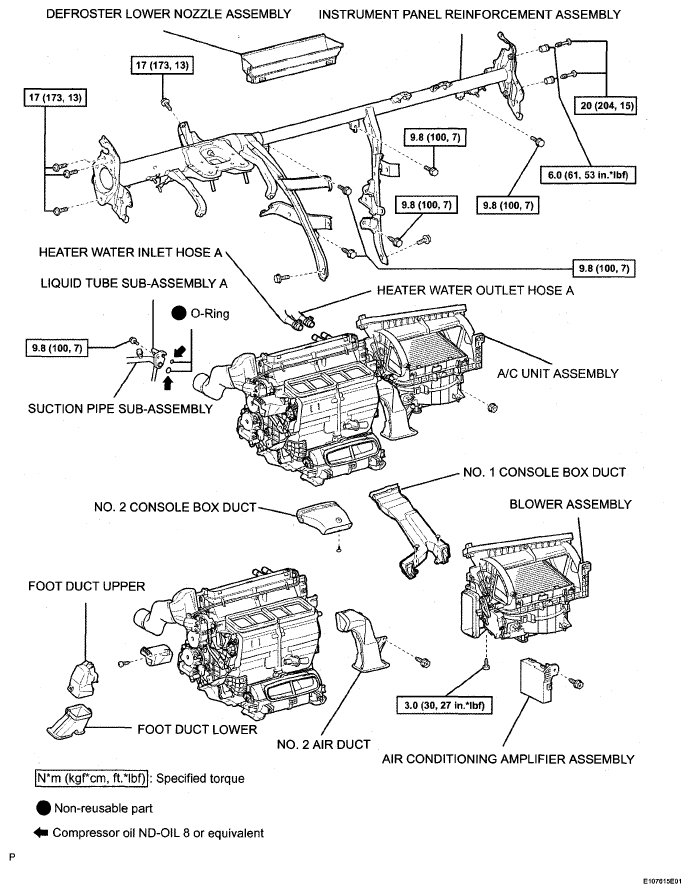

Fig 1: Blower Unit Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Air Conditioning Unit Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

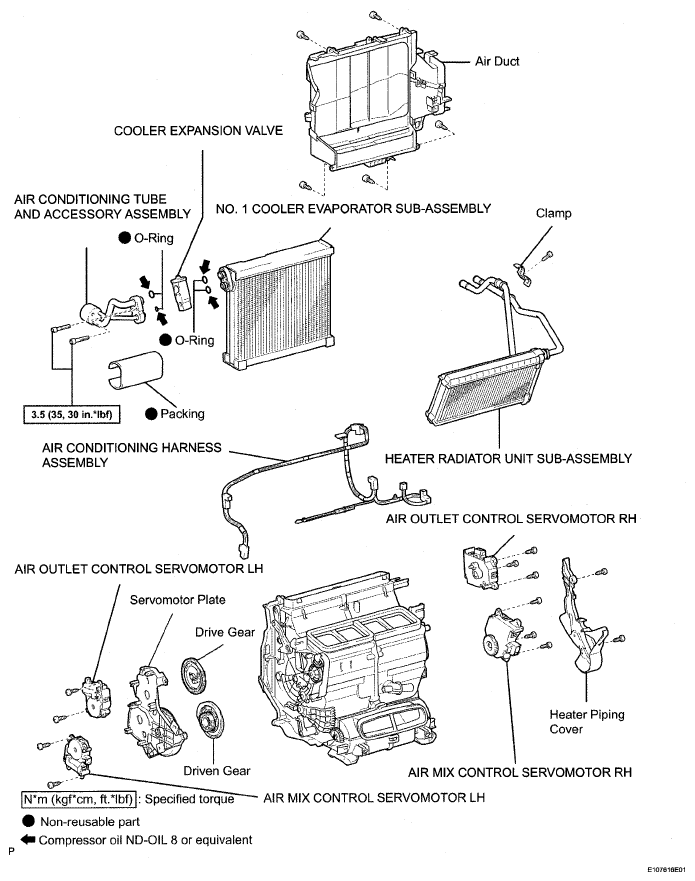

Fig 3: Identifying Air Conditioning Unit Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

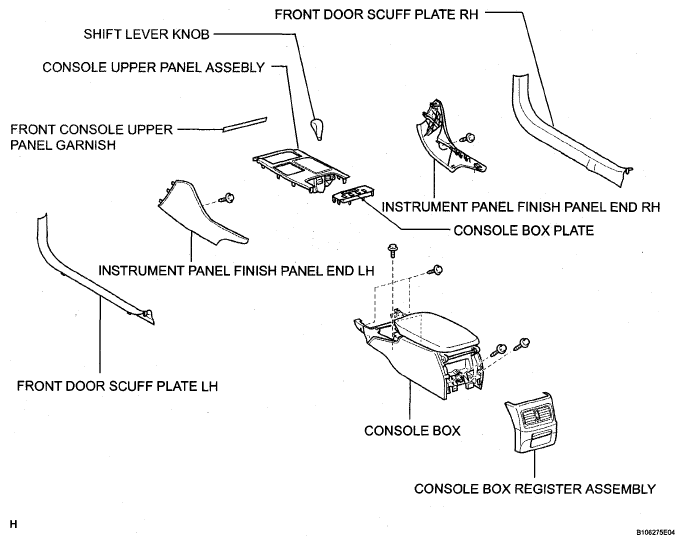

Fig 4: Identifying Air Conditioning Unit Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

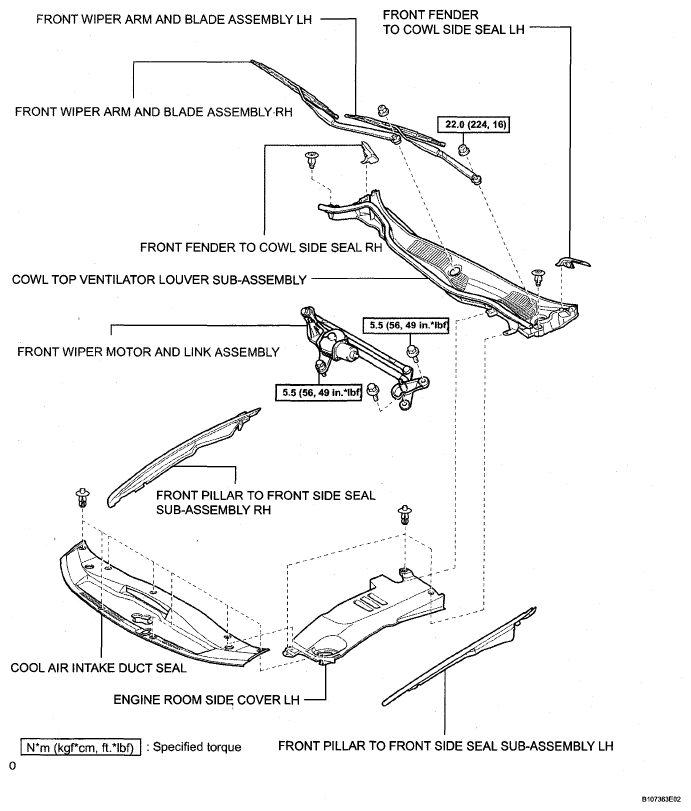

Fig 5: Blower Unit Components With Torque Specifications (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Blower Unit Components With Torque Specifications (6 Of 7)

Fig 7: Air Conditioning Unit Replacement Components With Torque Specifications (7 Of 8)

Fig 8: Air Conditioning Unit Replacement Components With Torque Specifications (8 Of 8)
