Navigation, Parking Assist (Rear View Monitor) and Audio System: Notes

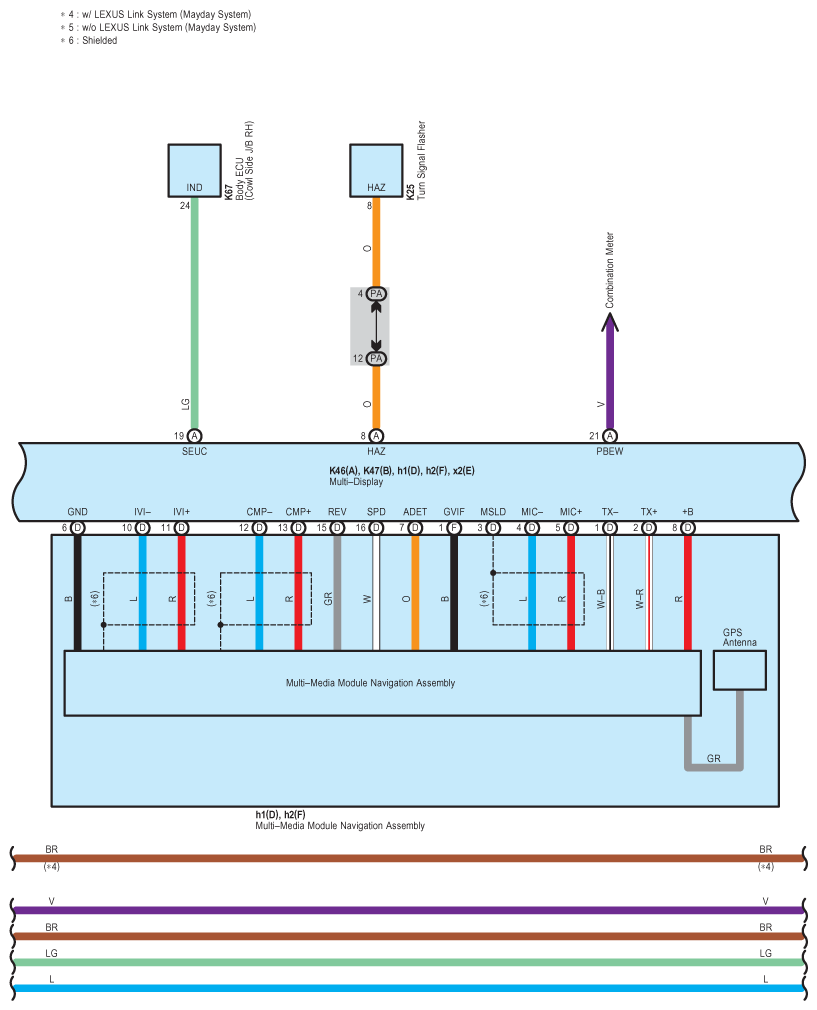

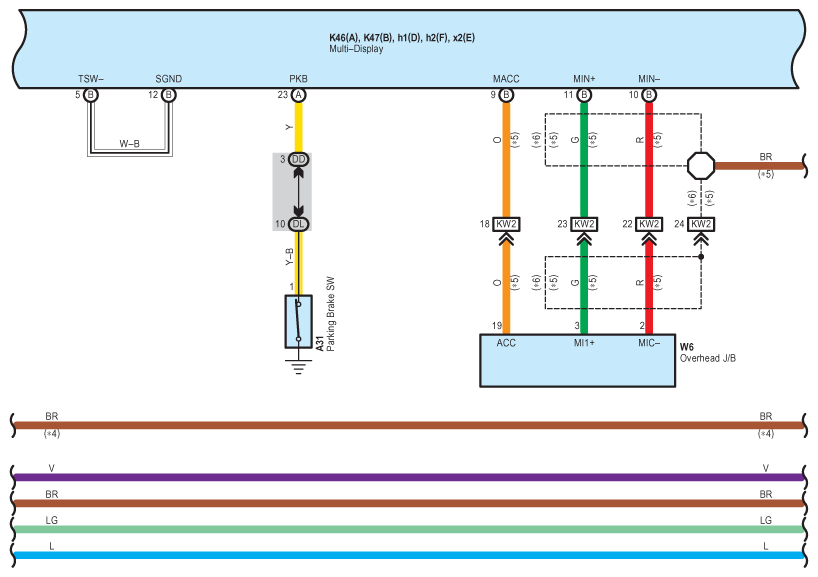

Fig 1: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (1 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

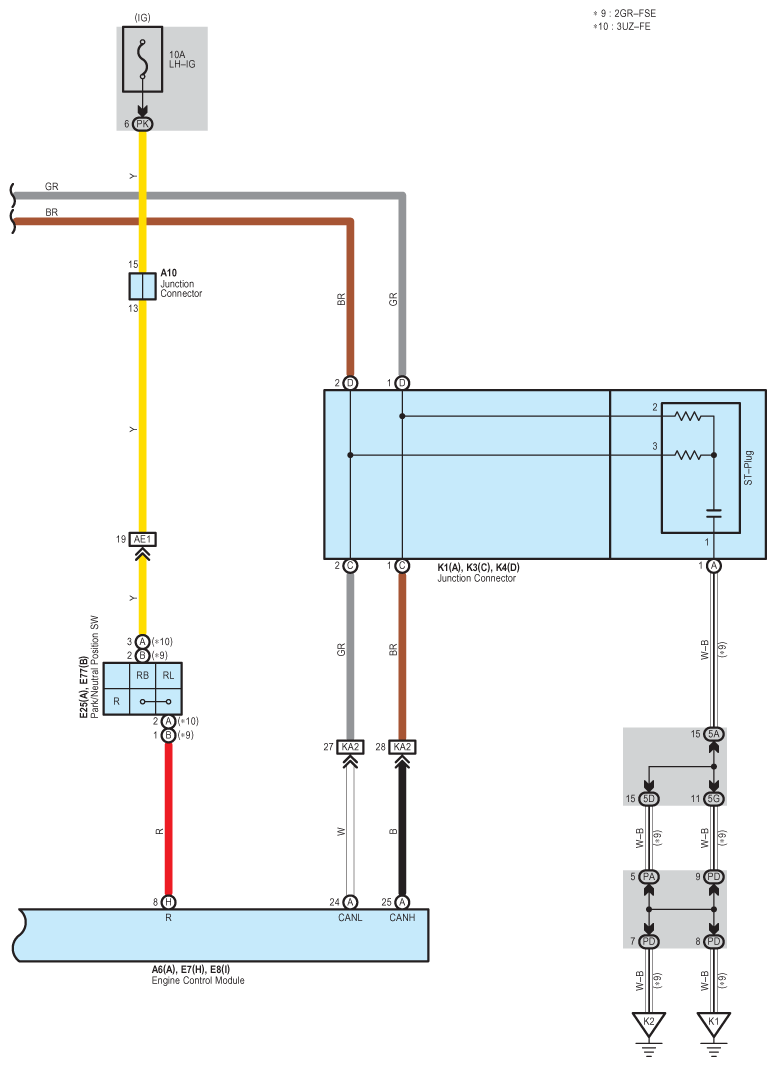

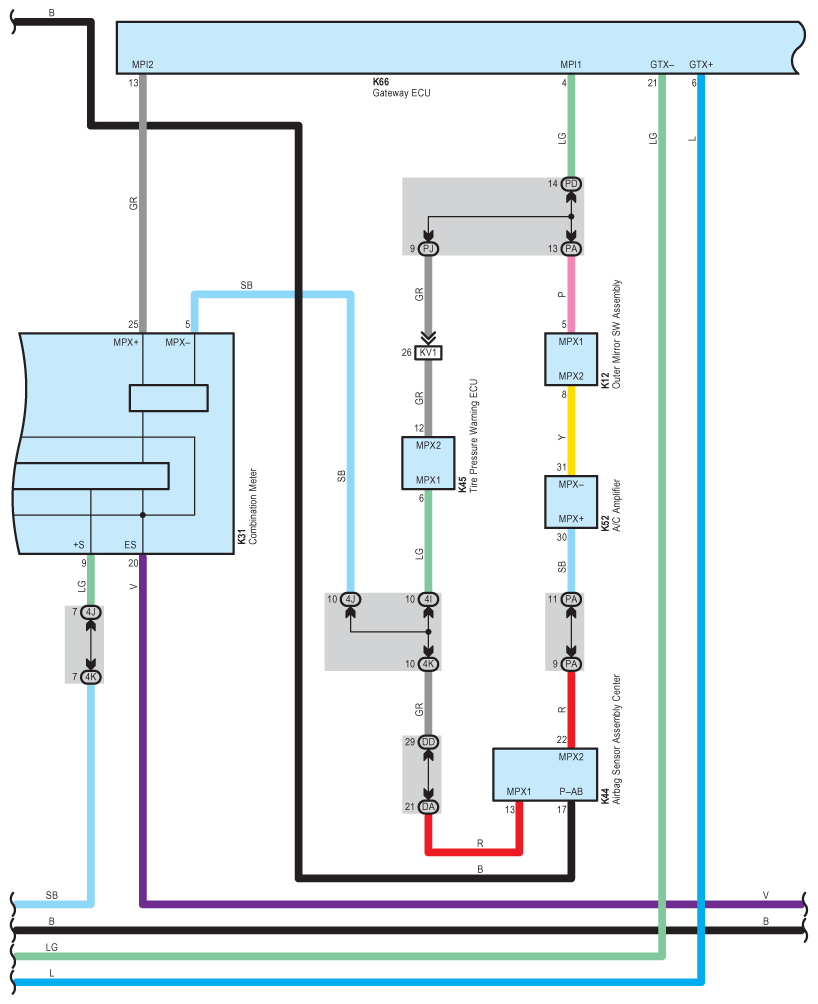

Fig 2: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (2 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

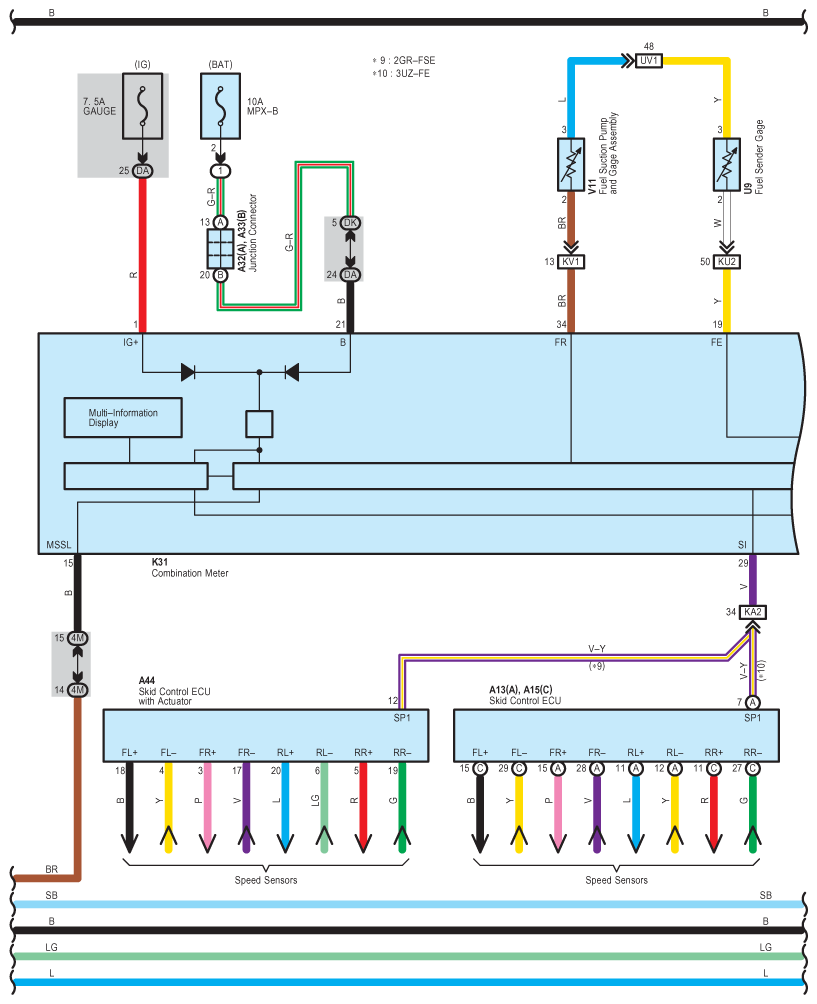

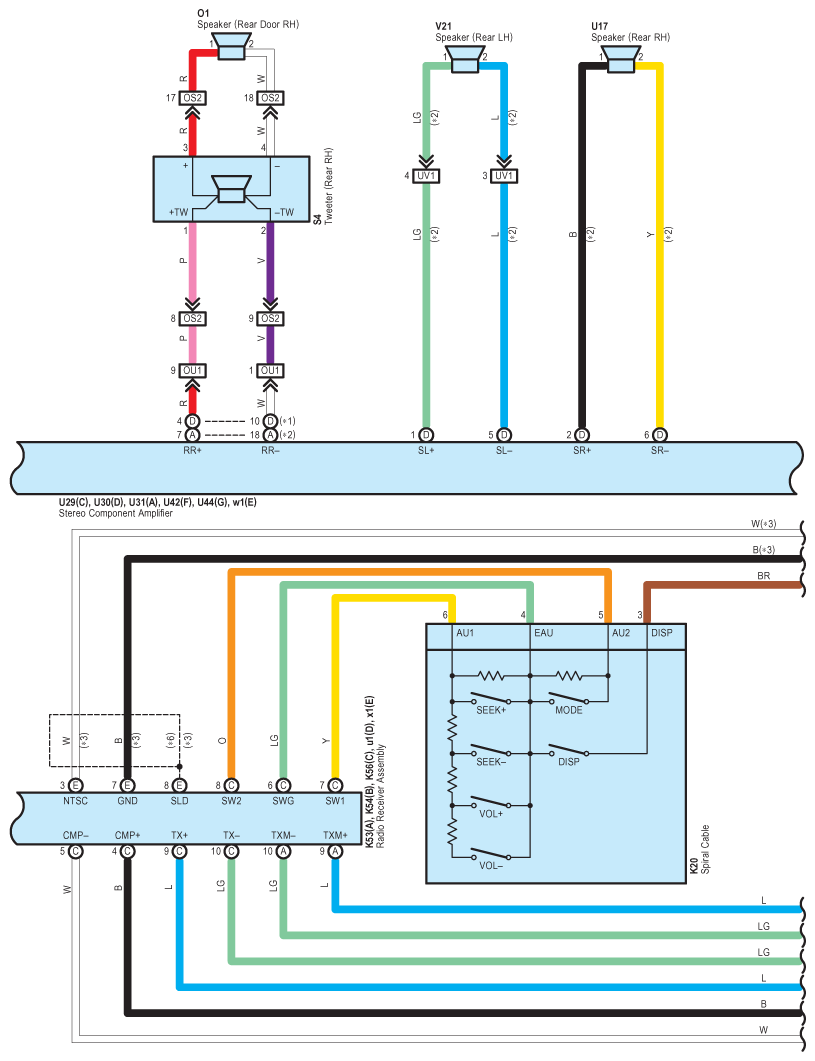

Fig 3: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (3 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

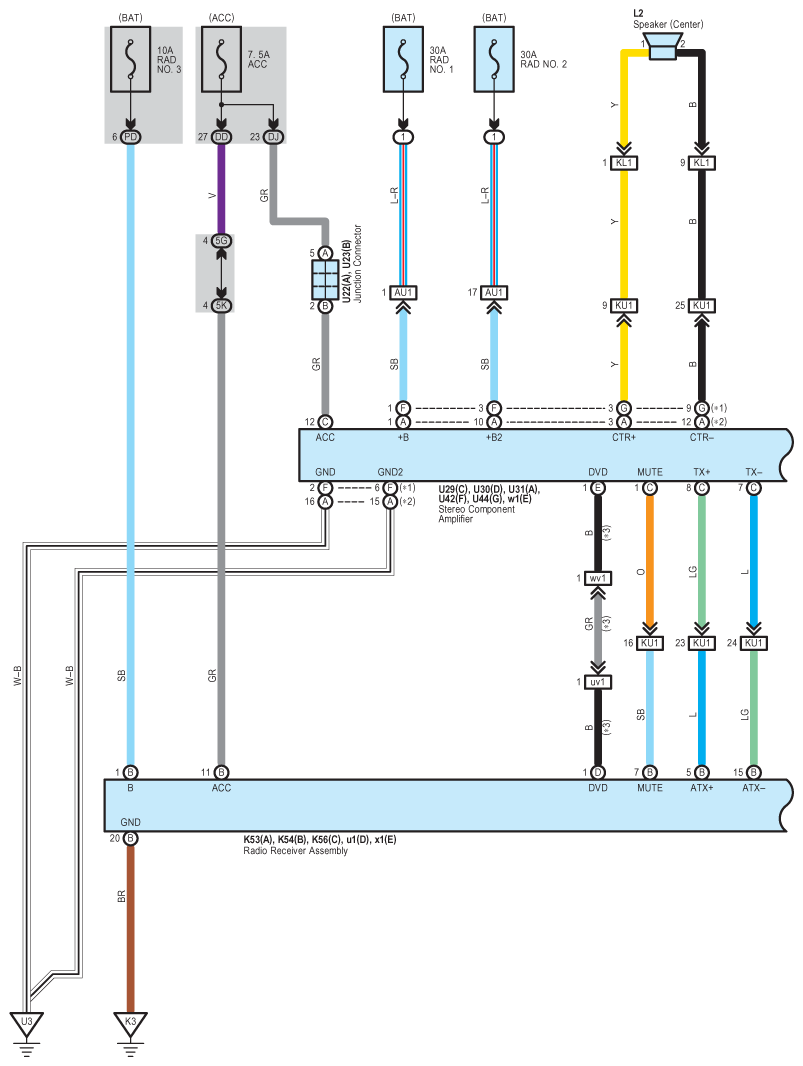

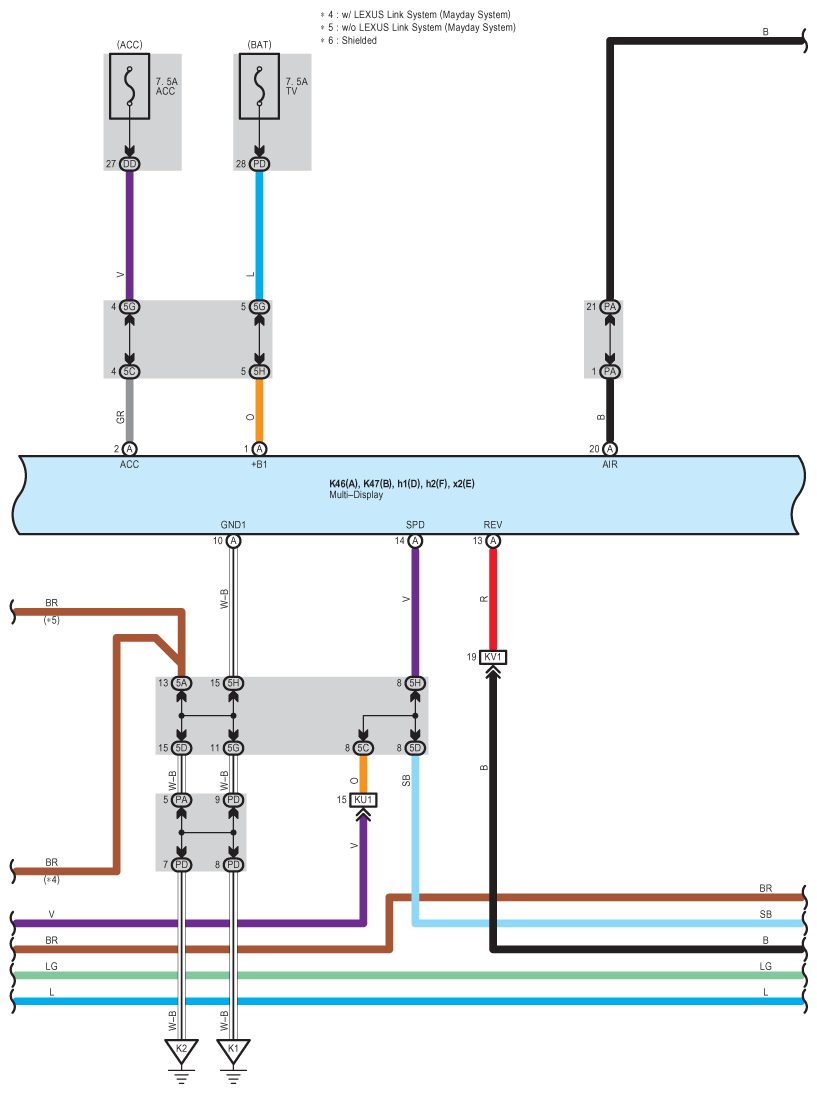

Fig 4: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (4 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

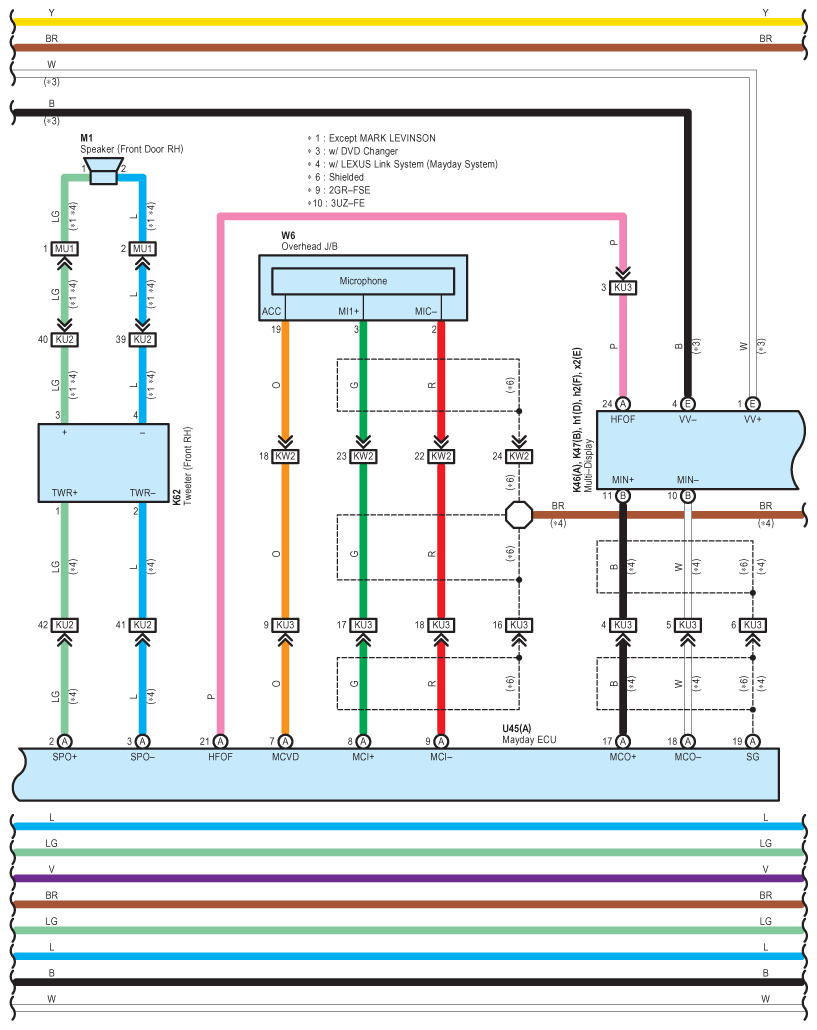

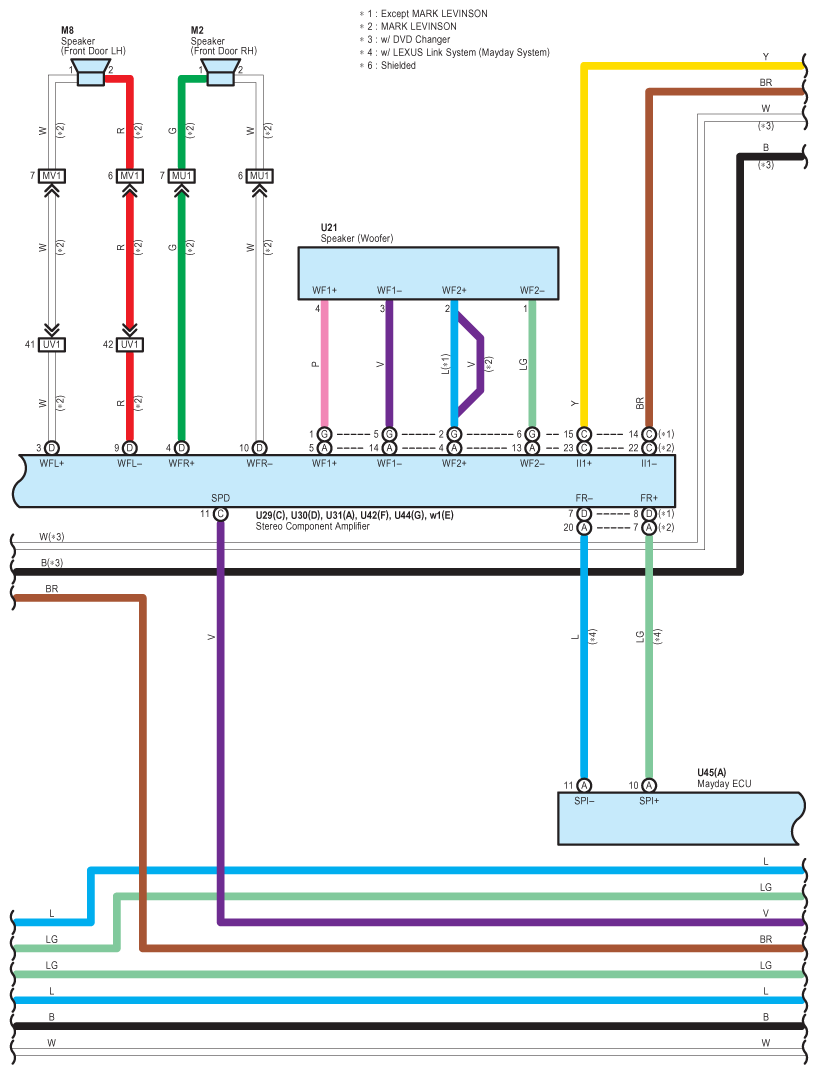

Fig 5: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (5 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

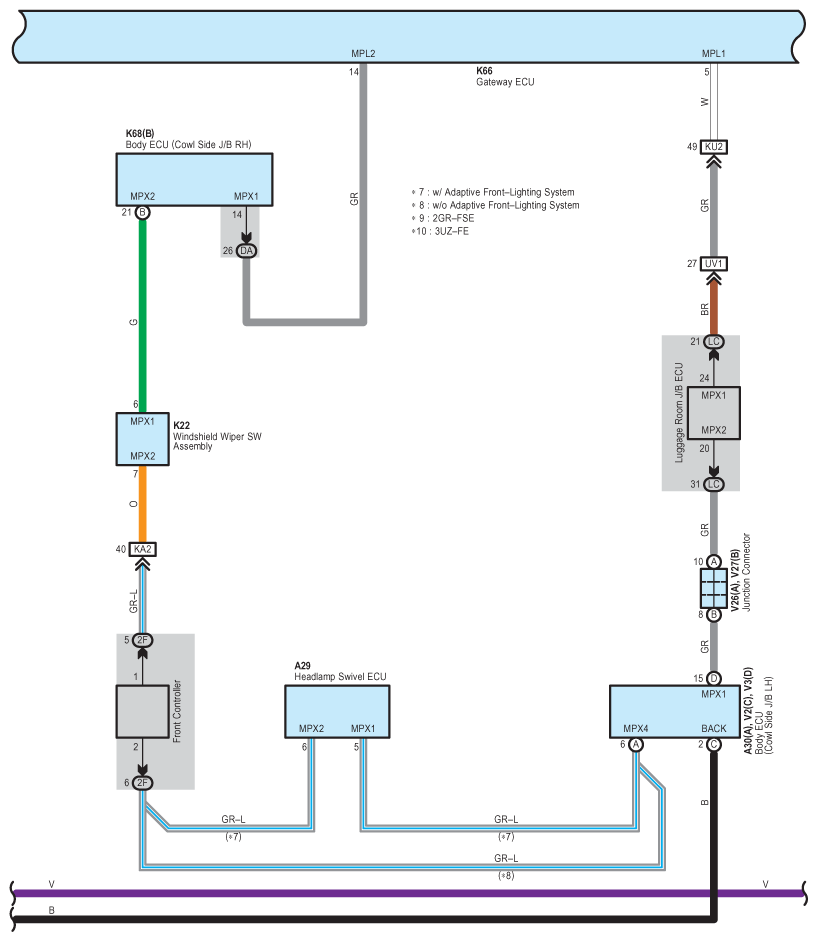

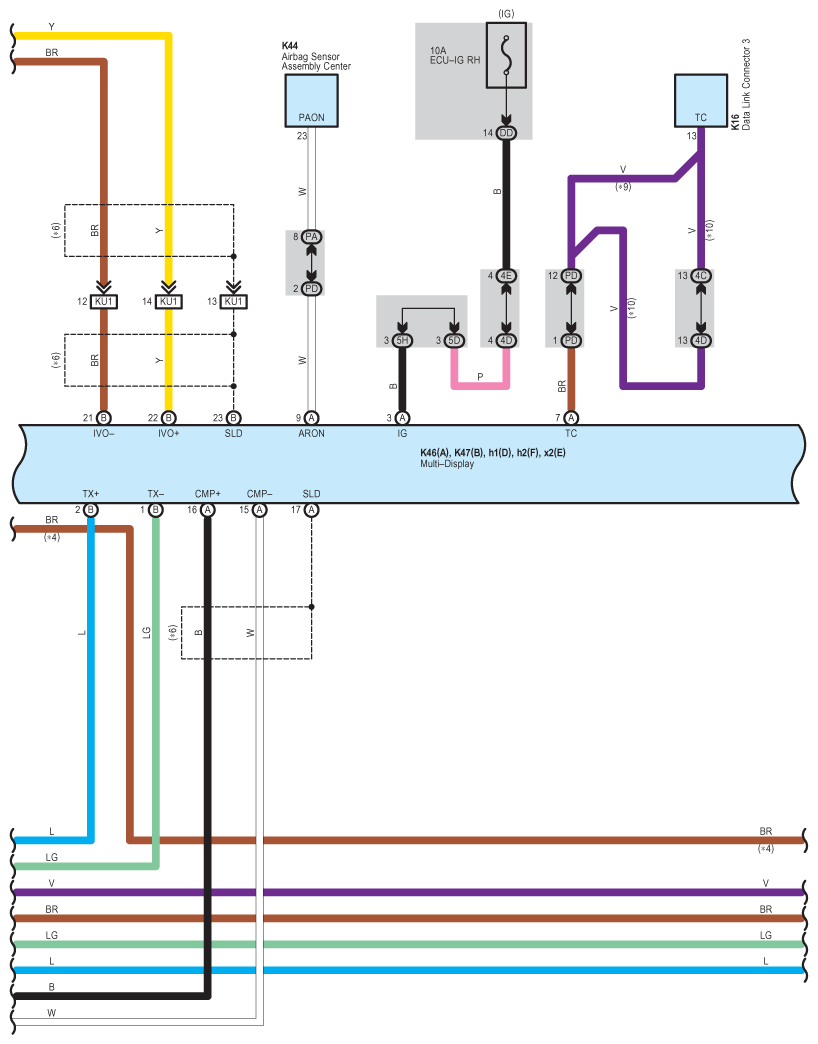

Fig 6: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (6 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

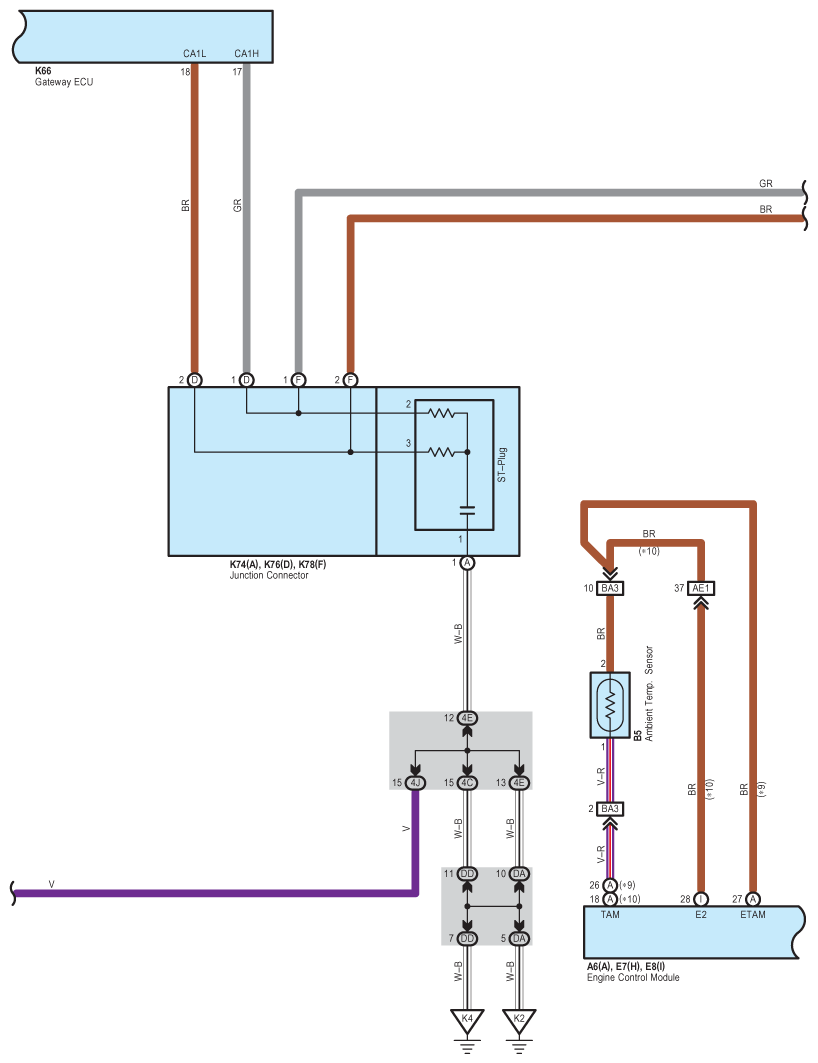

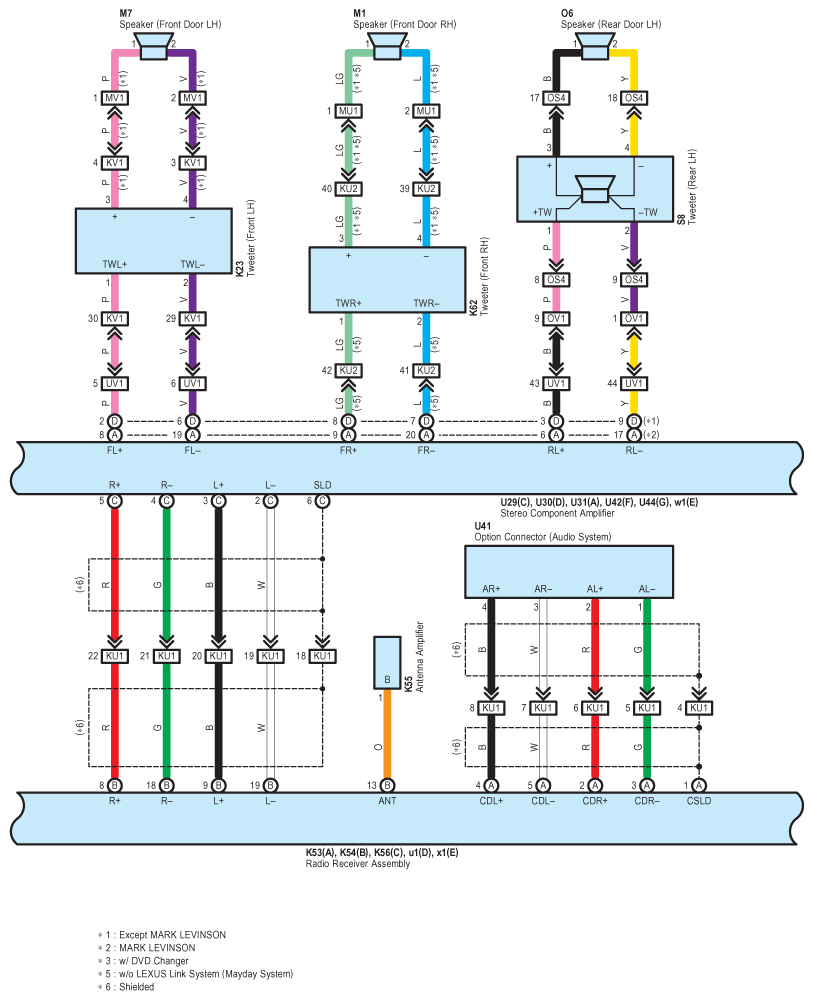

Fig 7: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (7 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

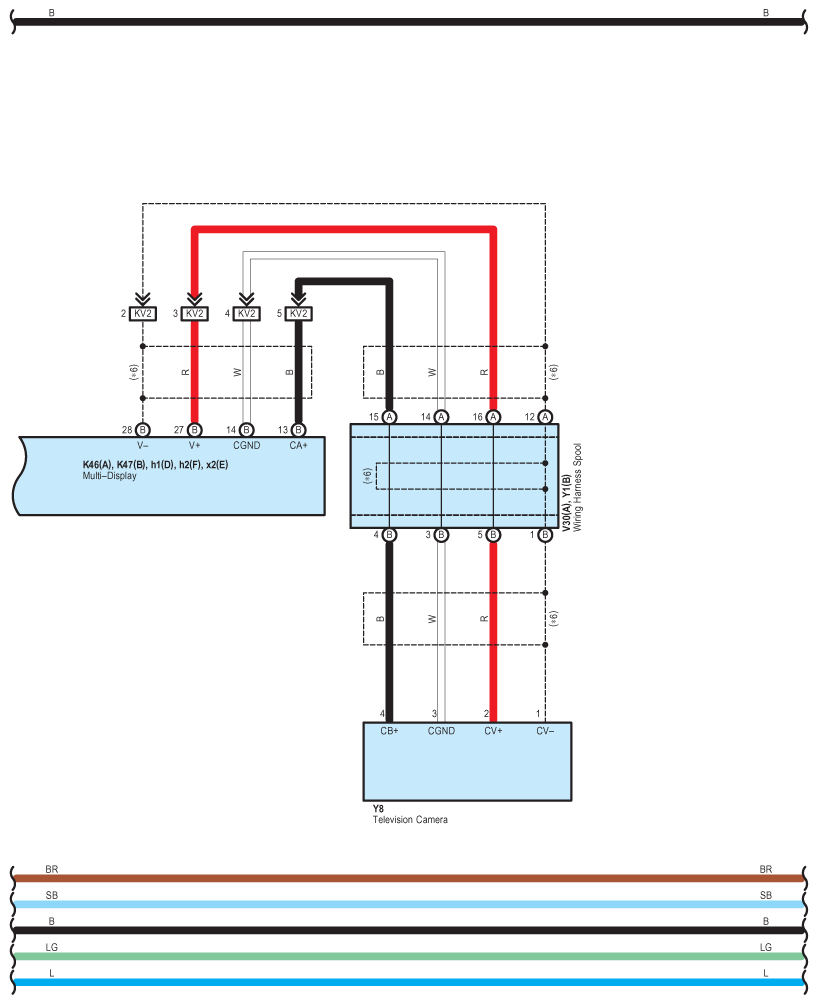

Fig 8: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (8 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (9 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (10 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (11 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (12 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (13 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (14 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (15 Of 15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
