Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH: Wiring Diagram

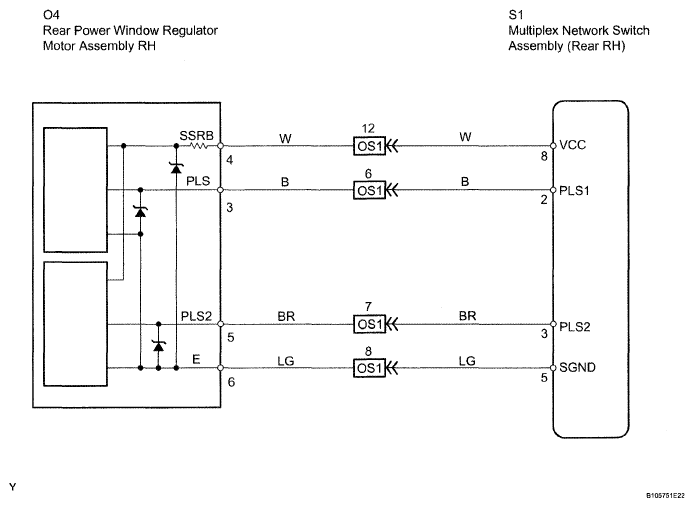

Fig 1: Rear Power Window RH Auto Up / Down Function Does Not Operate With Rear Power Window Switch RH - Wiring Diagram
G05300201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
