Fuse Block: Locations

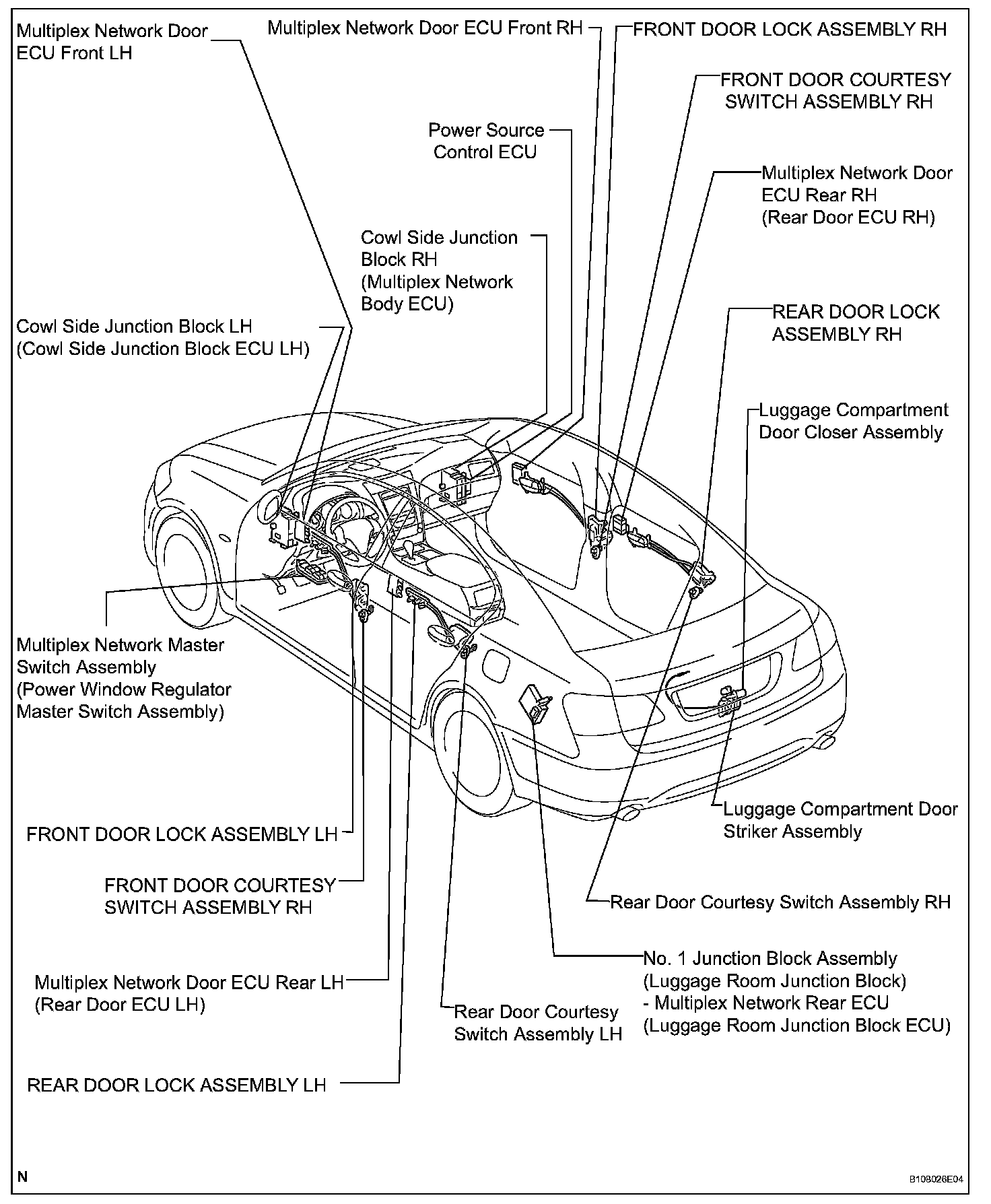

Smart Access System With Push-Button Start:

Engine Compartment:

Instrument Panel:

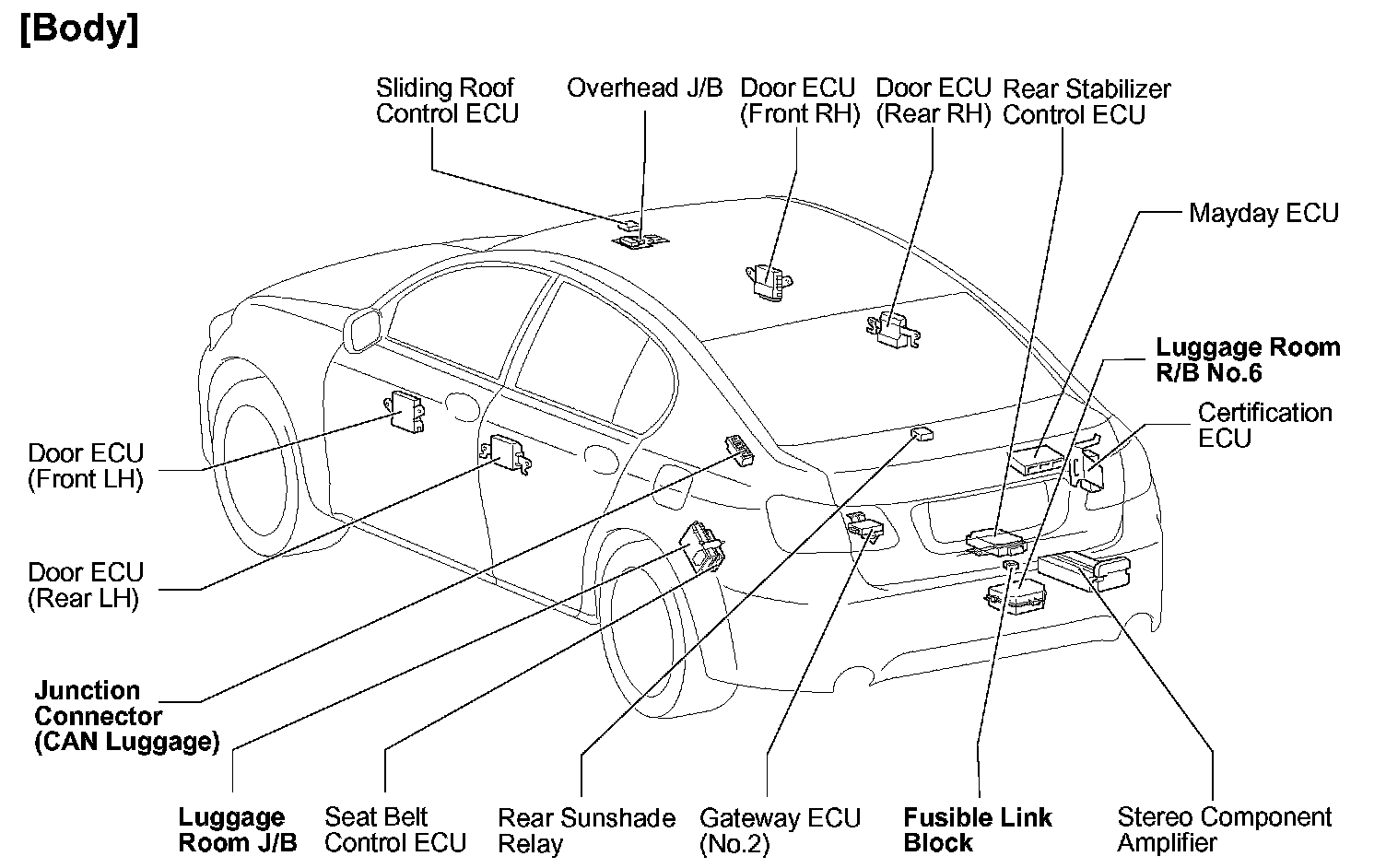

Body:
