Suspension Control Module

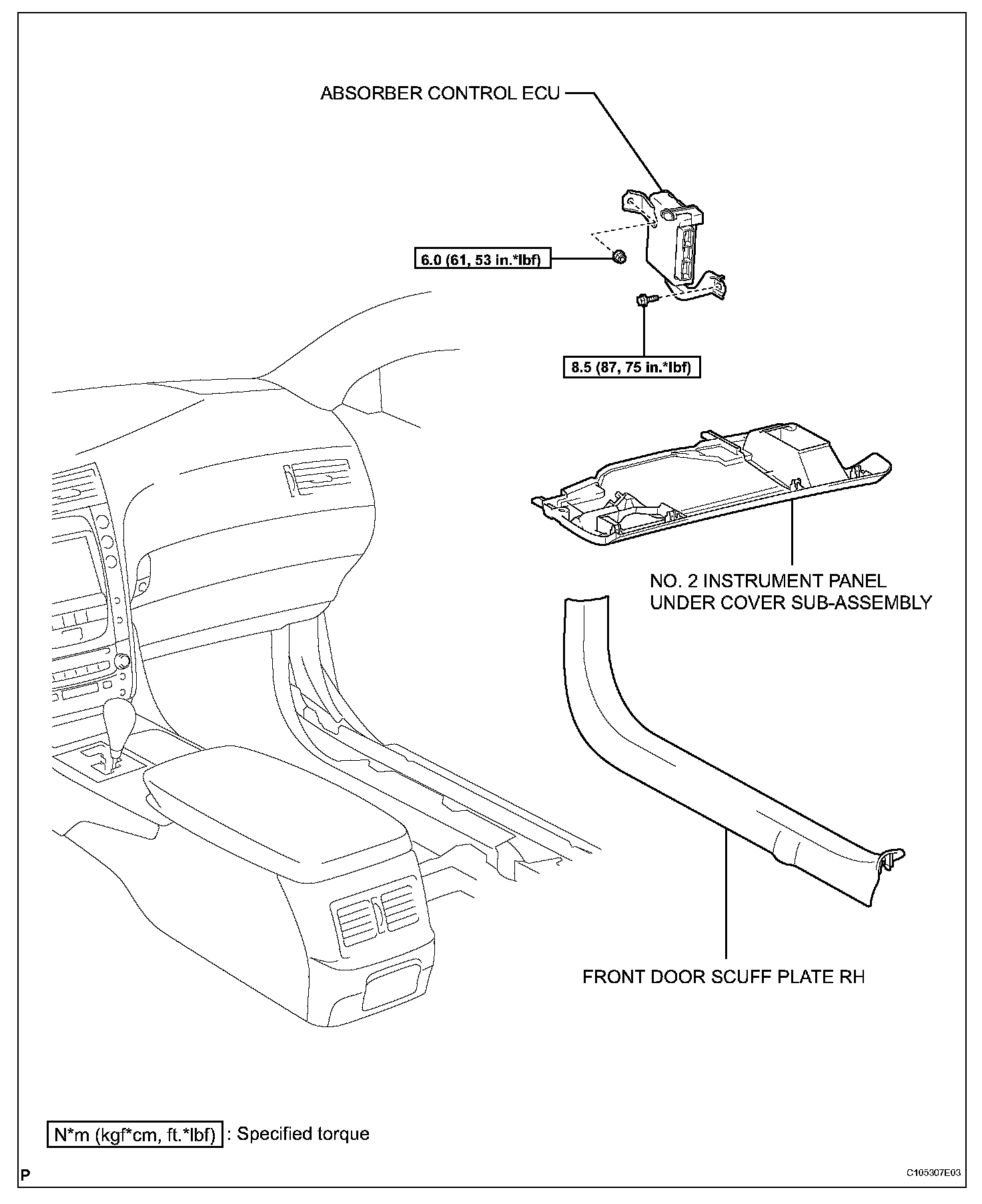

Absorber Control ECU:

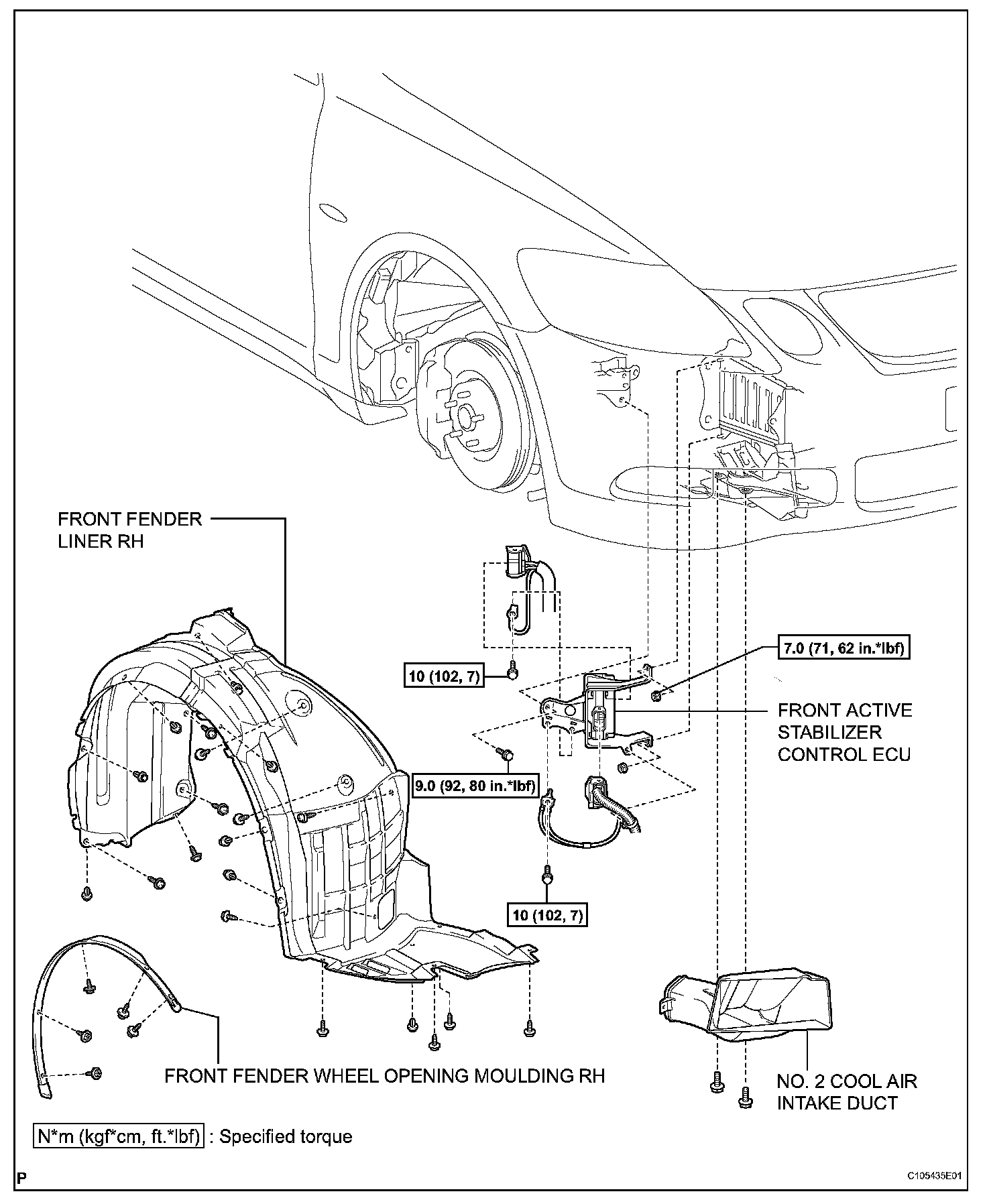

Front Active Stabilizer Control ECU:

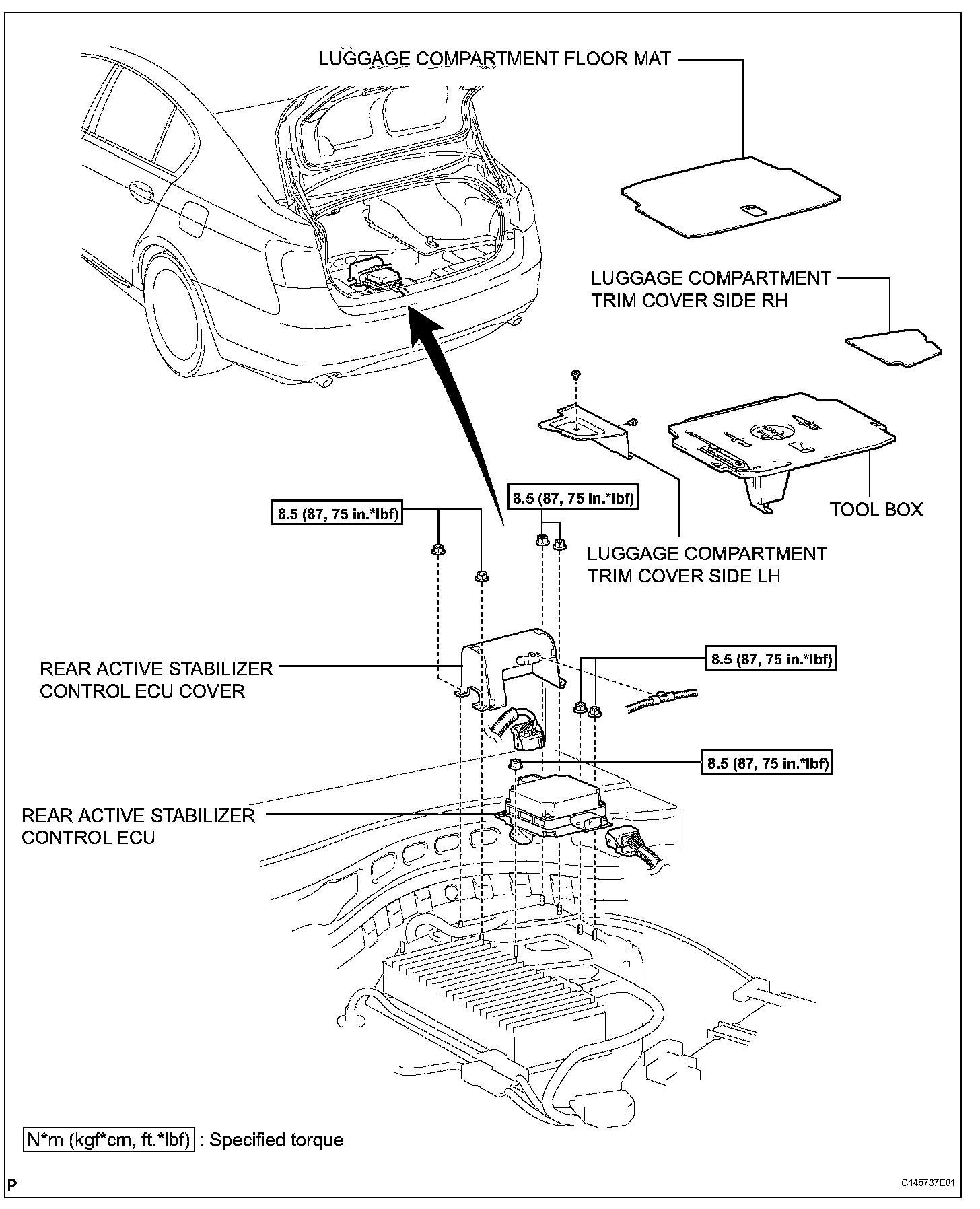

Rear Active Stabilizer Control ECU:
