Fuse Block

Engine Room R/B No.1, J/B No.1 - Near The Battery:

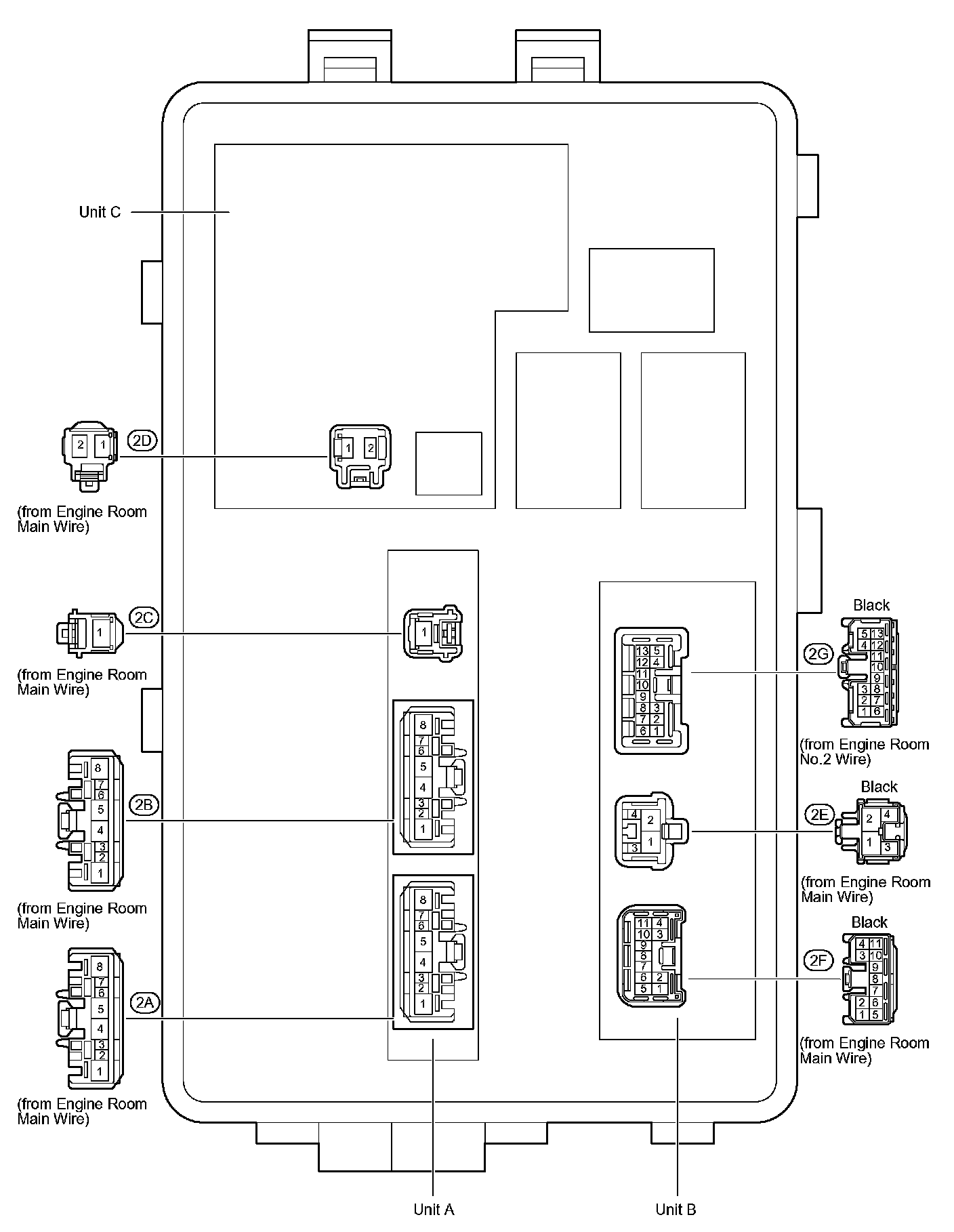

Engine Room R/B No.2, J/B No.2 - Engine Compartment Left:

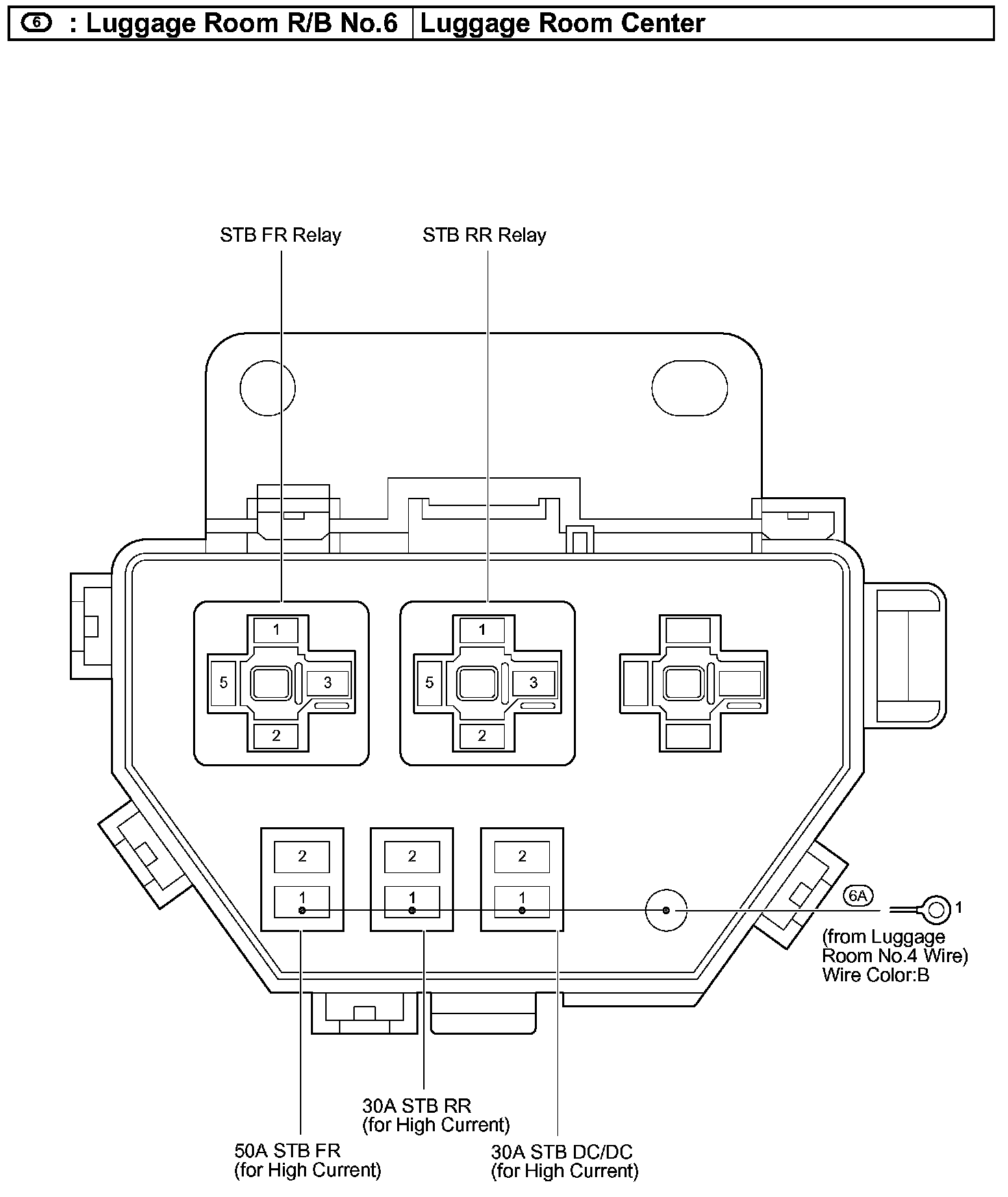

Luggage Room R/B No.6 - Luggage Room Center:

Fusible Link Block - Luggage Room Center:

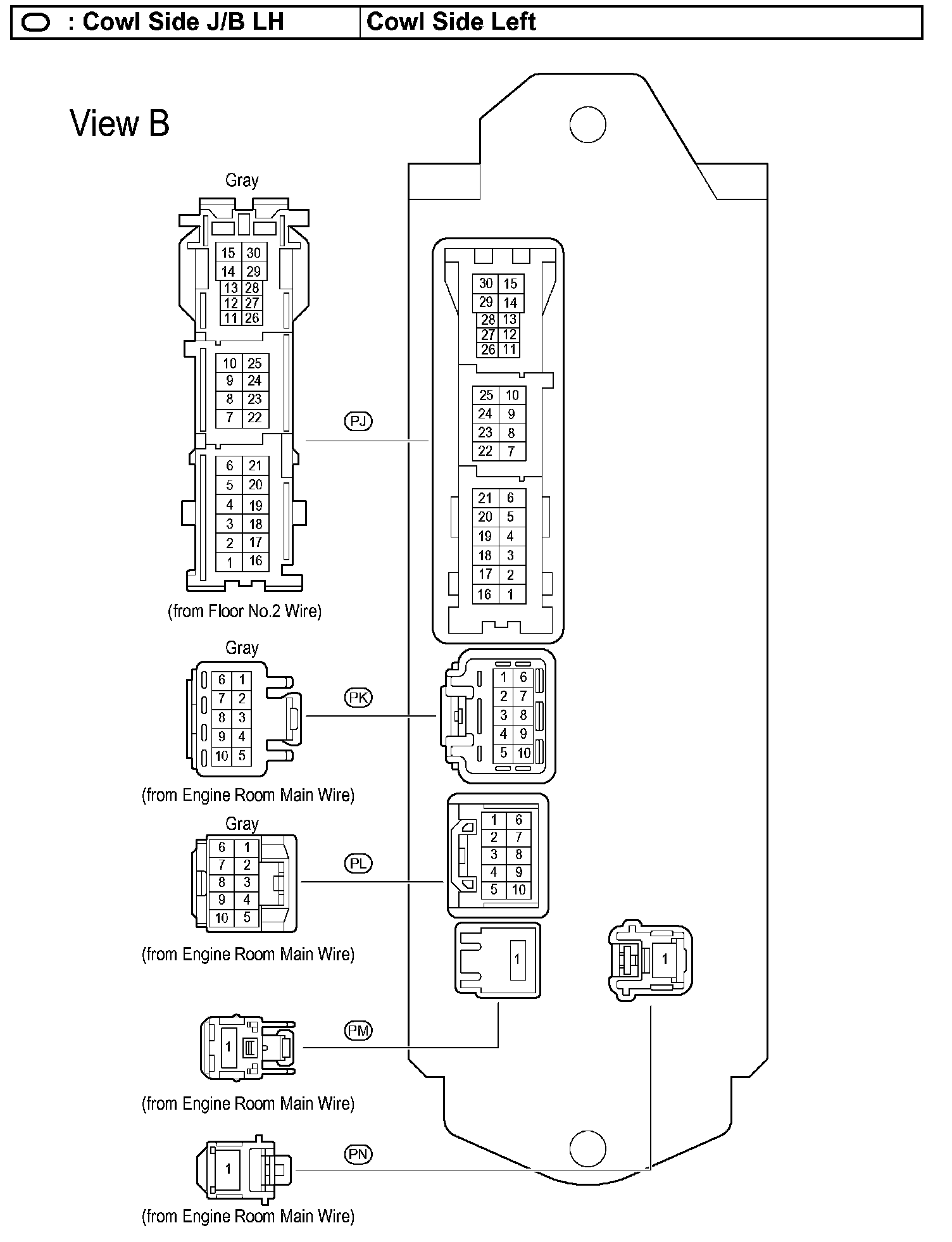

Cowl Side J/B LH - Cowl Side Left:

Cowl Side J/B LH - Cowl Side Left:

Cowl Side J/B LH - Cowl Side Left:

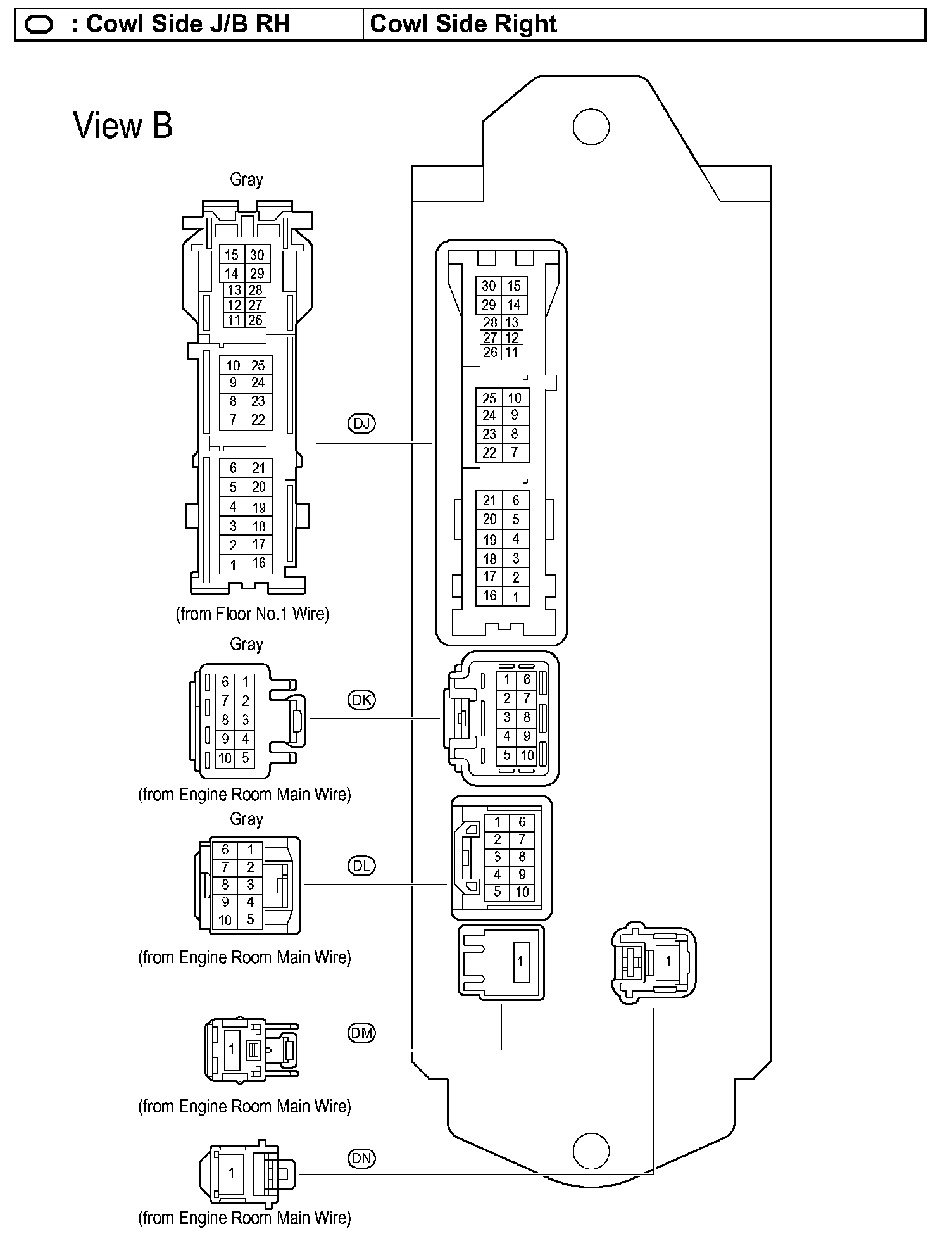

Cowl Side J/B RH - Cowl Side Right:

Cowl Side J/B RH - Cowl Side Right:

Cowl Side J/B RH - Cowl Side Right:

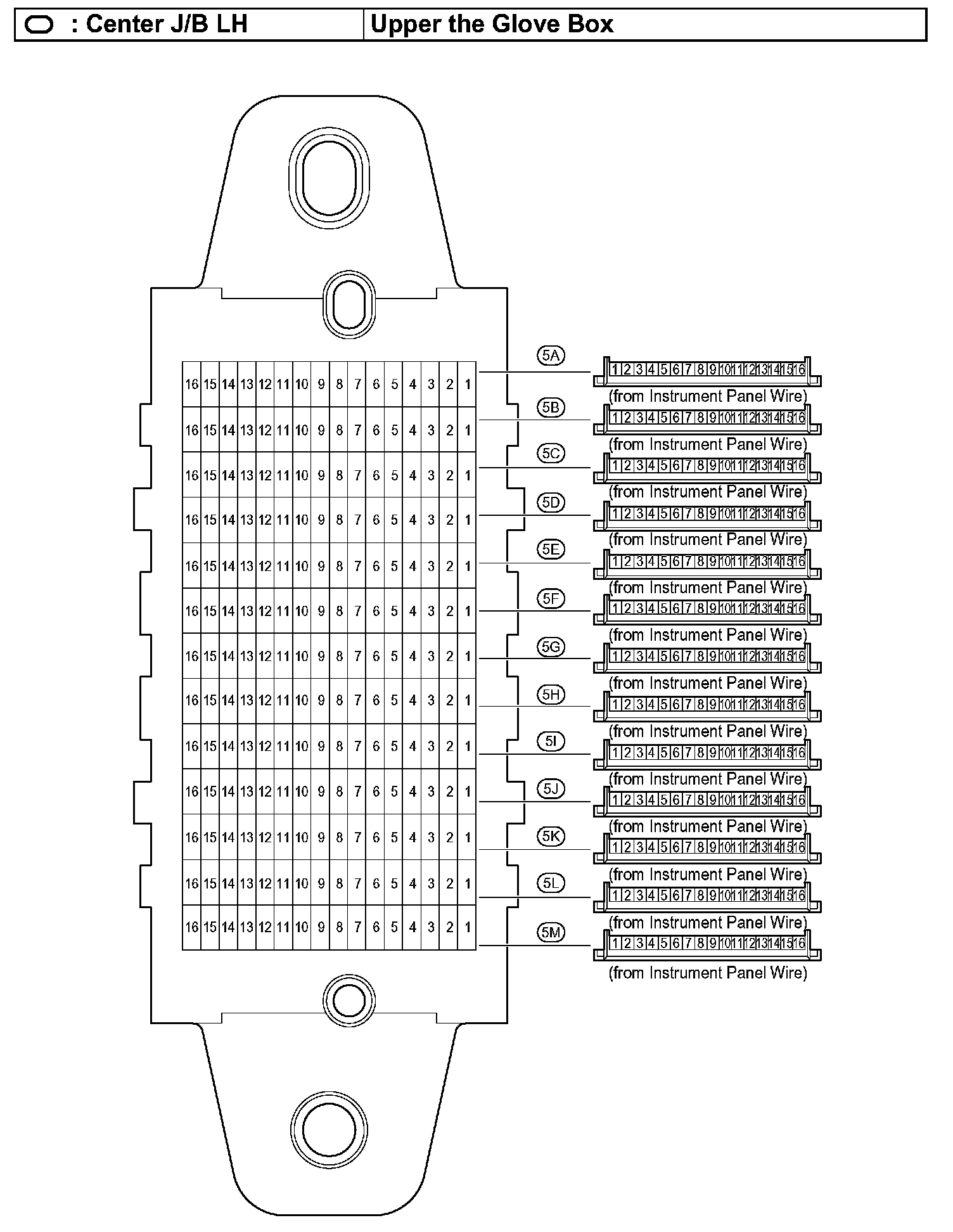

Center J/B LH - Upper The Glove Box:

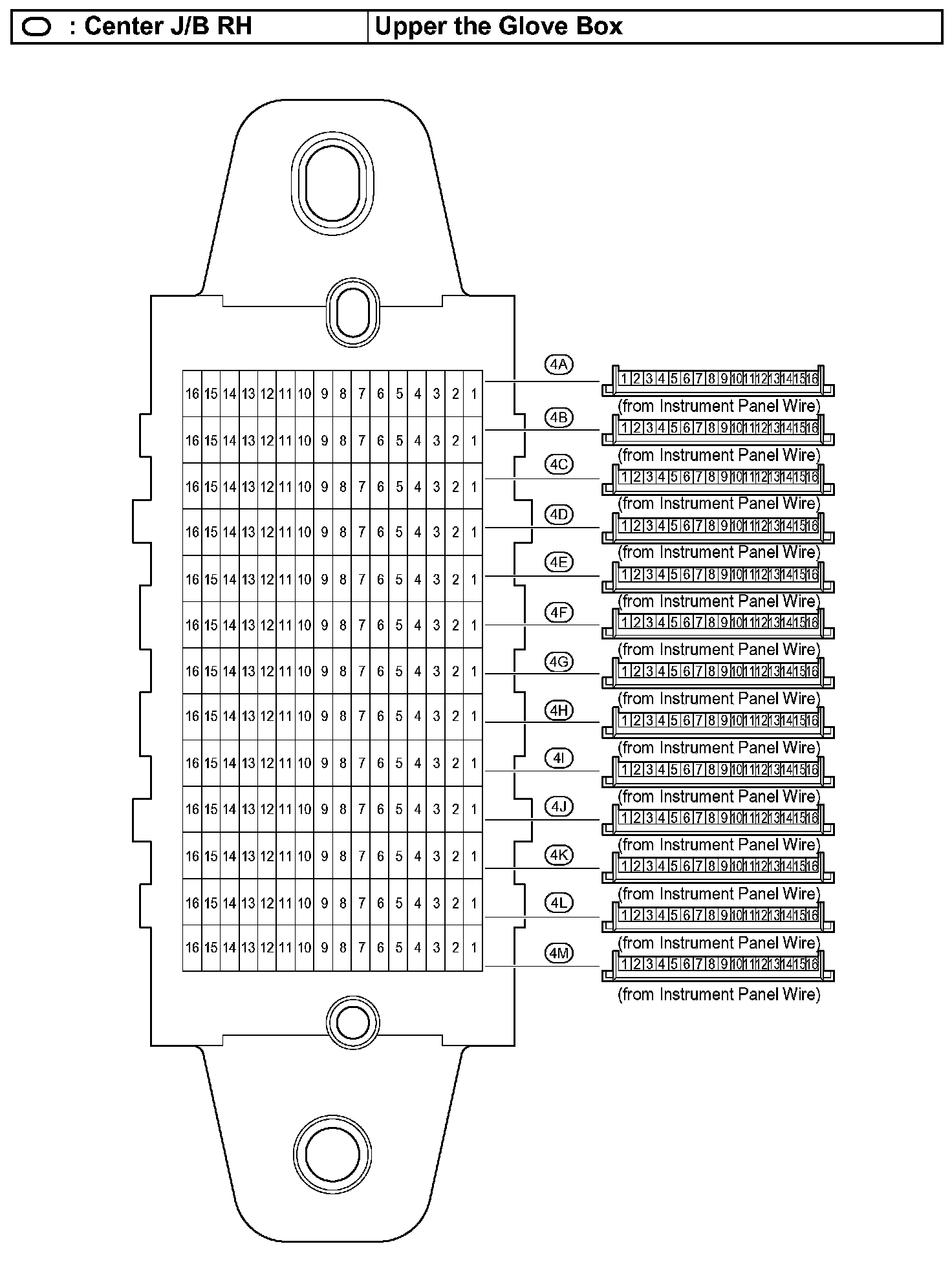

Center J/B RH - Upper The Glove Box:

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

Junction Connector (CAN LH) - Left Kick Panel:

Junction Connector (CAN RH) - Right Kick Panel:

Junction Connector (CAN Center) - Right Of The Instrument Panel Reinforcement:

Junction Connector (CAN Luggage) - Luggage Room Left:
