Front Passenger Side Door Entry Lock Function Does Not Operate

Front Passenger Side Door Entry Lock Function does not Operate

DESCRIPTION

When the touch sensor inside the outside door handle front RH is touched, the multiplex network door ECU front RH (front passenger door ECU) sends a request signal to the door electrical key oscillator front RH. The key receives this request and transmits its ID code. Upon receiving the ID code, the certification ECU determines that the key is outside the vehicle and sends a lock signal to the front passenger side door lock through the cowl side junction block RH (multiplex network body).

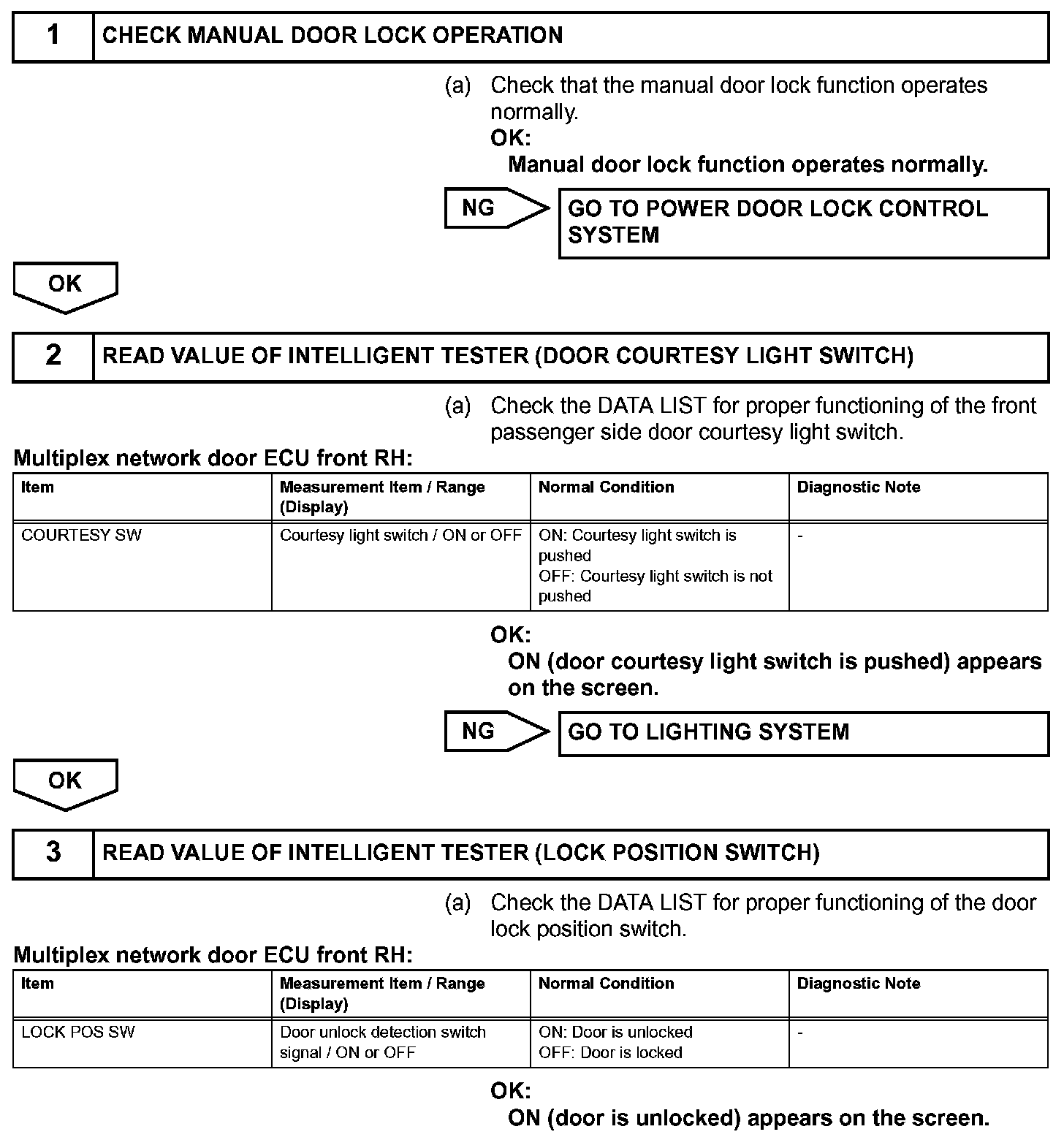

Step 1-3:

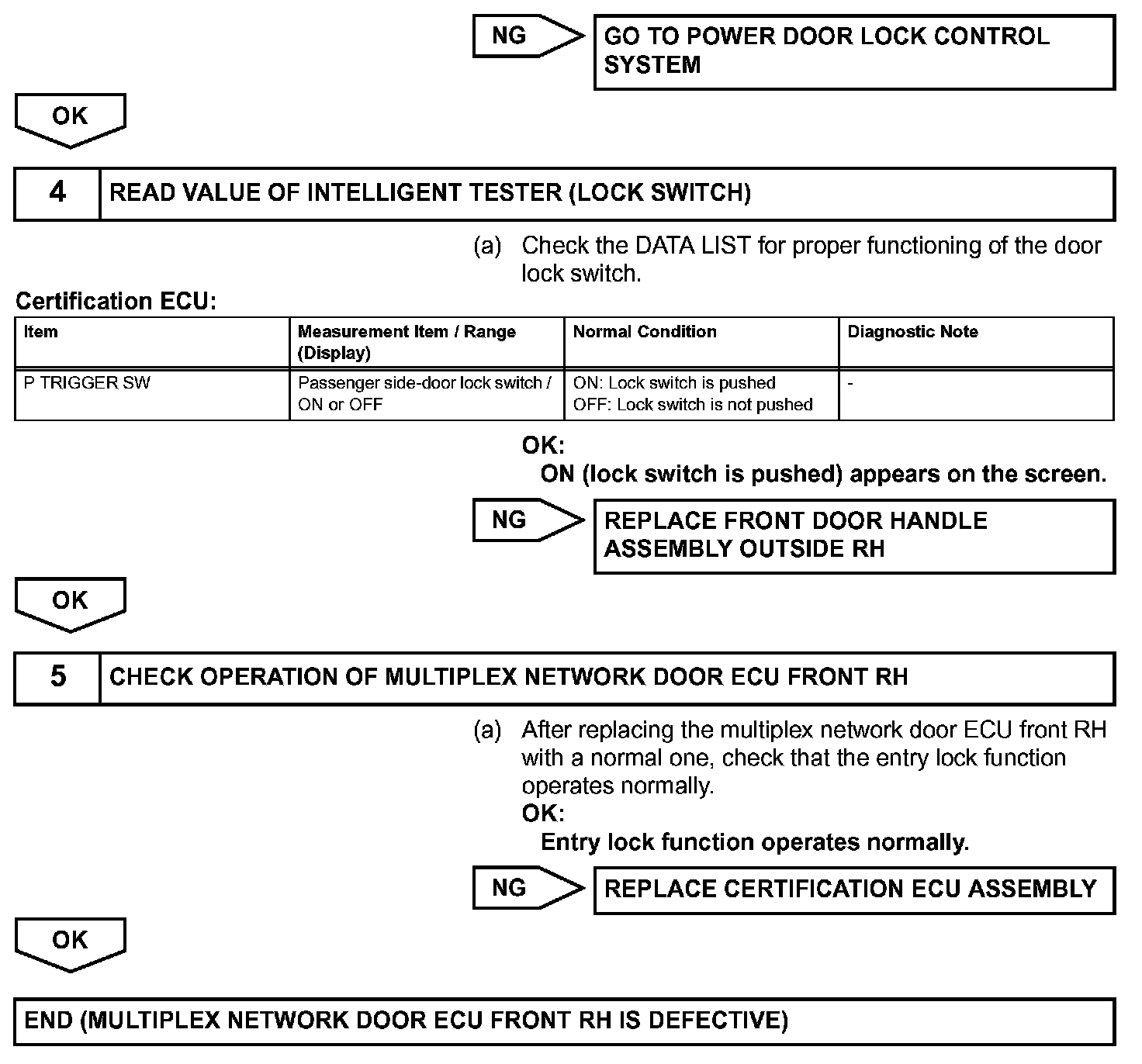

Step 3 (Continued)-5:

INSPECTION PROCEDURE
