Power Seat for Driver's Seat without Memory: Notes

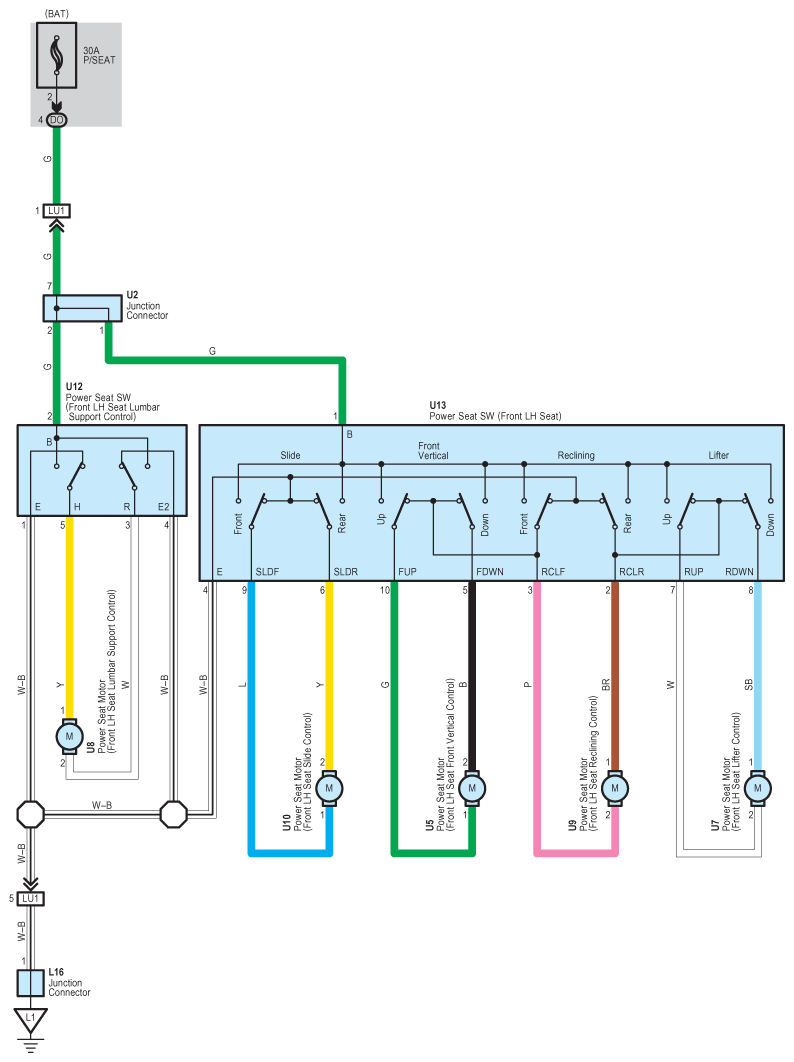

Fig 1: Power Seat For Driver's Seat Without Memory System Wiring Diagram
G08916922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
