Rear Axle Carrier: Components

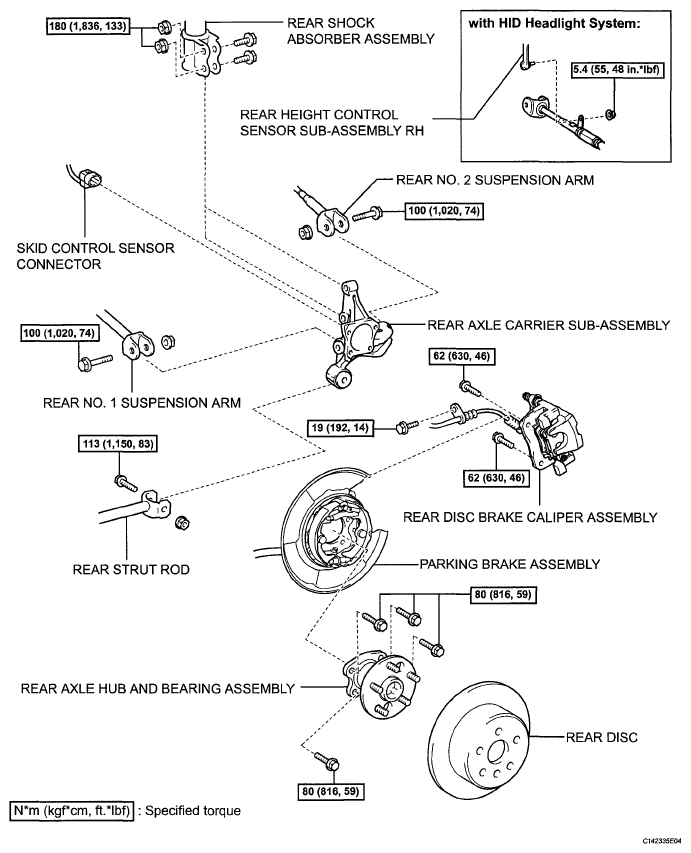

Fig 1: Rear Axle Carrier Replacement Components With Torque Specifications
G05250097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
