Inspection Procedure
- READ VALUE OF DATA LIST
- Check the DATA LIST to ensure proper function of the door unlock detection switch.
MAIN BODY:
DATA LIST CHARTItem Measurement Item / Display (Range) Normal Condition Diagnostic Note DOR KEY SW-LOCK Driver door lock/unlock switch lock signal (key-linked lock switch) /ON or OFF ON: Driver side door key cylinder is turned to LOCK
OFF: Driver side door key cylinder is not turned to LOCK- DOR KEY SW-ULCK Driver door lock/unlock switch unlock signal (key-linked unlock switch) /ON or OFF ON: Driver side door key cylinder is turned to UNLOCK
OFF: Driver side door key cylinder is not turned to UNLOCK- OK: The display is as specified in the normal condition column.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Check the DATA LIST to ensure proper function of the door unlock detection switch.
- INSPECT FRONT DOOR LOCK ASSEMBLY (DOOR KEY LOCK AND UNLOCK SWITCH)
- Remove the front door lock assembly LH.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition 7 - 9 ON (Door lock set to LOCK) Below 1 Ω 7 - 9
7 - 10OFF (Free) 10 kΩ or higher 7 - 10 ON (Door lock set to UNLOCK) Below 1 Ω
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE FRONT DOOR LOCK ASSEMBLY
OK: Go to Next Step
- CHECK WIRE HARNESS (FRONT DOOR LOCK ASSEMBLY - MAIN BODY ECU)
- Disconnect the front door lock assembly LH connector.
- Disconnect the main body ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance

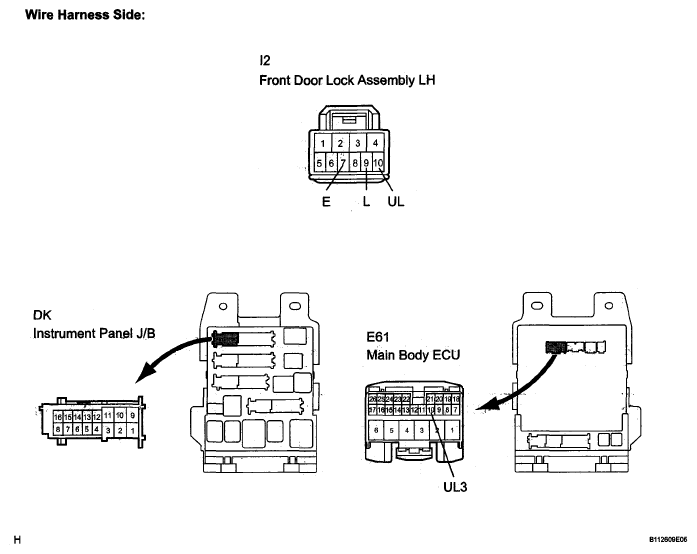

TESTER CONNECTION SPECIFIED CONDITIONTester Connection (Symbols) Condition Specified Condition I2-9 (L) - DK-16 Always Below 1 Ω 12-10 (UL)-E61-10(UL3) Always Below 1 Ω I2-7 (E) - Body ground Always Below 1 Ω 12-9 (L) - Body ground Always 10 kΩ or higher 12-10 (UL) - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE MAIN BODY ECU
