Navigation Voice Circuit: Wiring Diagram

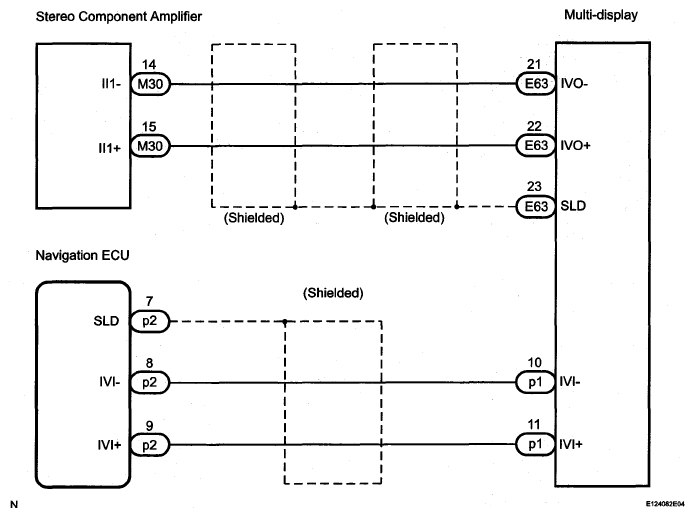

Fig 1: Navigation Voice Circuit - Wiring Diagram
G05253317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
