Fail-Safe Chart

FAIL-SAFE CHART
If any of the DTCs are set, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily.

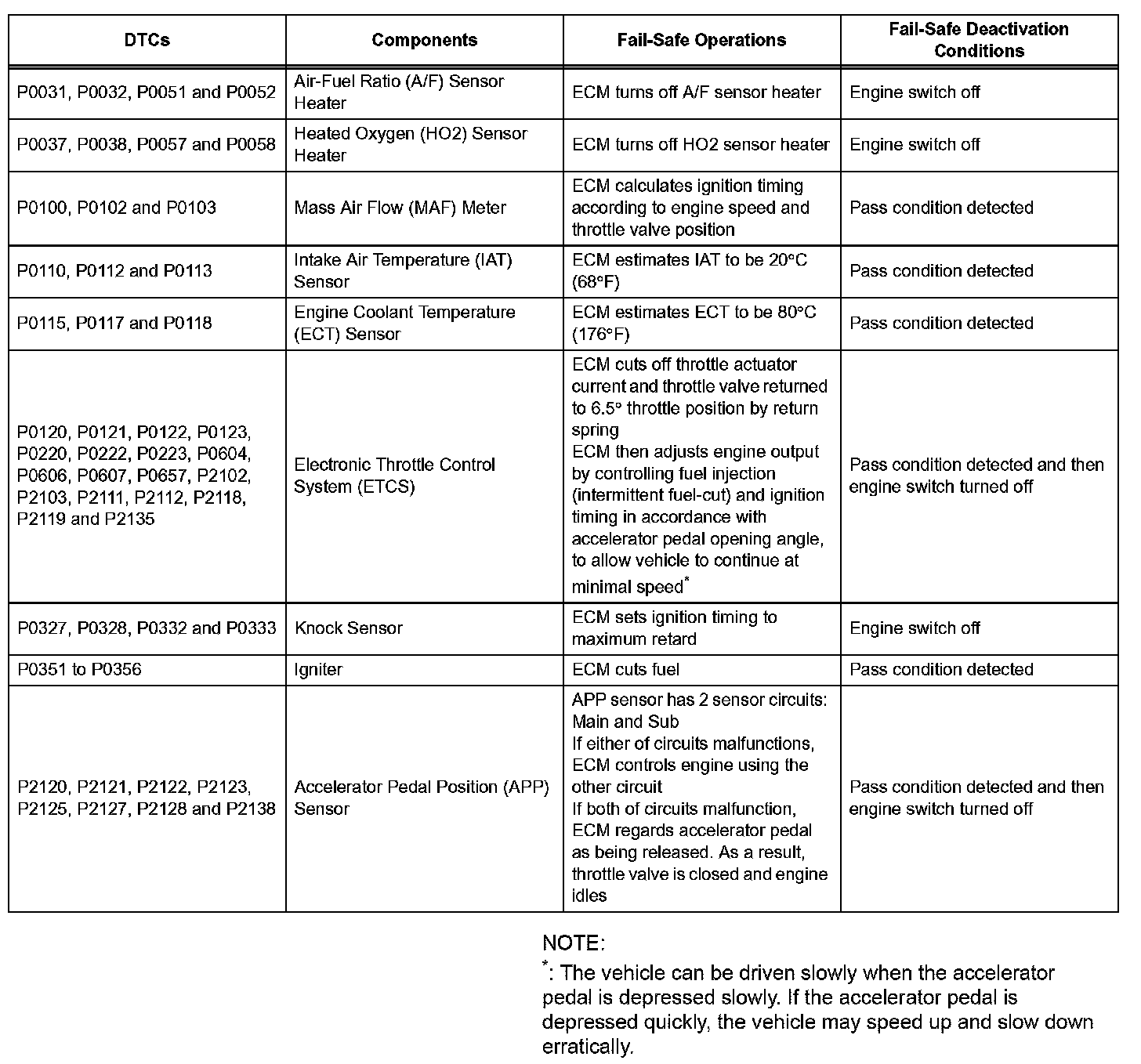

Fail-Safe Chart:
