Active Control Engine Mount ECU Communication Stop Mode
Active Control Engine Mount ECU Communication Stop ModeDESCRIPTION
HINT: "E-ACM" refers to the circuit that includes the active control engine mount ECU.

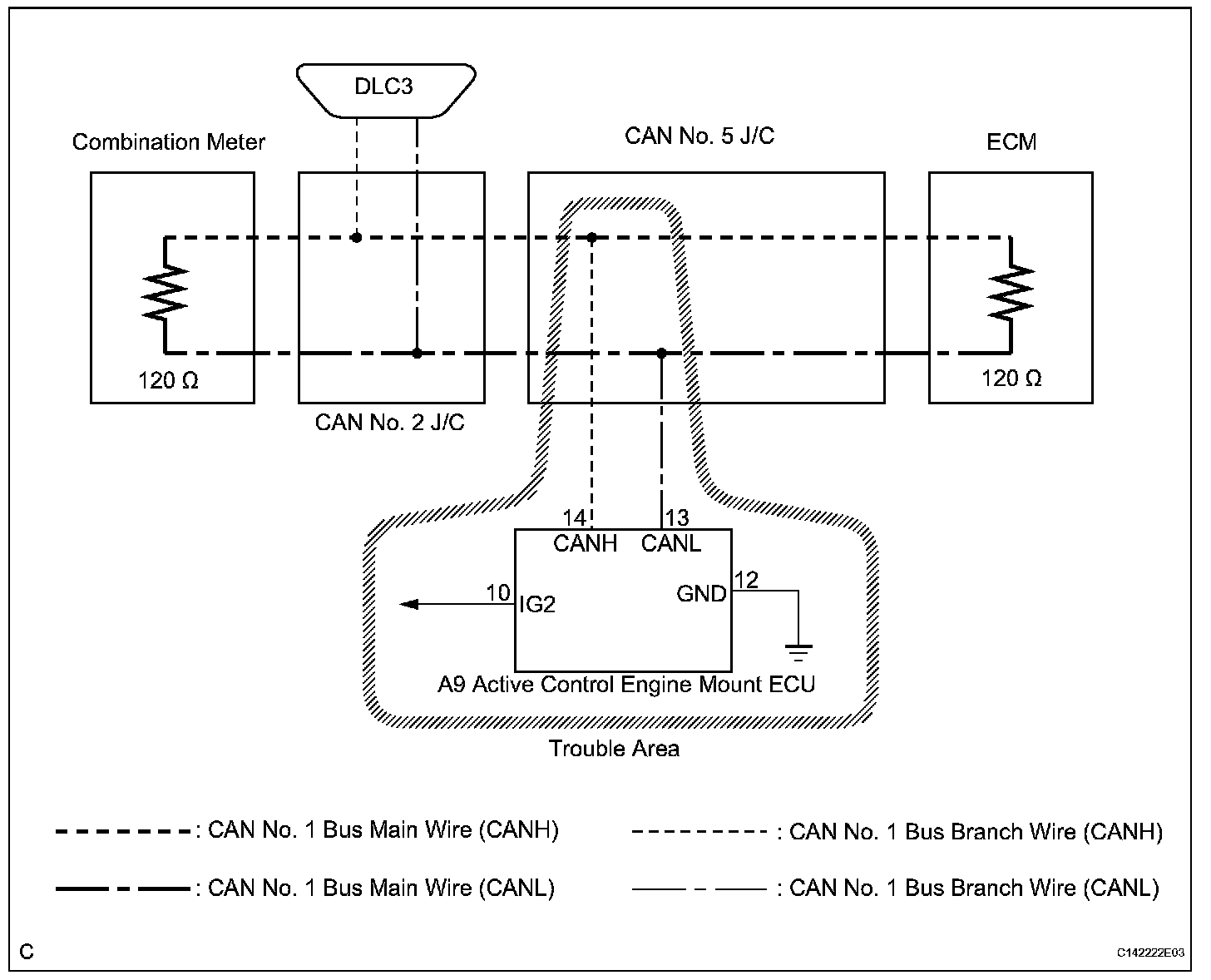

Wiring Diagram:
Step 1-2:

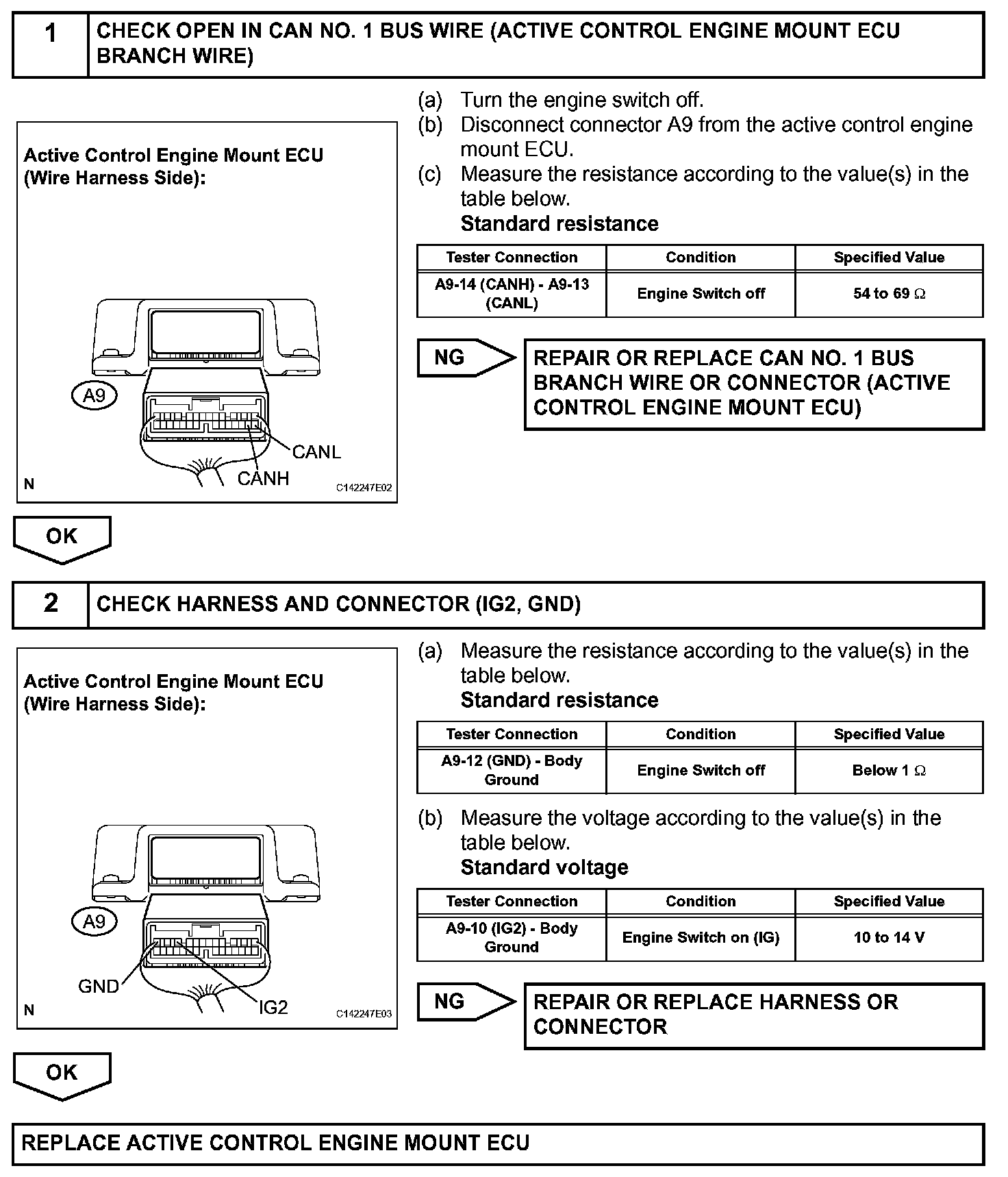

INSPECTION PROCEDURE
NOTE:
- Turn the engine switch off before measuring the resistances of CAN bus main wires and CAN bus branch wires.
- After the engine switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the engine switch, any other switches, or the doors. If any doors need to be opened in order to check connectors, open the doors and leave them open.
HINT: Operating the engine switch, any switches, or any doors triggers related ECU and sensor communication with the CAN. This communication will cause the resistance value to change.
