Pattern Select Switch Circuit (Snow): Wiring Diagram

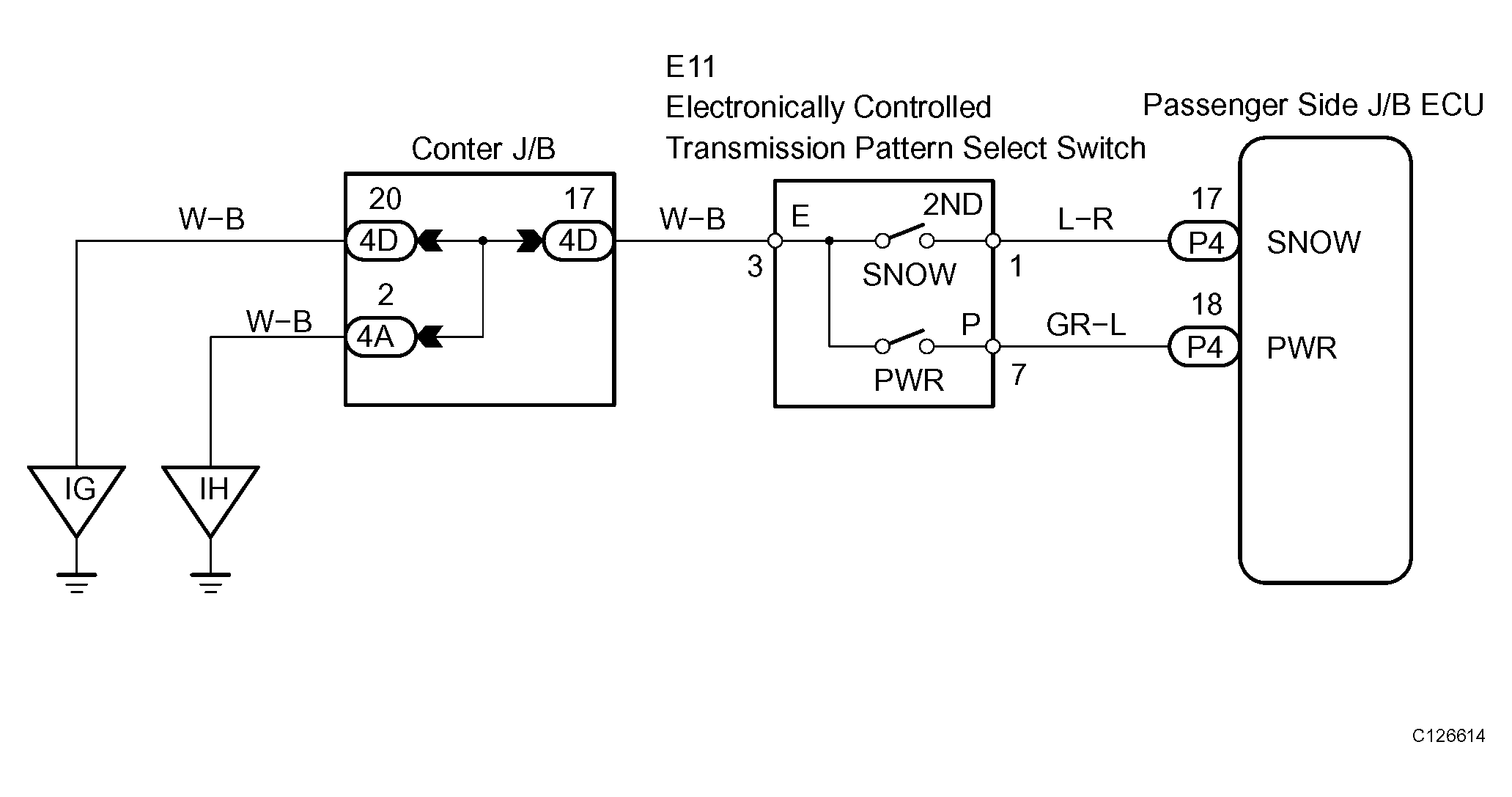

Fig 1: Wiring Diagram - Pattern Select Switch Circuit (SNOW)
G04105541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
