Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Cooling Fan System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

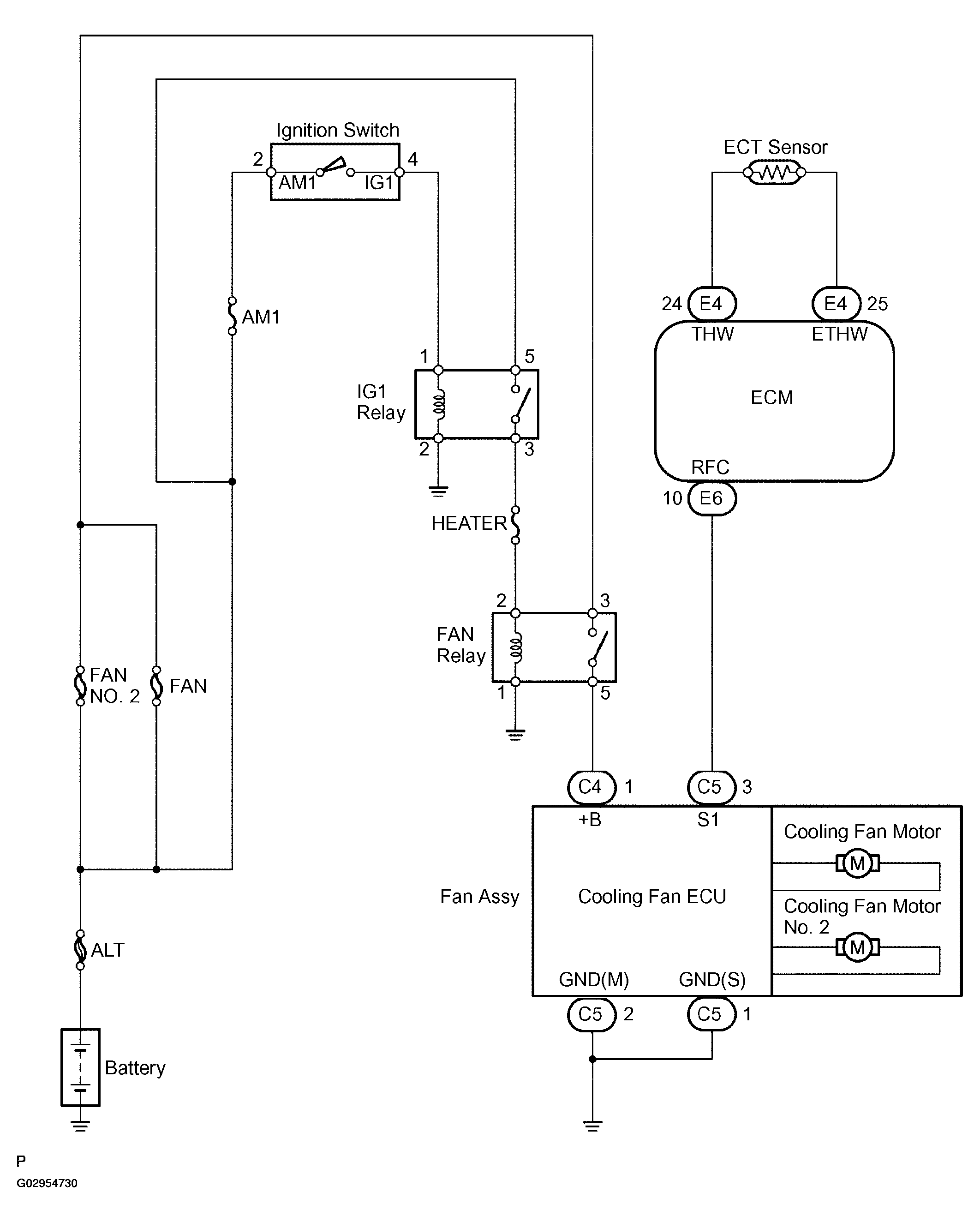

Fig 1: System Diagram - Cooling Fan System
