System Diagram

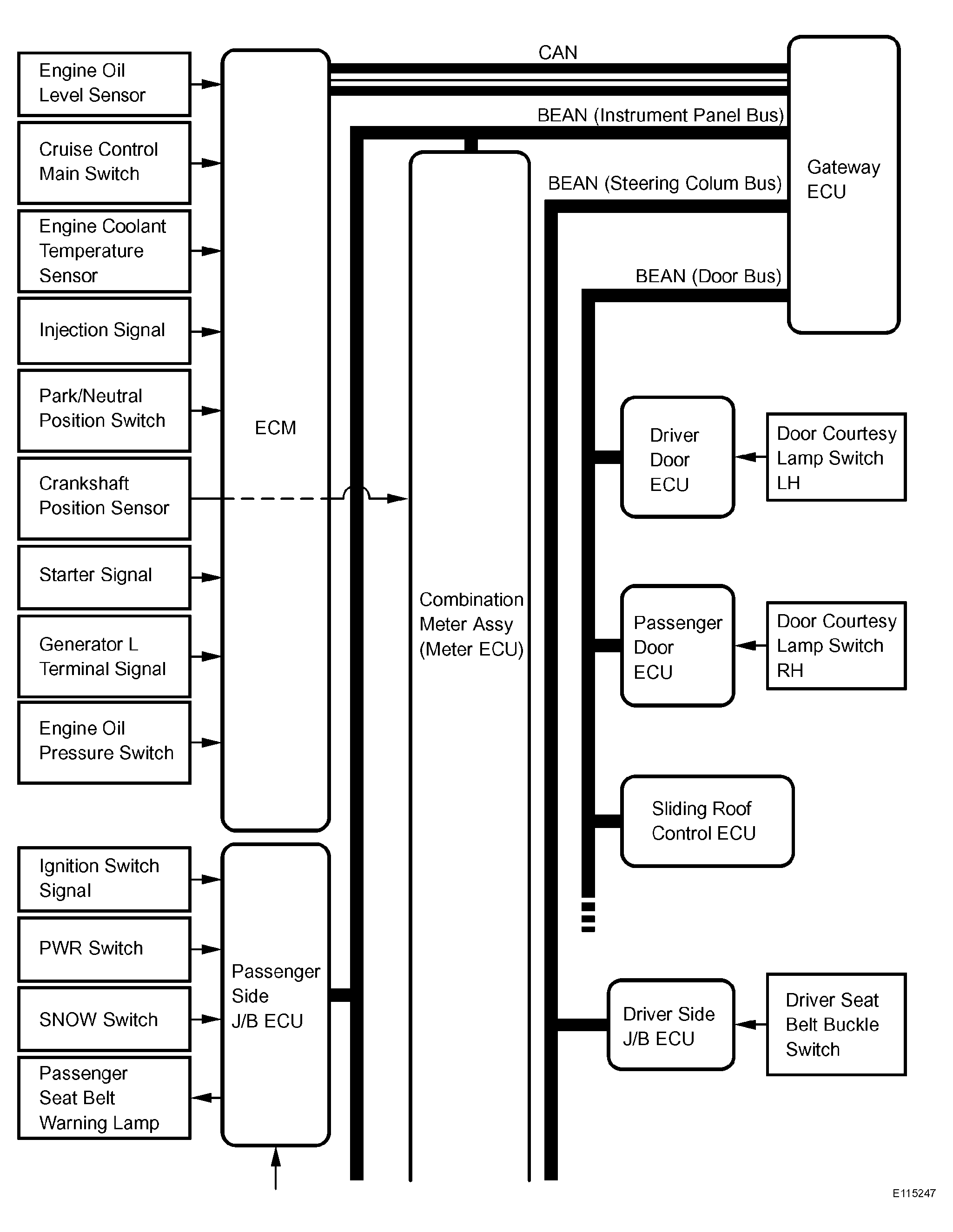

Fig 1: Combination Meter System Diagram (1 Of 2)
G04106543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

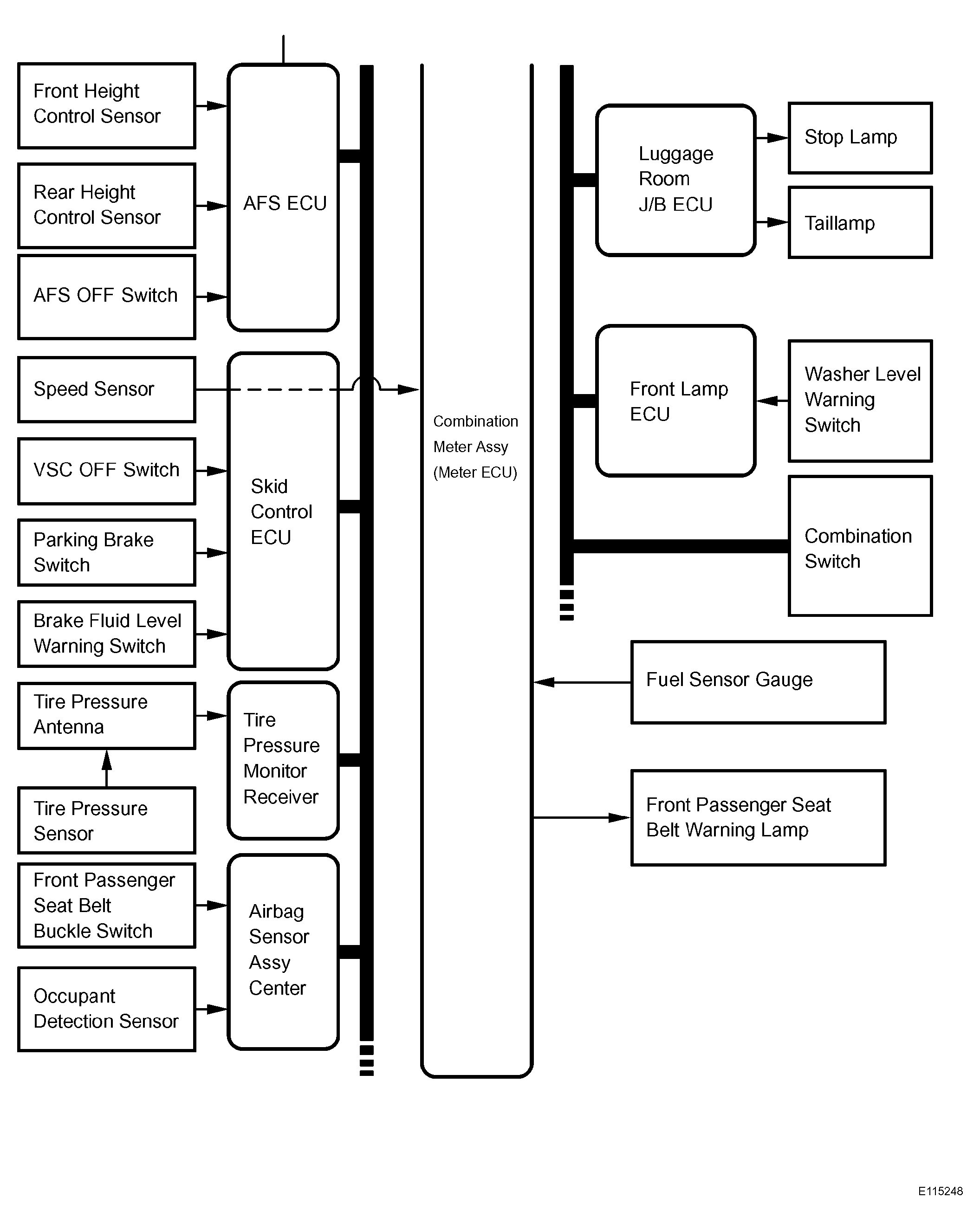

Fig 2: Combination Meter System Diagram (2 Of 2)
G04106544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
