Power Mirror Does Not Turn To Memorized Direction: Wiring Diagram

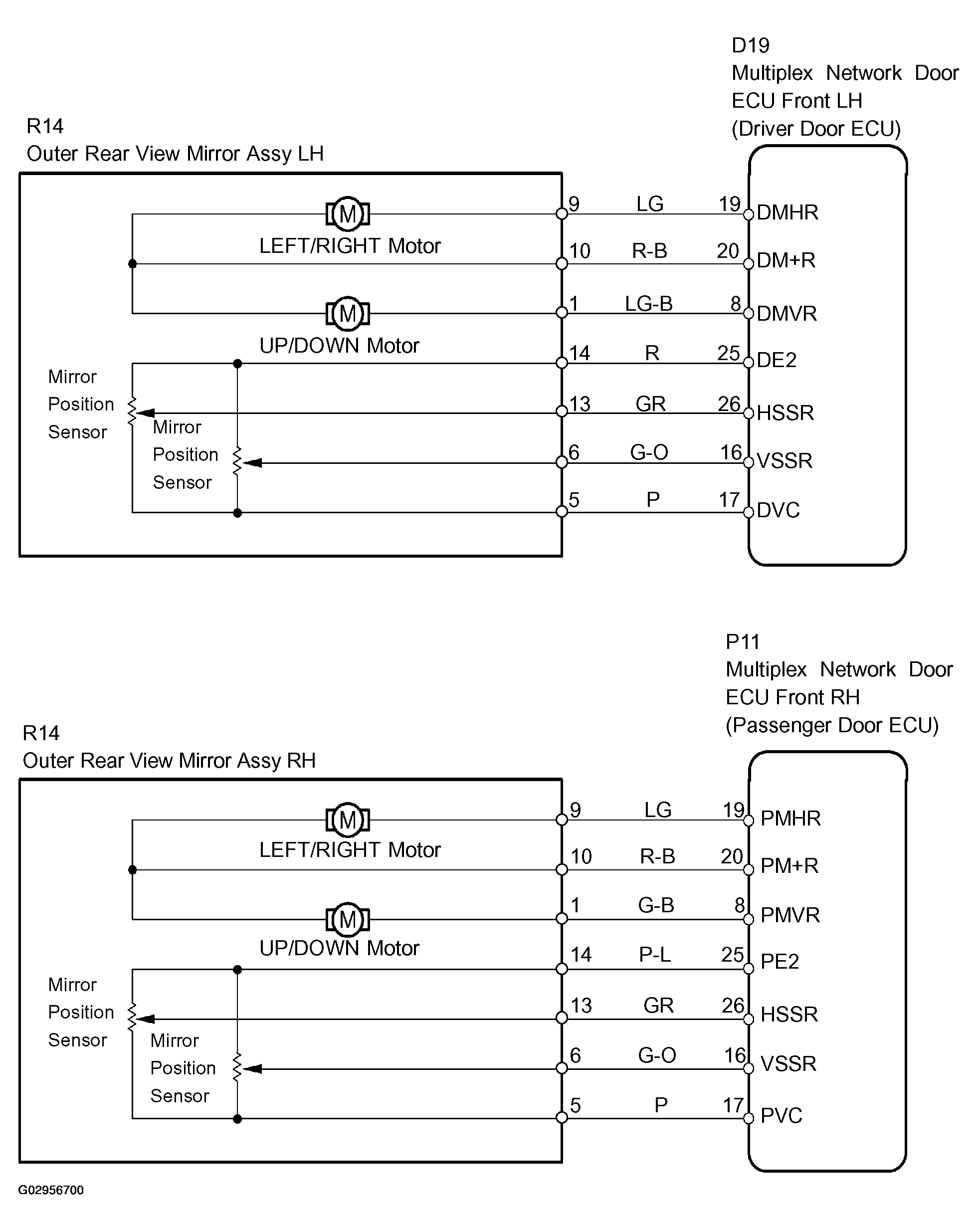

Fig 1: Power Mirror Does Not Turn To Memorized Direction Wiring Diagram
G02956700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
