Multiplex Communication System

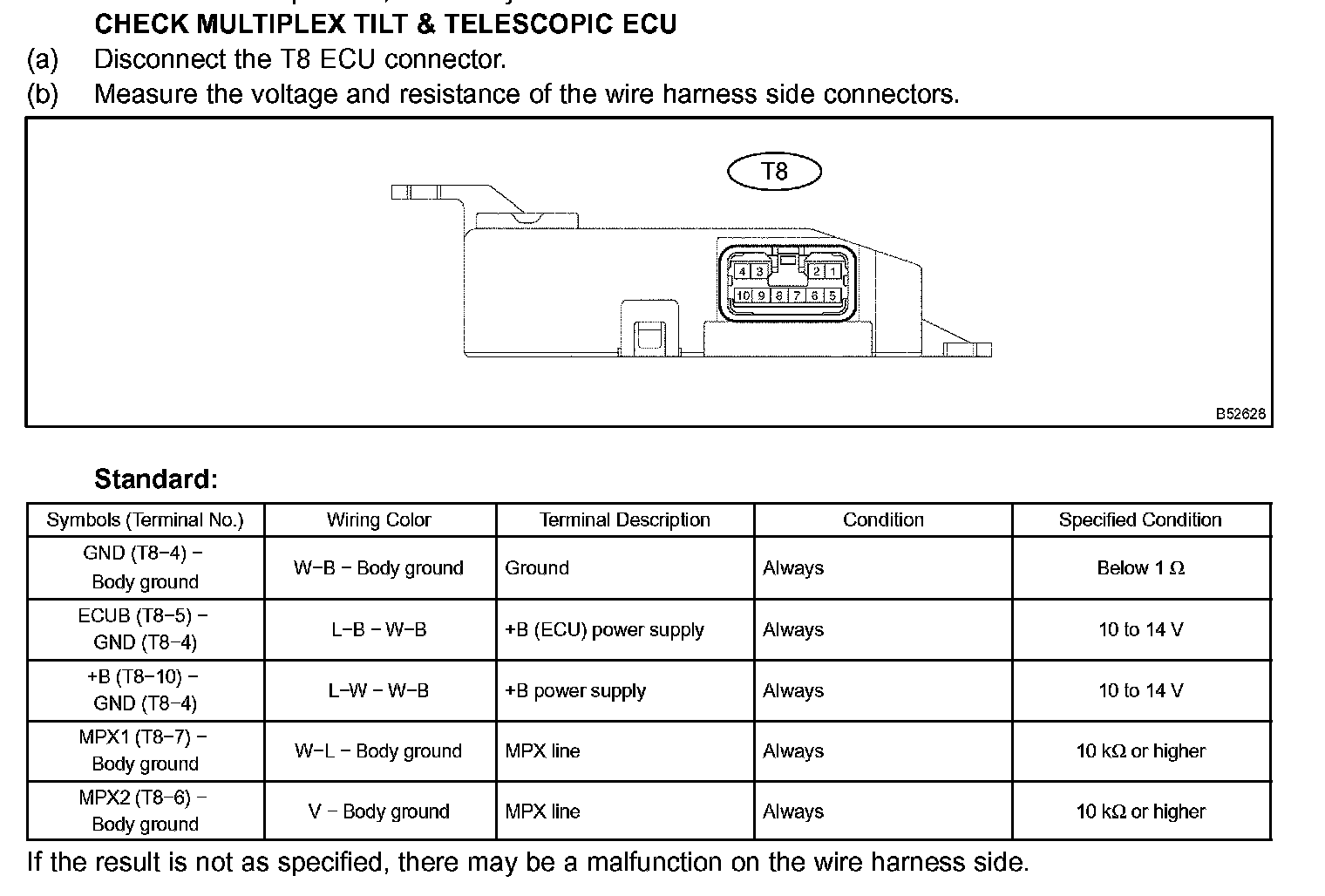

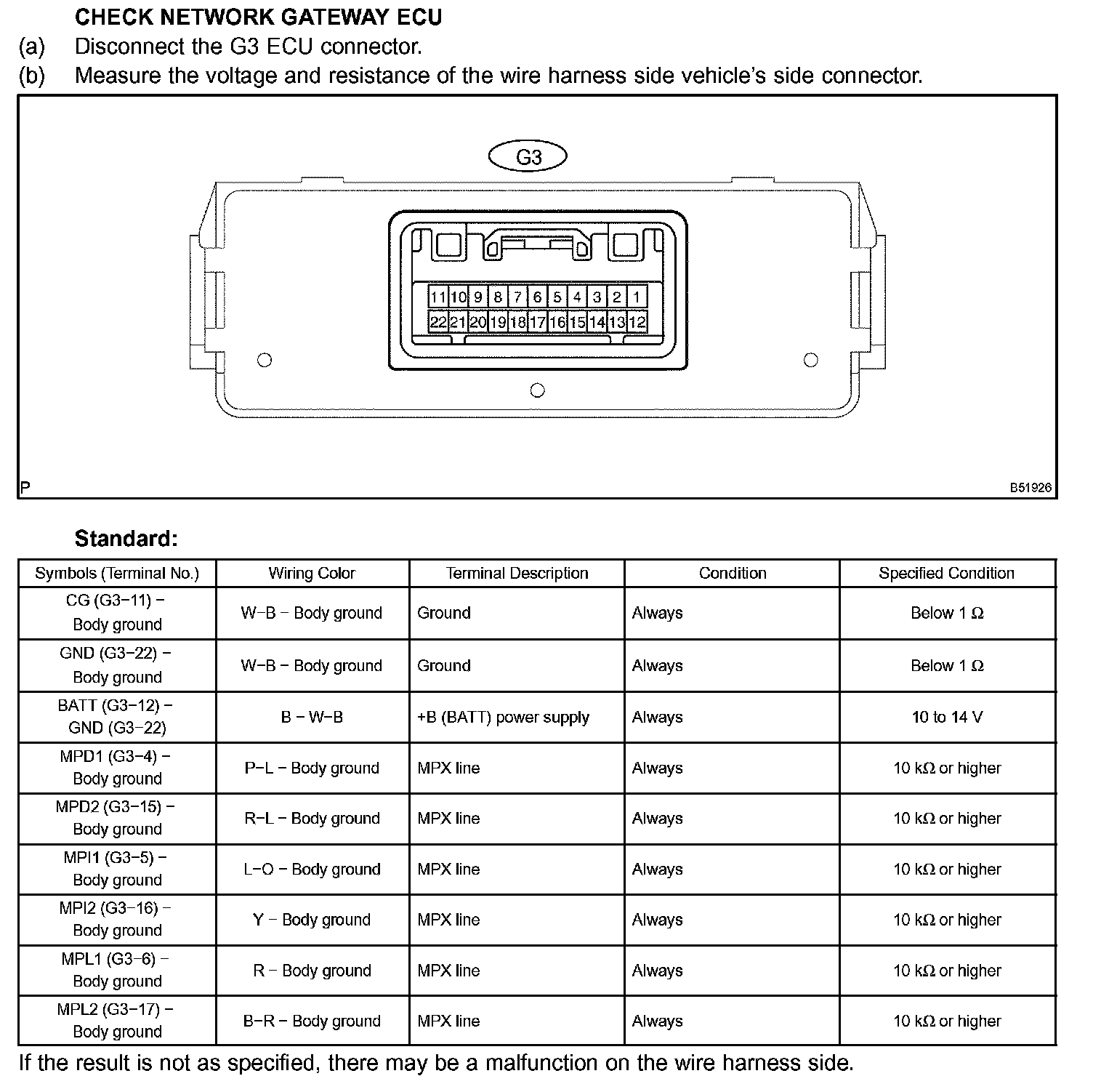

Terminals Of Control Module/Pinouts:

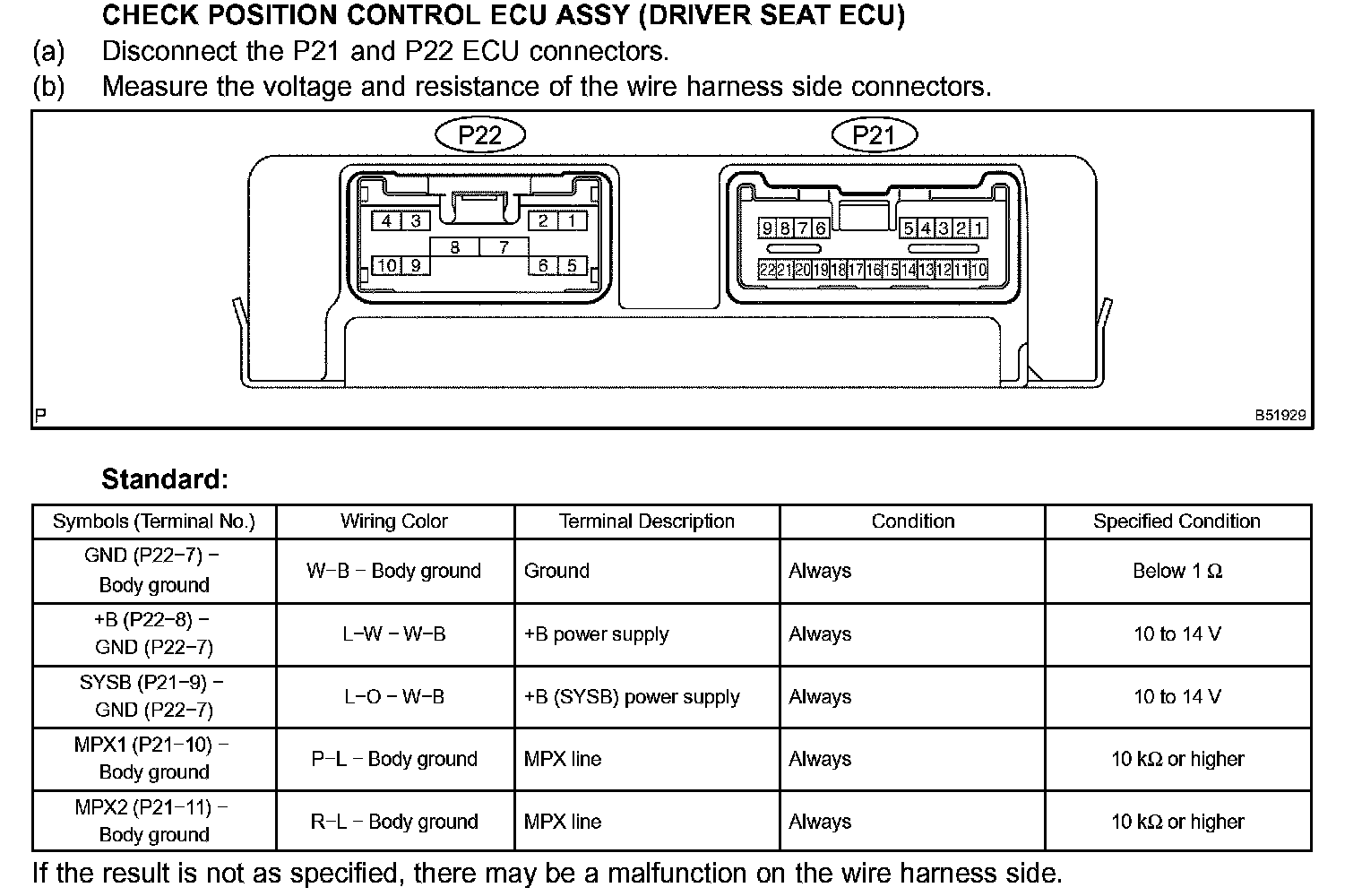

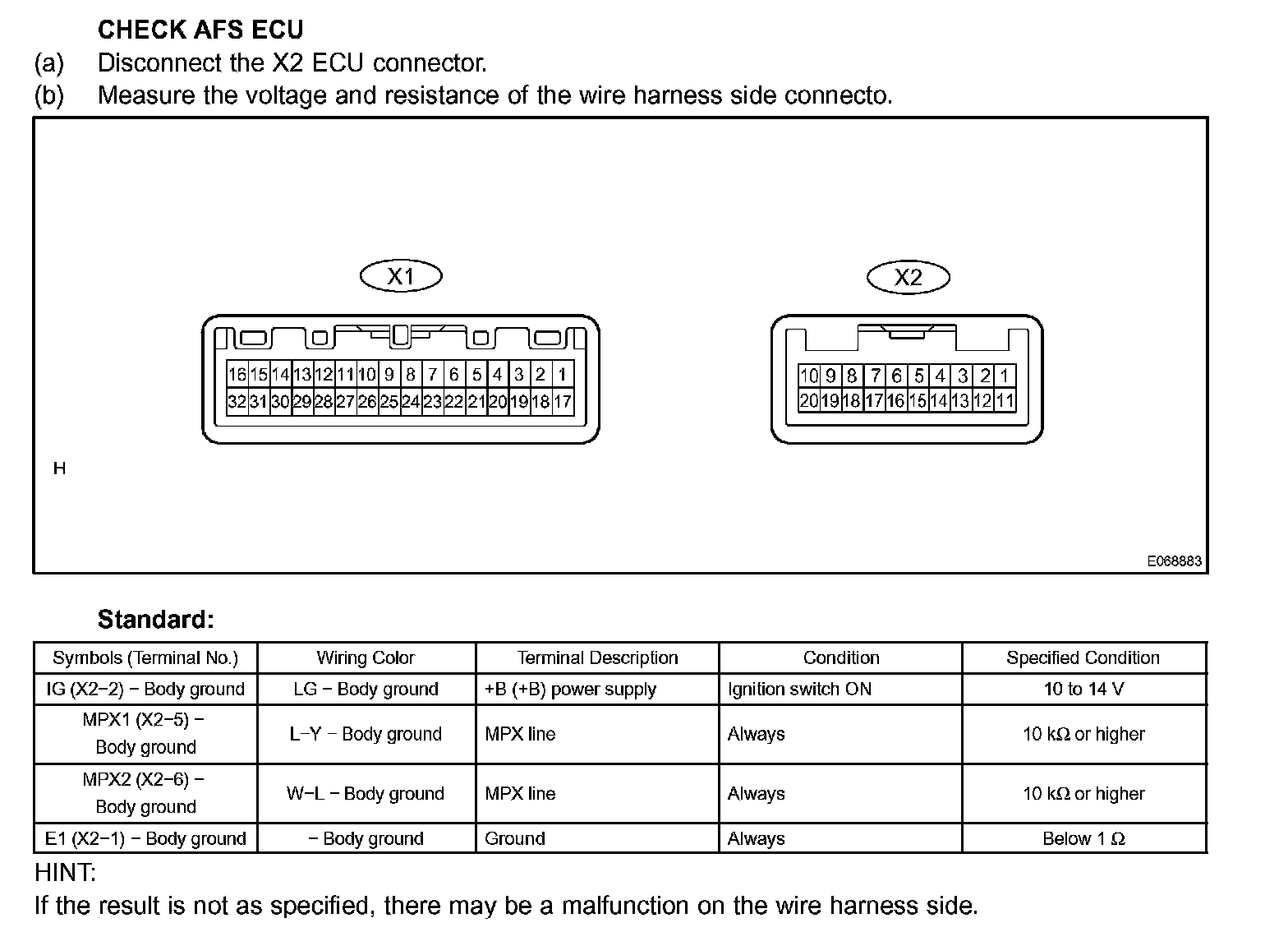

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):

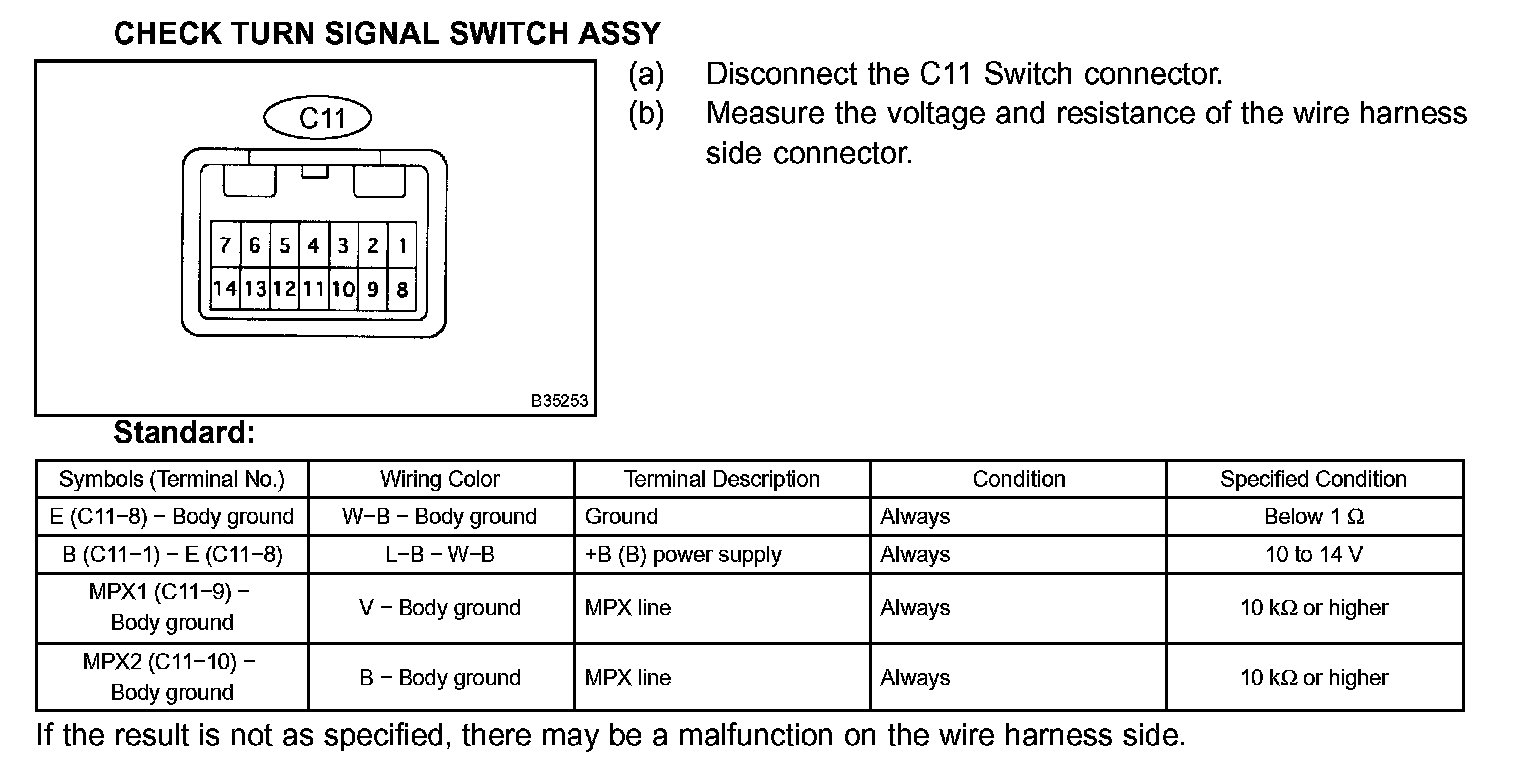

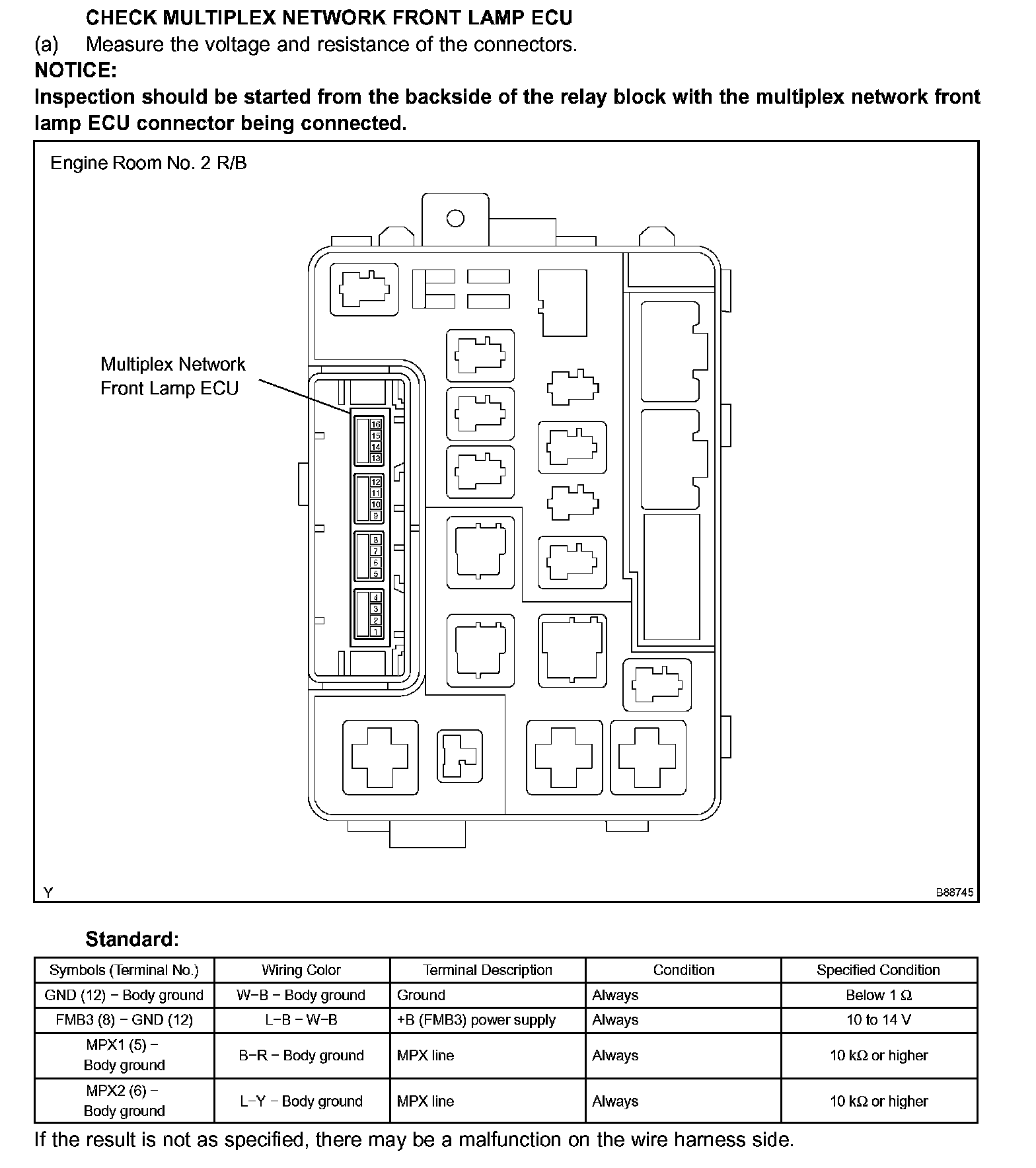

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):

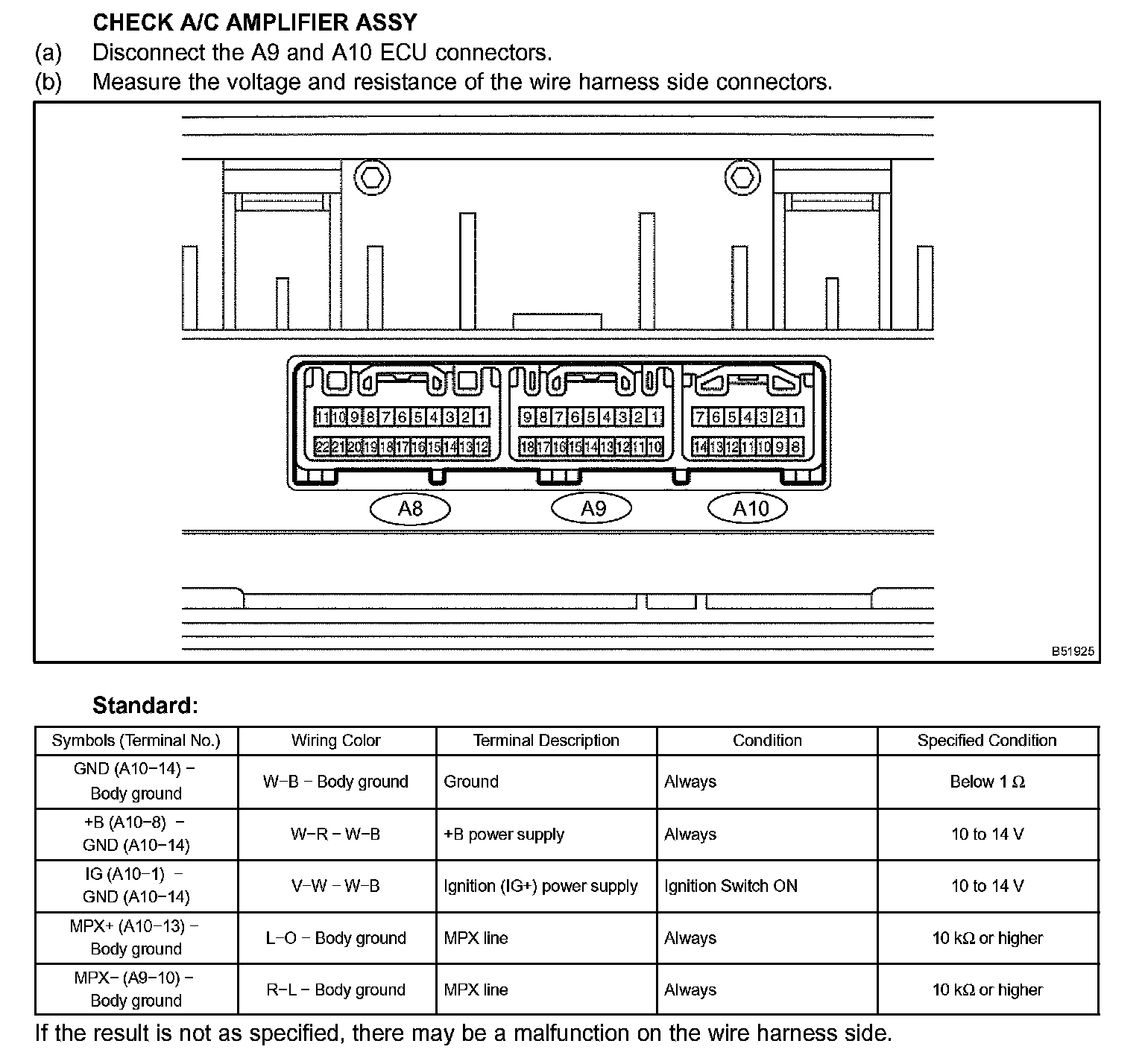

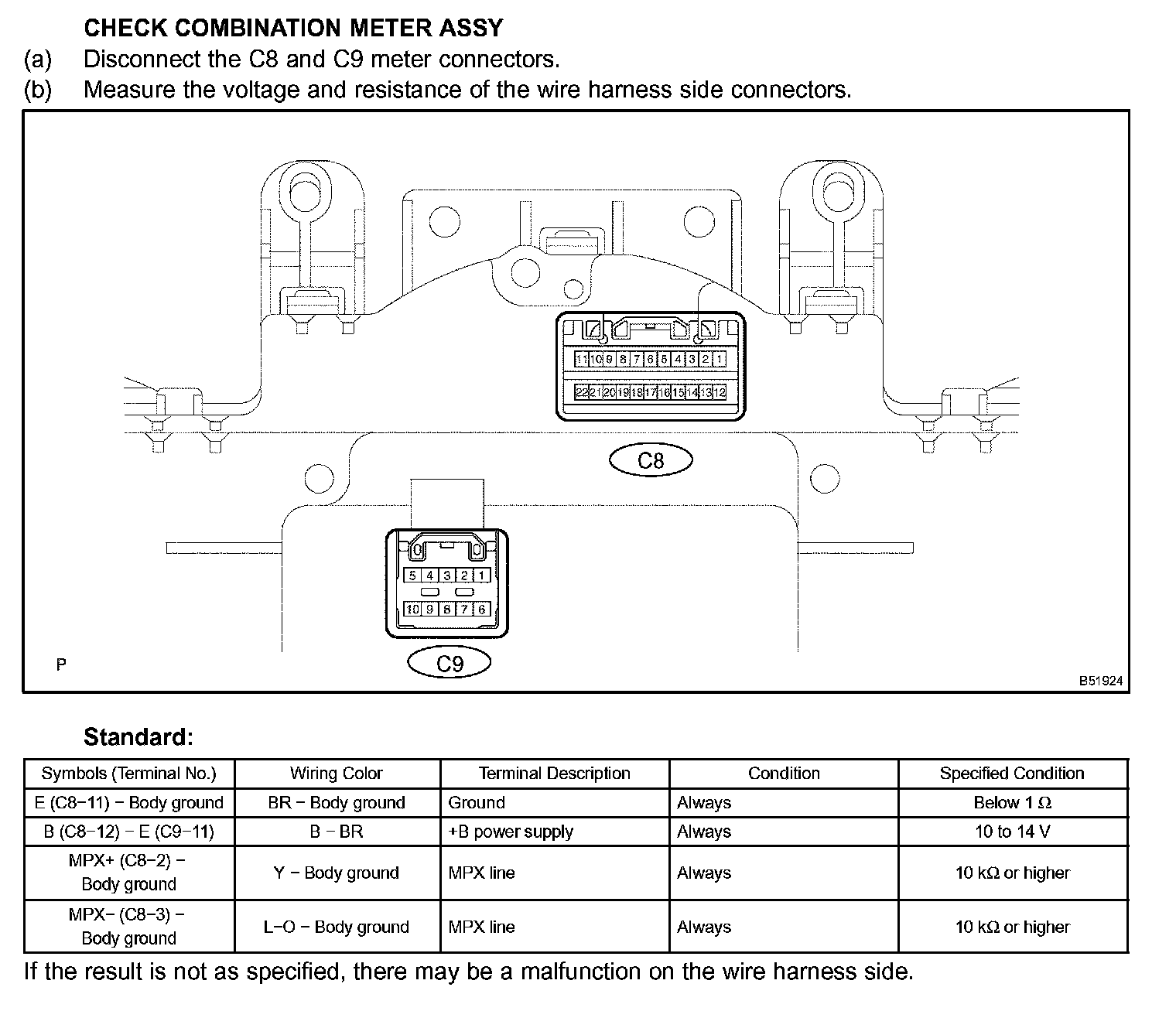

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):

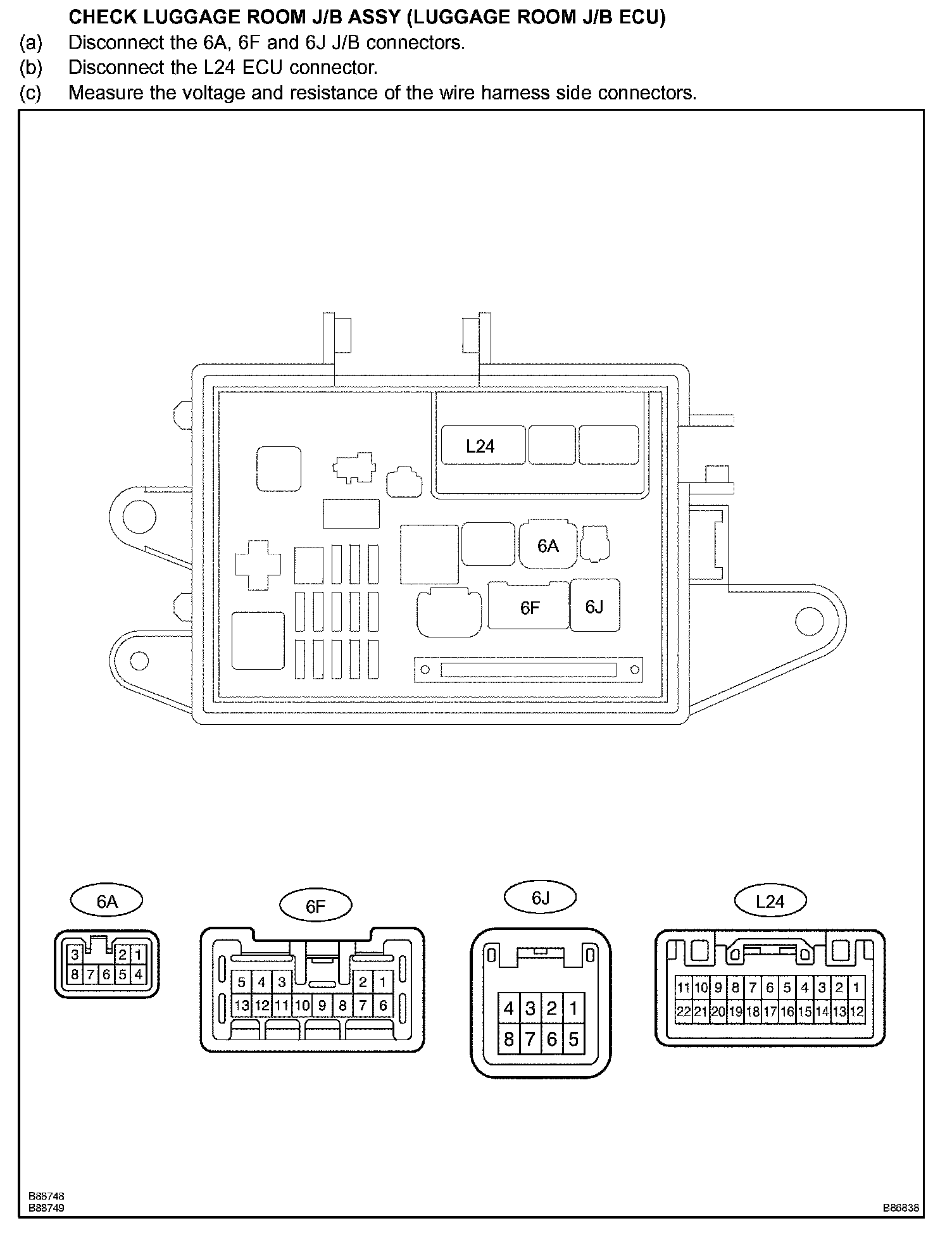

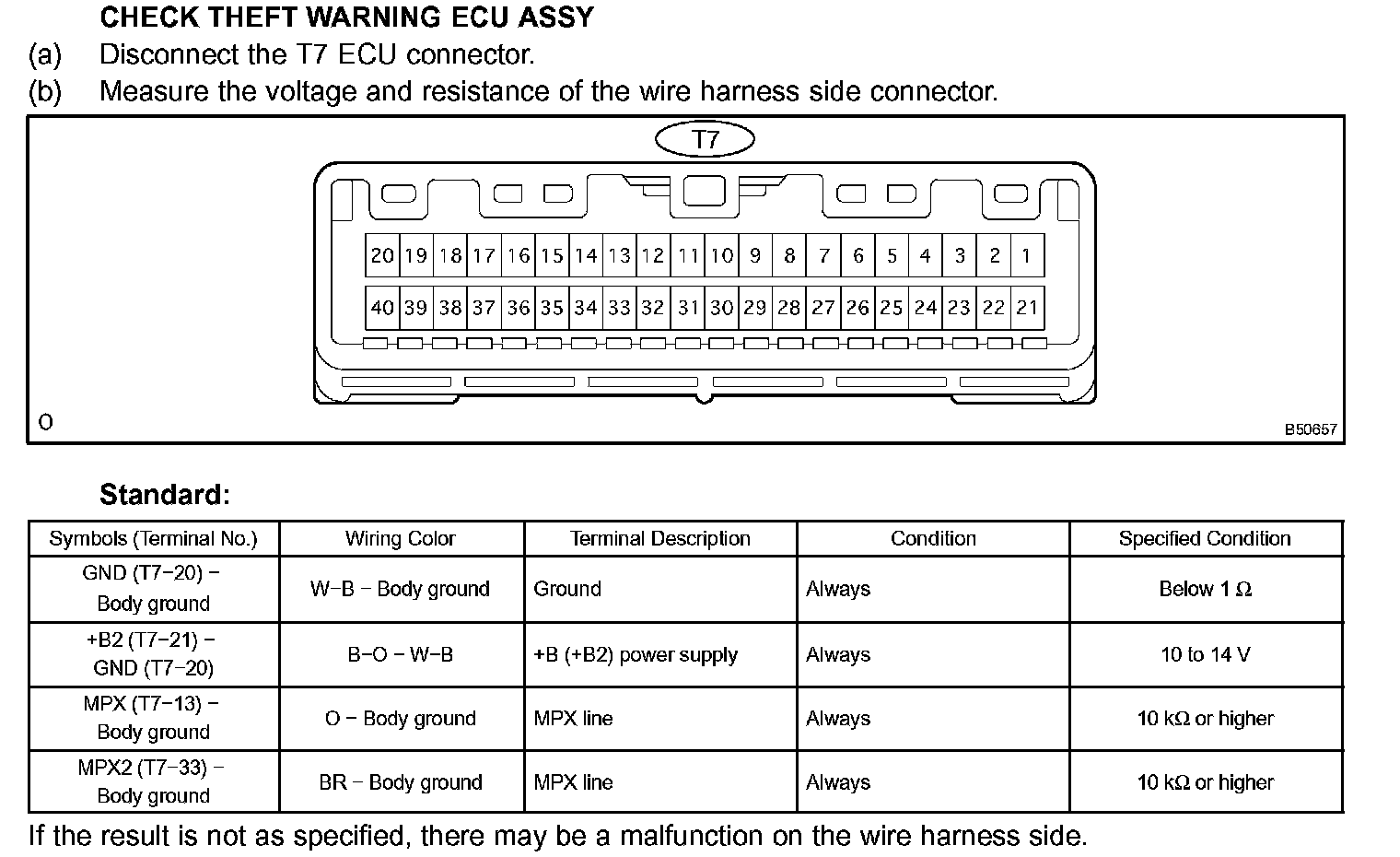

Terminals Of Control Module/Pinouts:

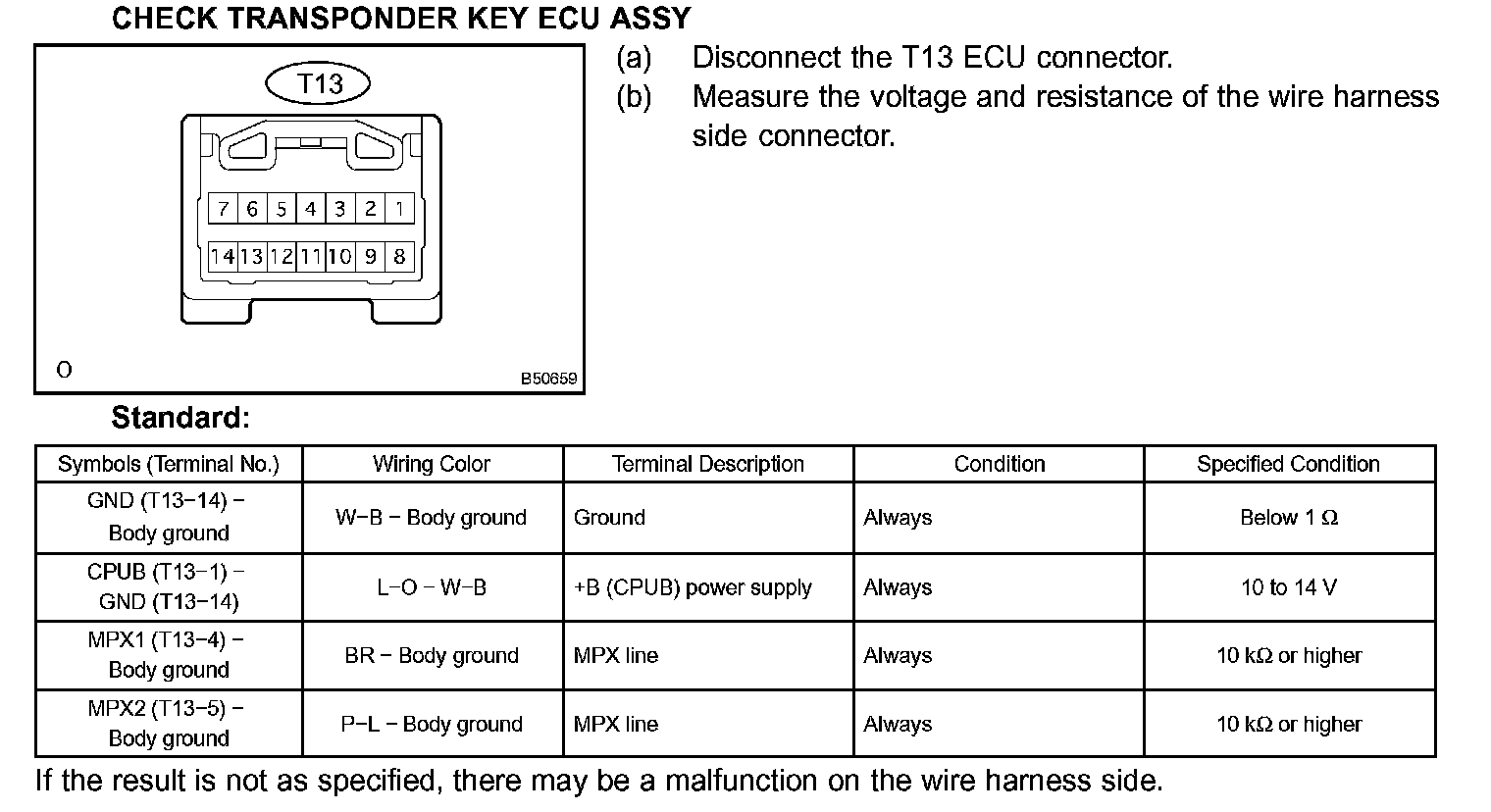

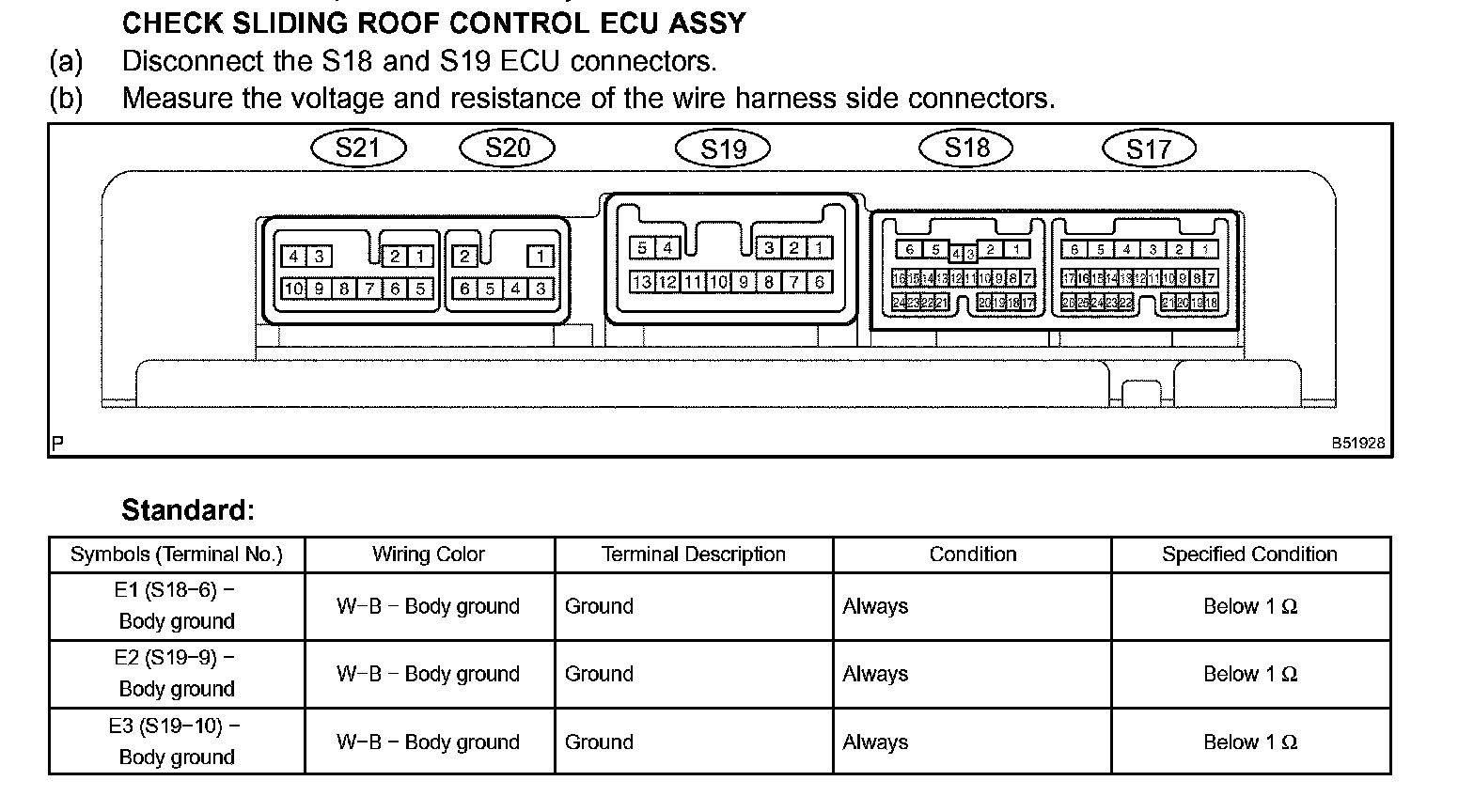

Terminals Of Control Module/Pinouts:

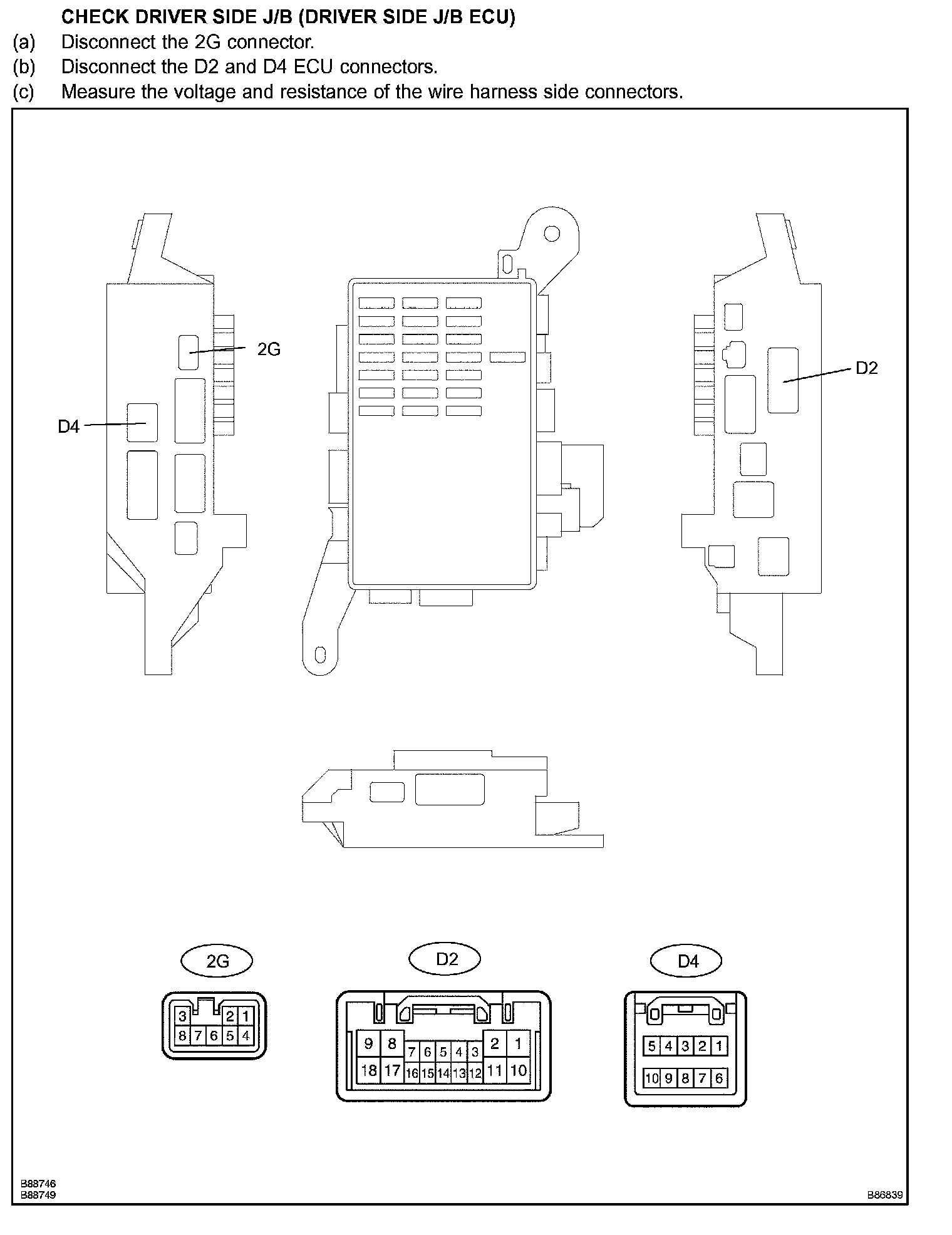

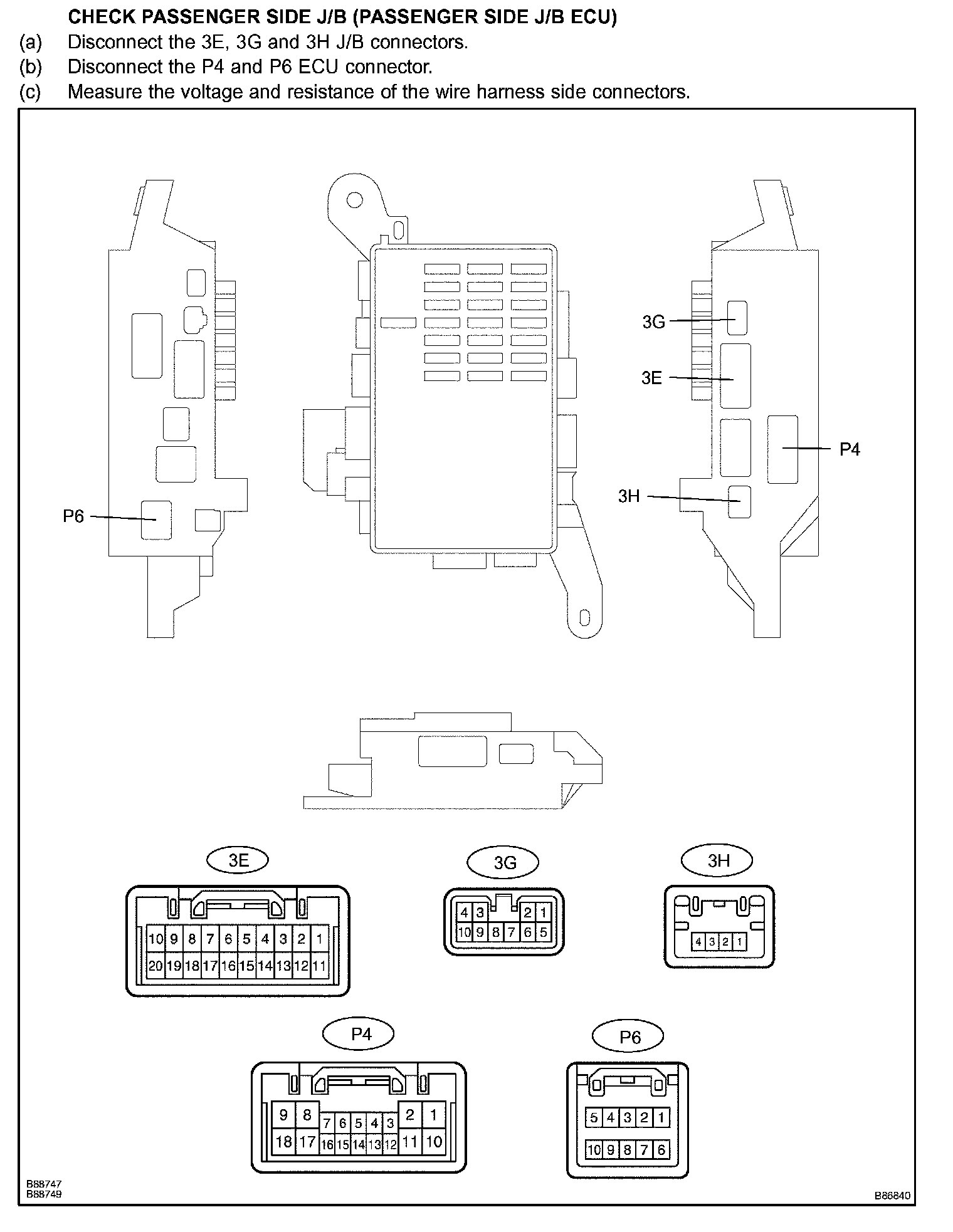

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):

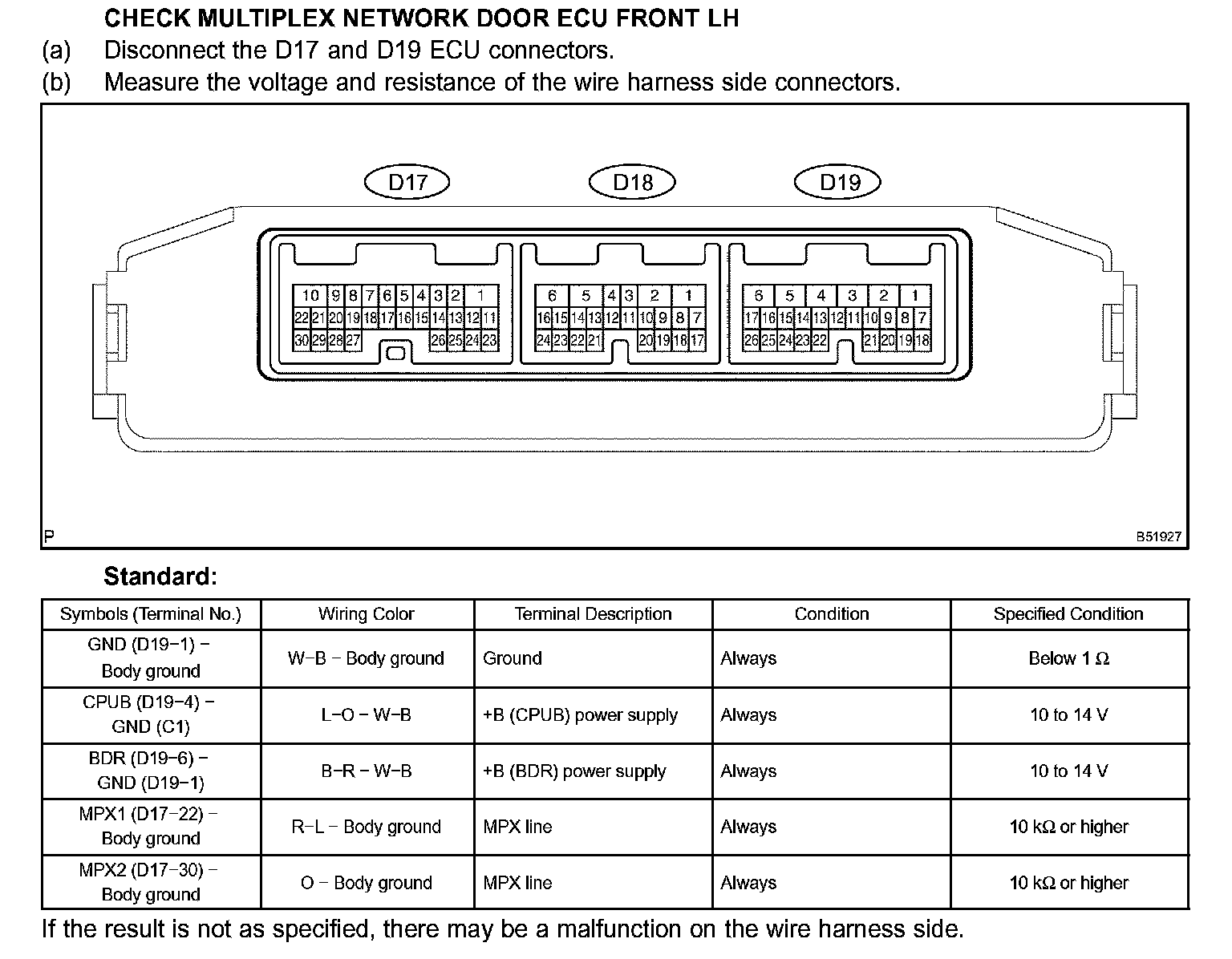

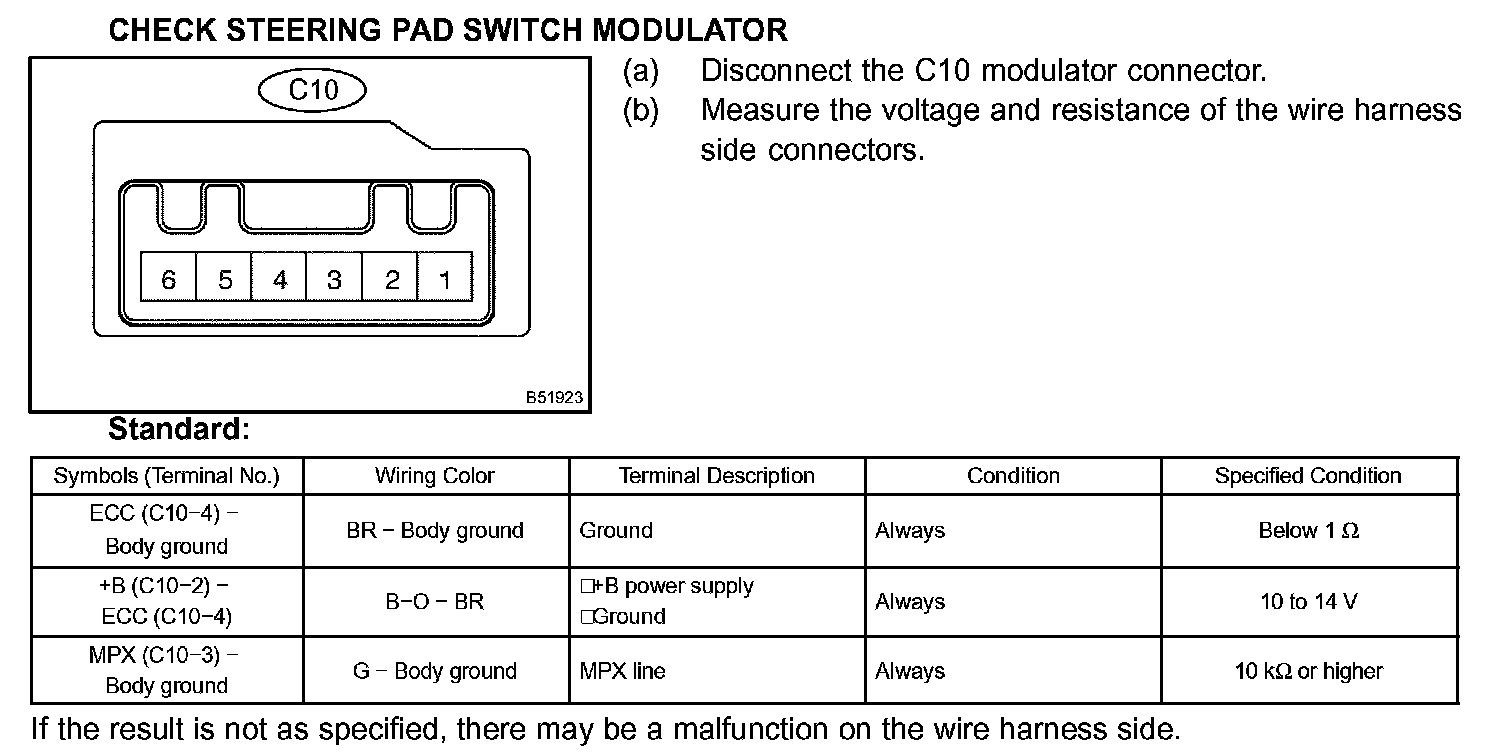

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):

Terminals Of Control Module/Pinouts:

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):
