Air Bag

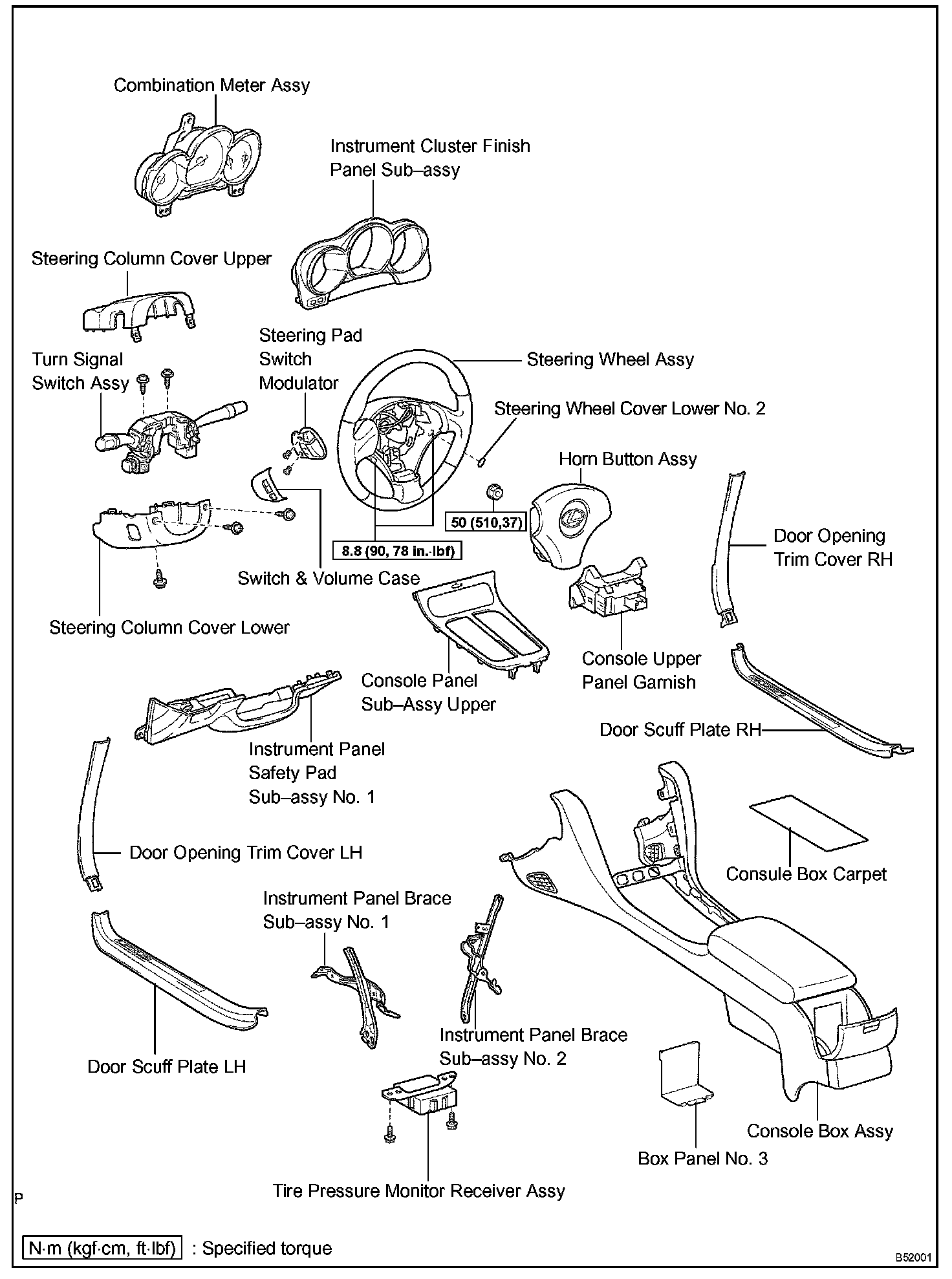

Front Passenger Airbag Assy Part 1:

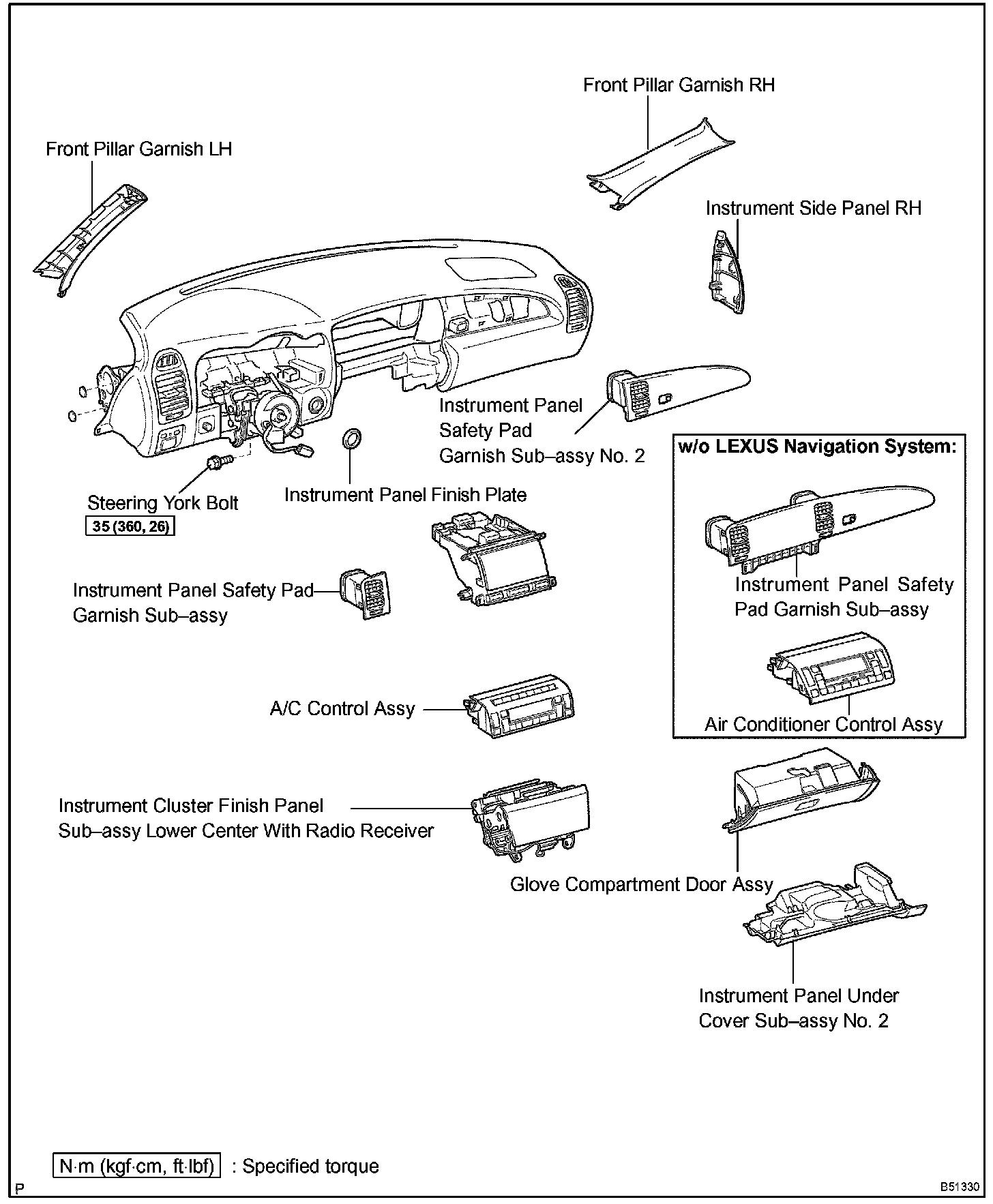

Front Passenger Airbag Assy Part 3:

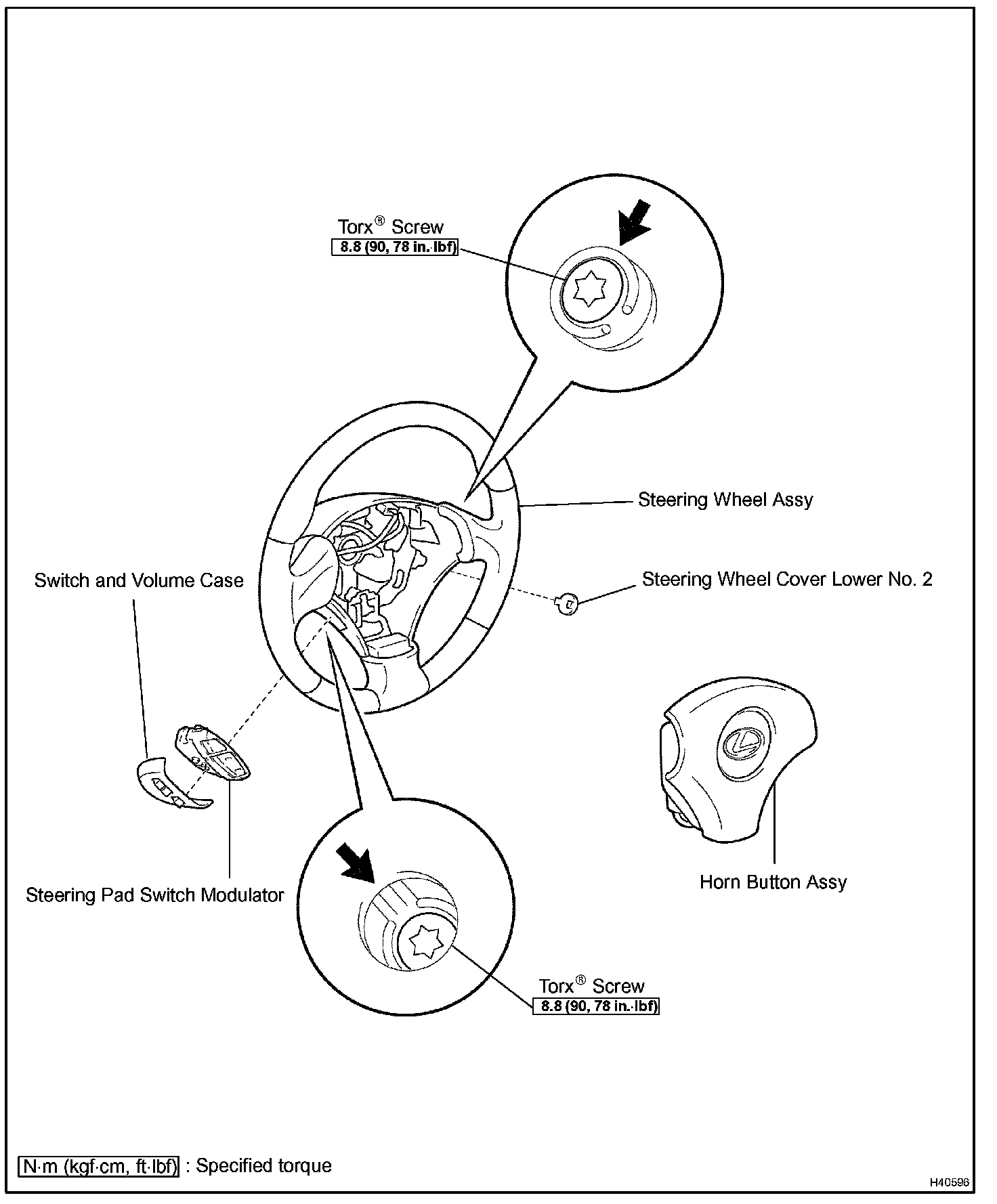

Horn Button Assy:

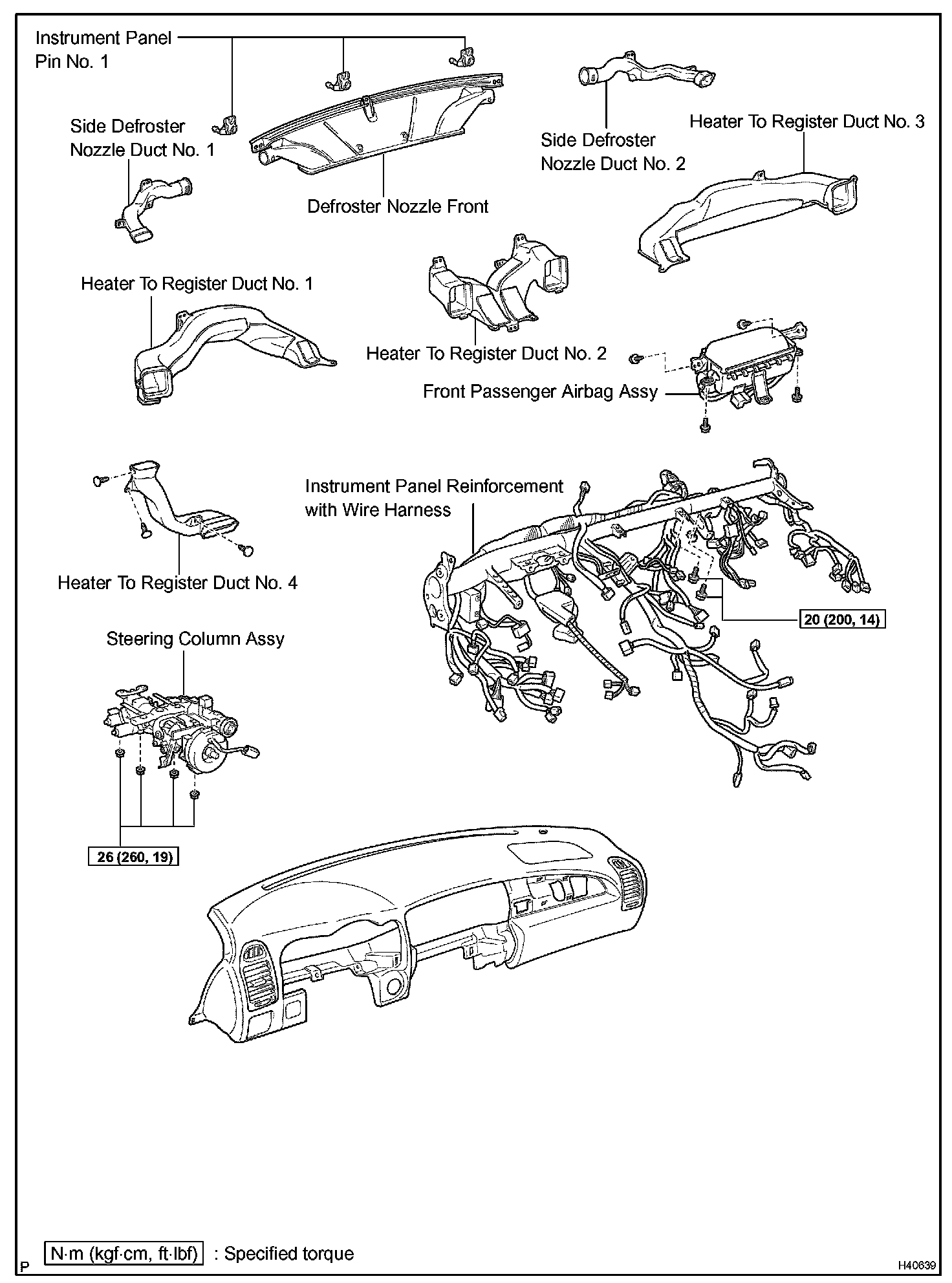

Front Passenger Airbag Assy Part 2:
