Transaxle Transaxle Control Cable Assembly
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Transaxle Transaxle Control Cable Assembly: Components

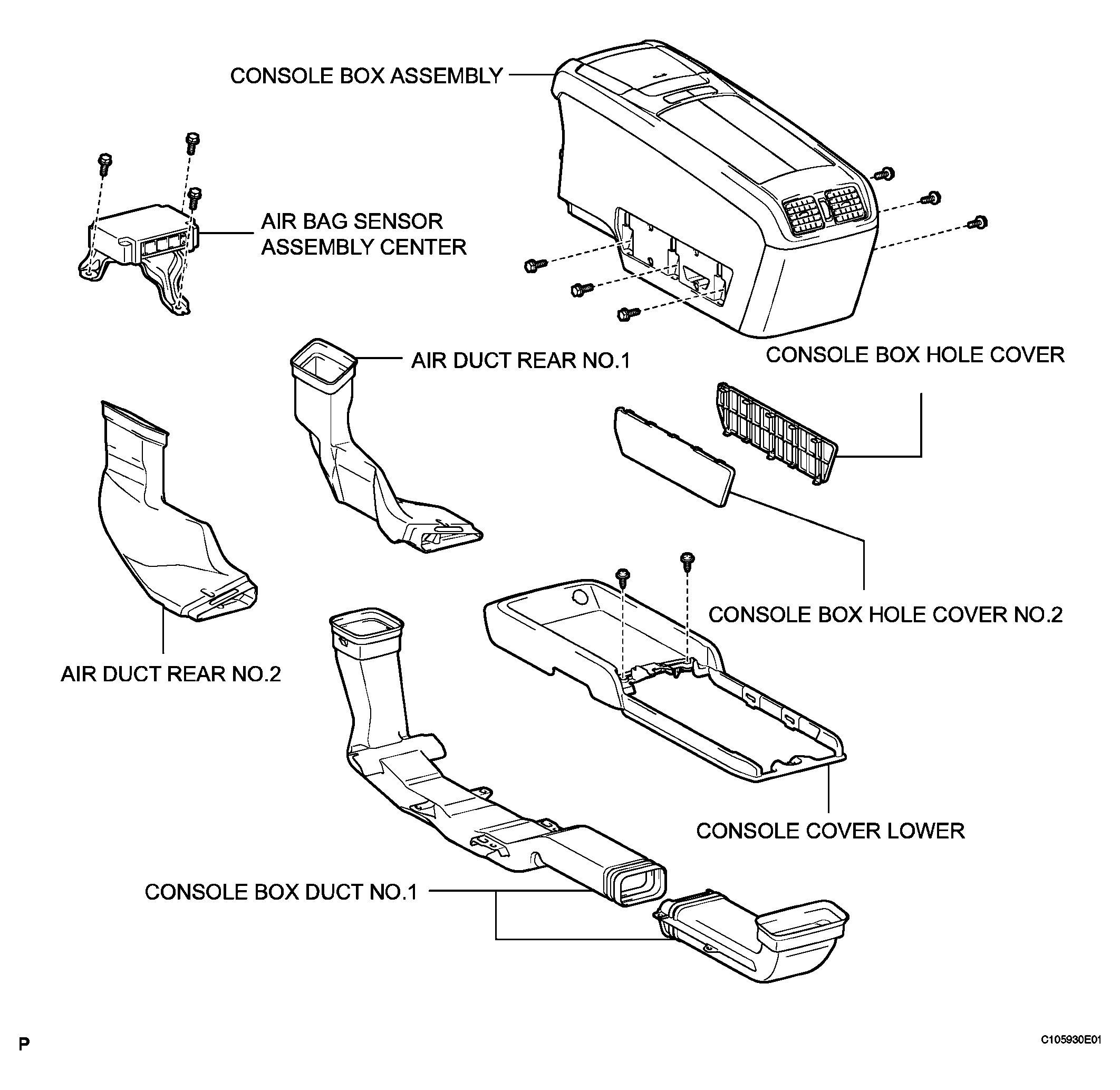

Fig 1: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

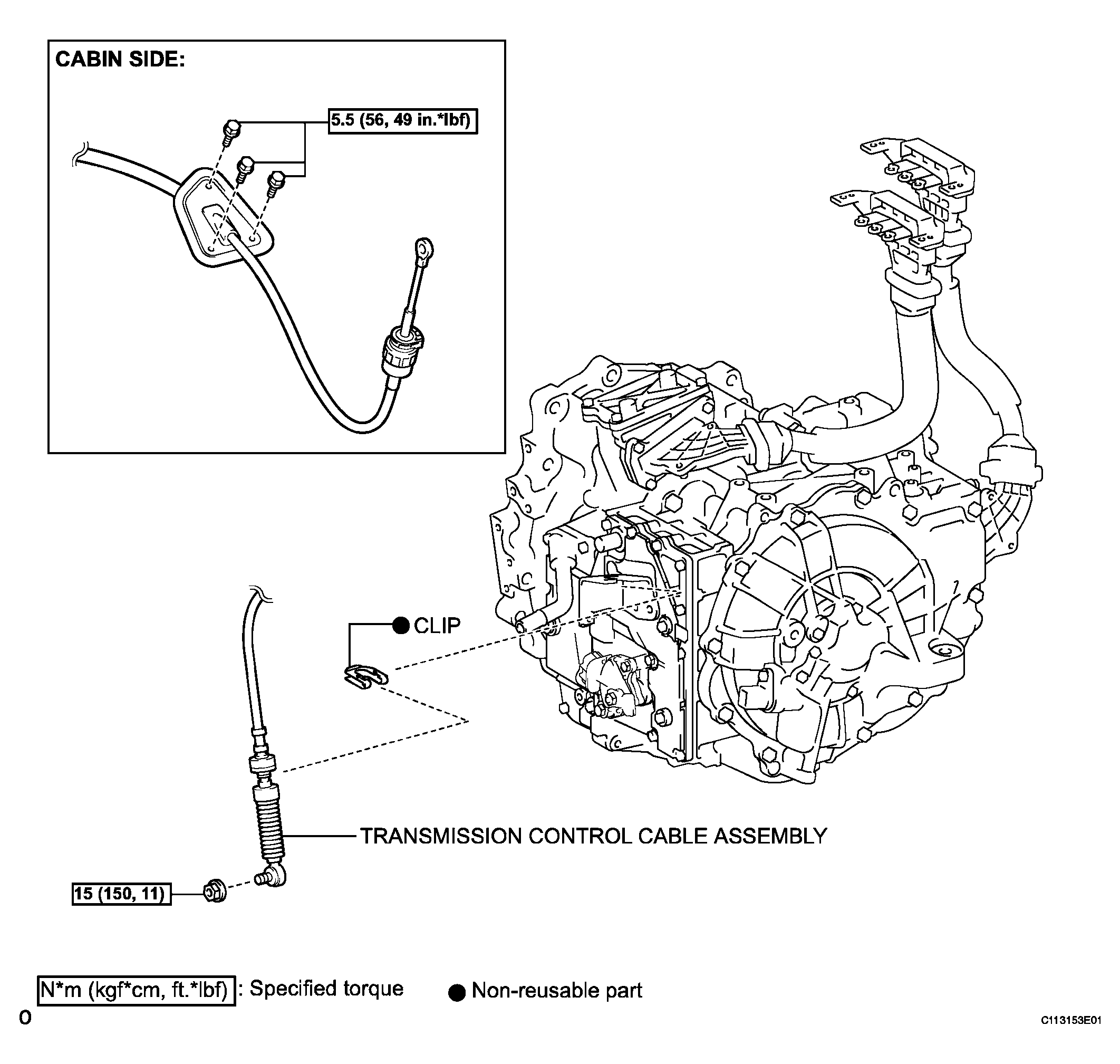

Fig 2: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

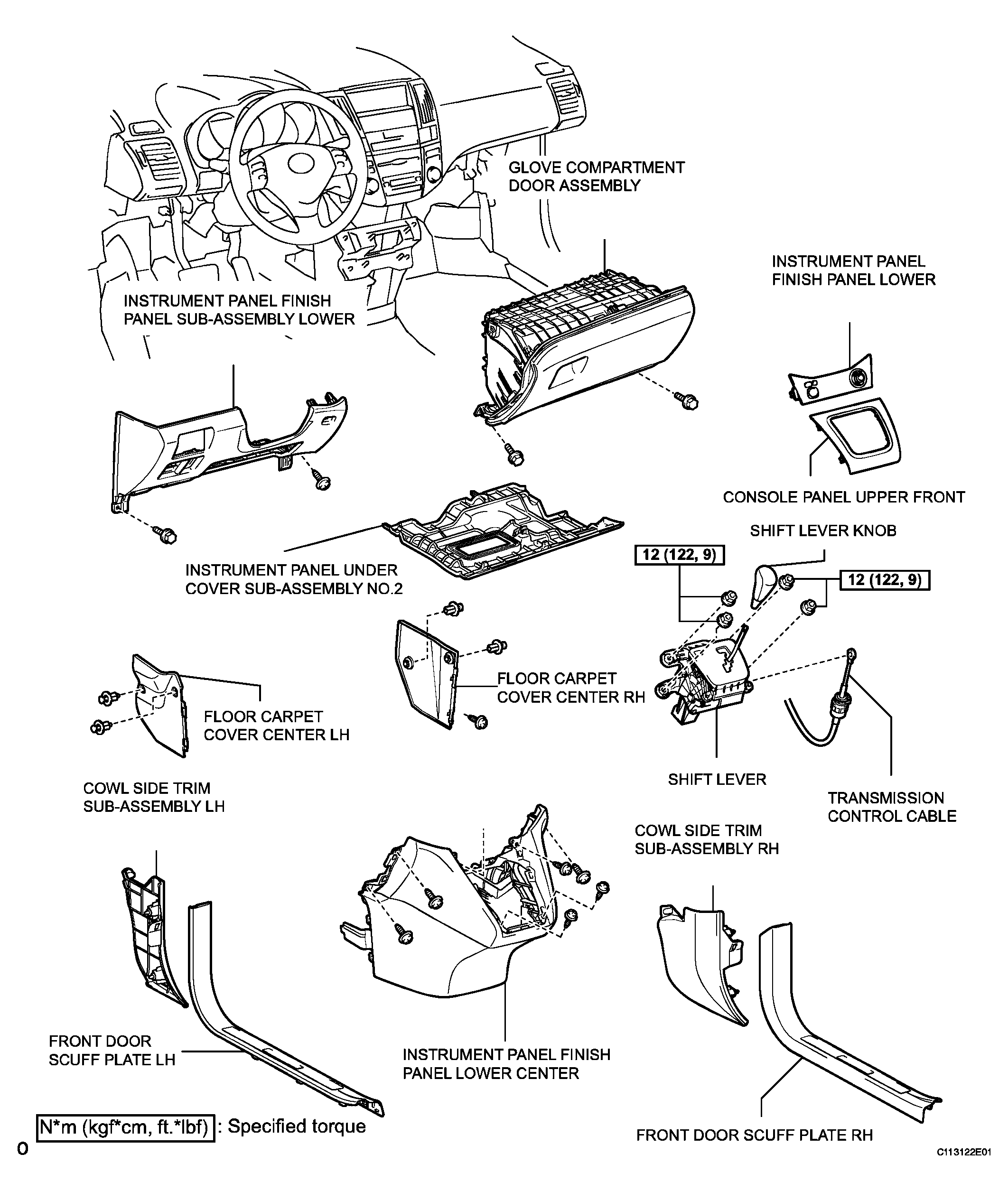

Fig 4: Identifying Transaxle Control Cable Assembly Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
