Oil Pump Assembly: Components

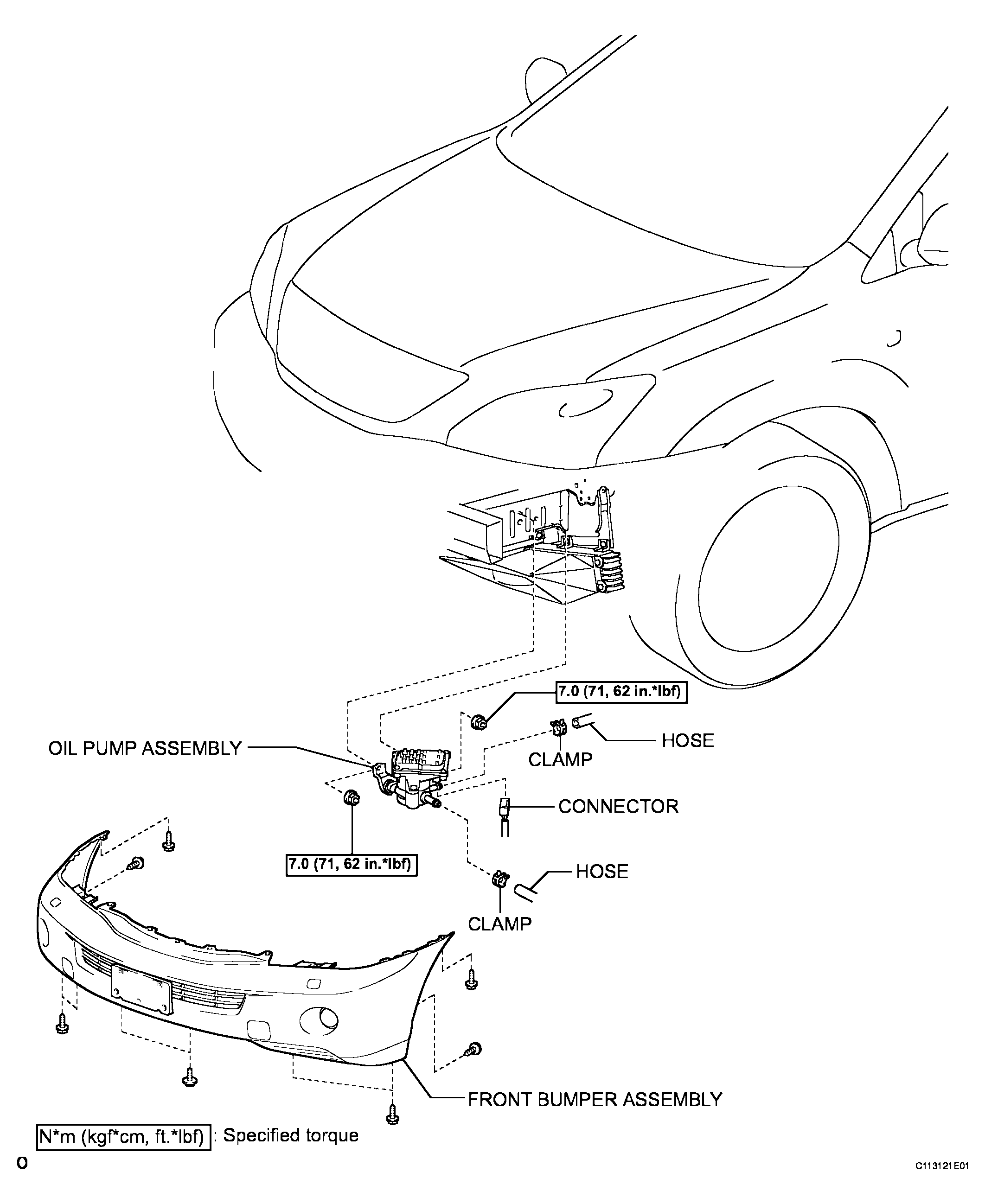

Fig 1: Oil Pump Assembly Replacement Components With Torque Specifications
G04112682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
