System Diagram

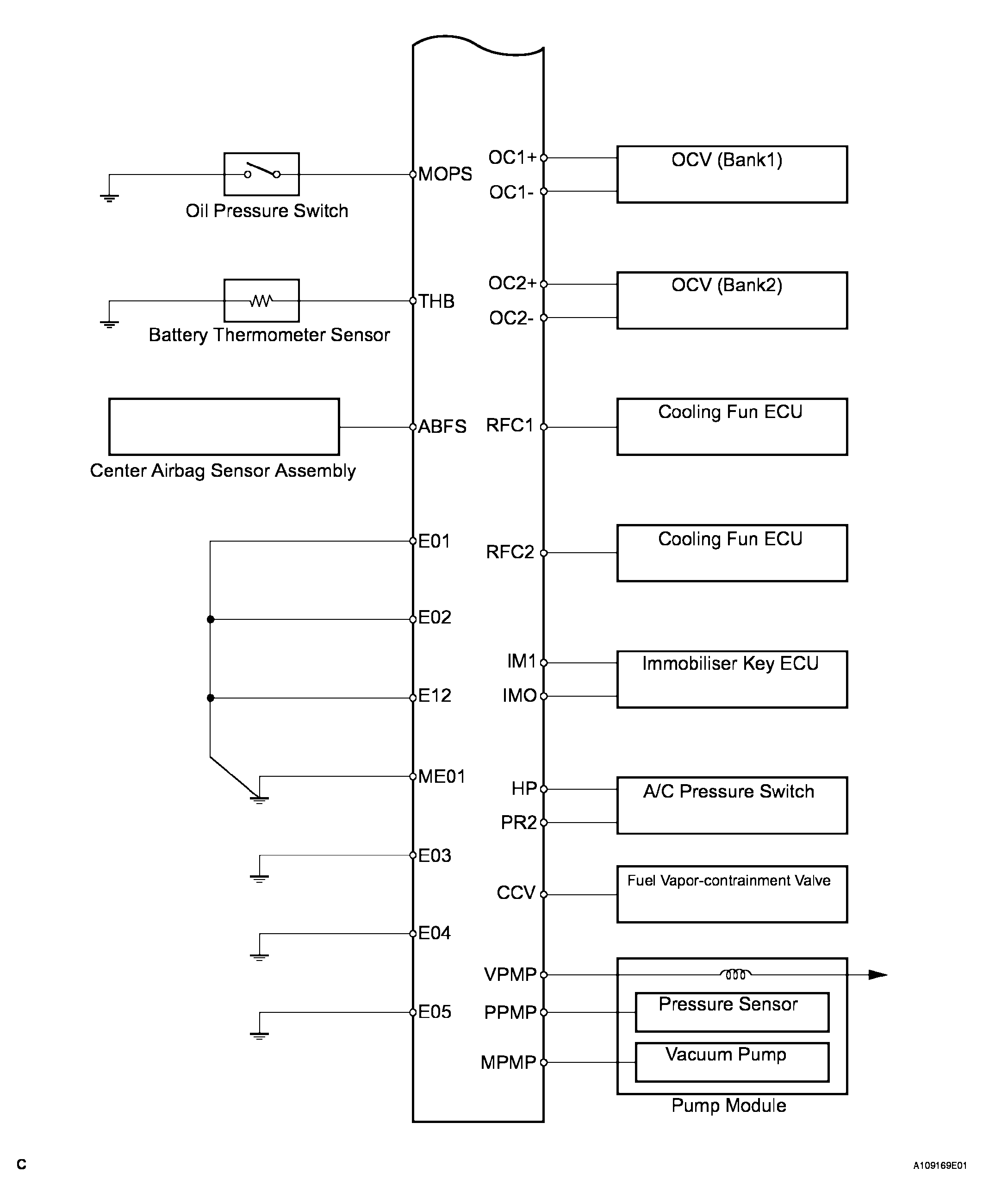

Fig 1: SFI System Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

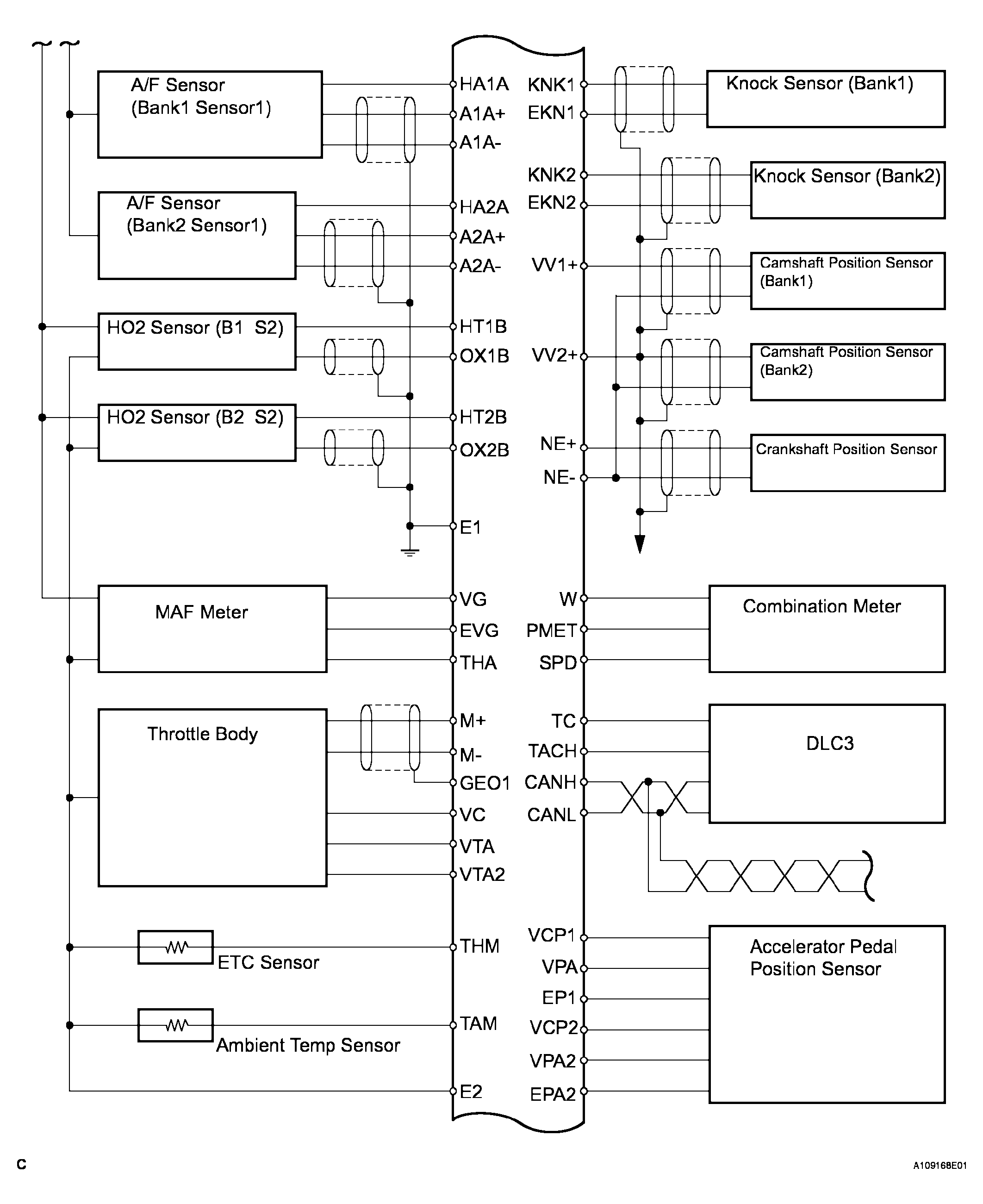

Fig 2: SFI System Diagram (2 Of 3)

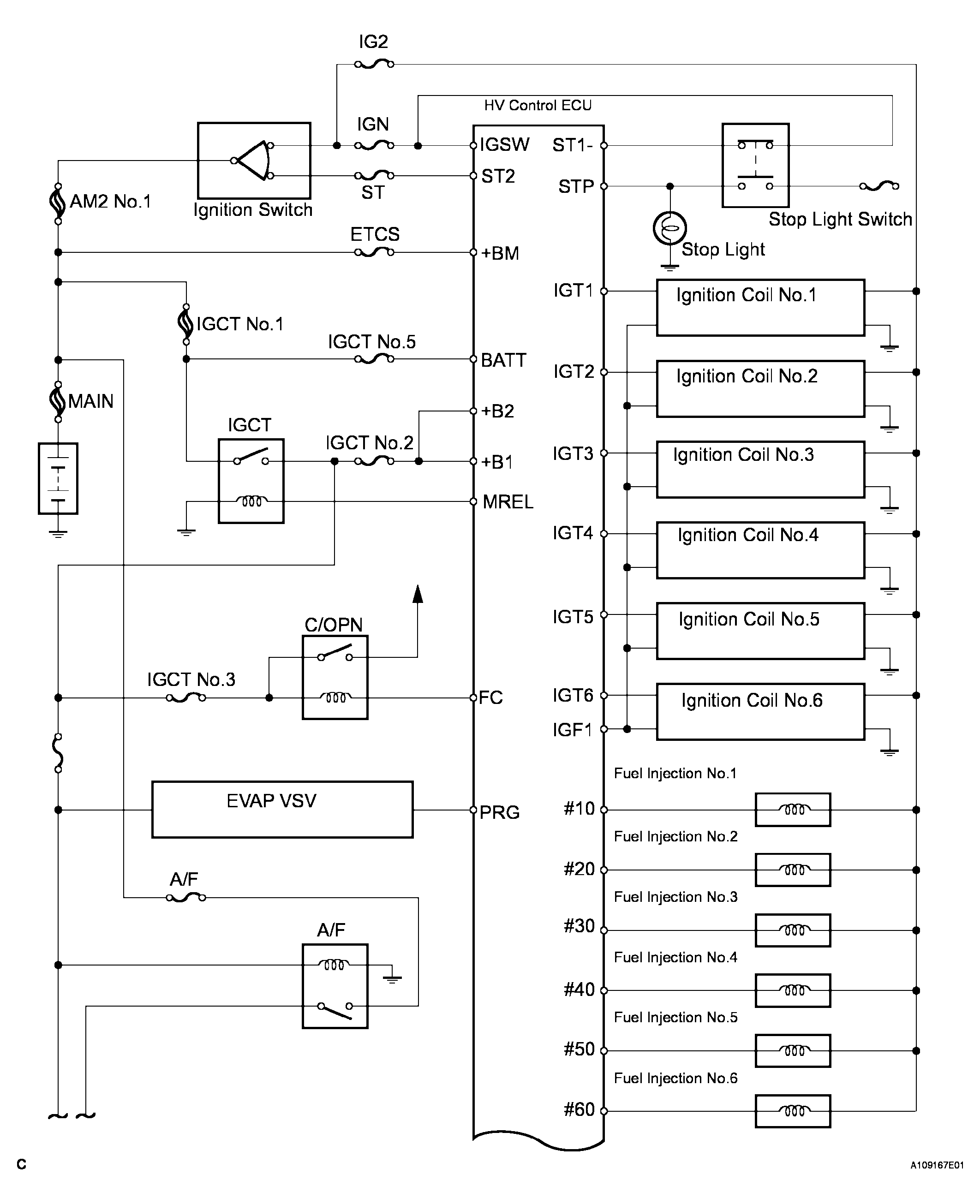

Fig 3: SFI System Diagram (3 Of 3)
