Camshaft Timing Oil Control Valve Assembly: Removal

  1. REMOVE ENGINE ROOM SIDE LH COVER (See  REMOVAL  )
  2. REMOVE ENGINE ROOM COVER SIDE (See  REMOVAL  )
  3. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  4. REMOVE AIR CLEANER CAP W/ INLET (See  REMOVAL   )
  5. REMOVE AIR CLEANER CASE W/ RESONATOR (See  REMOVAL   )
  6. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.

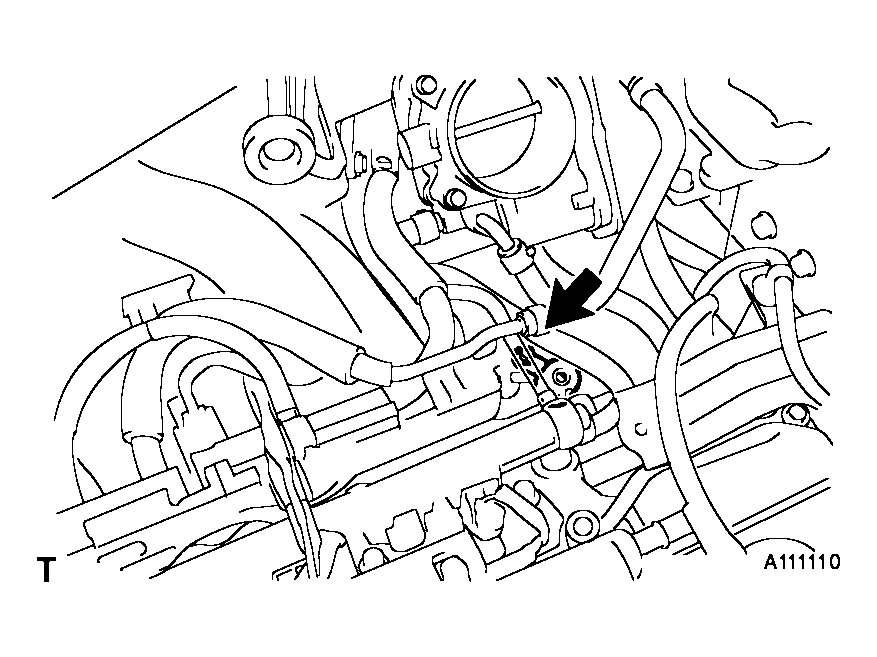

      Fig 1: Identifying Bolt And Oil Control Valve (for Bank 1)
      G04110852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.

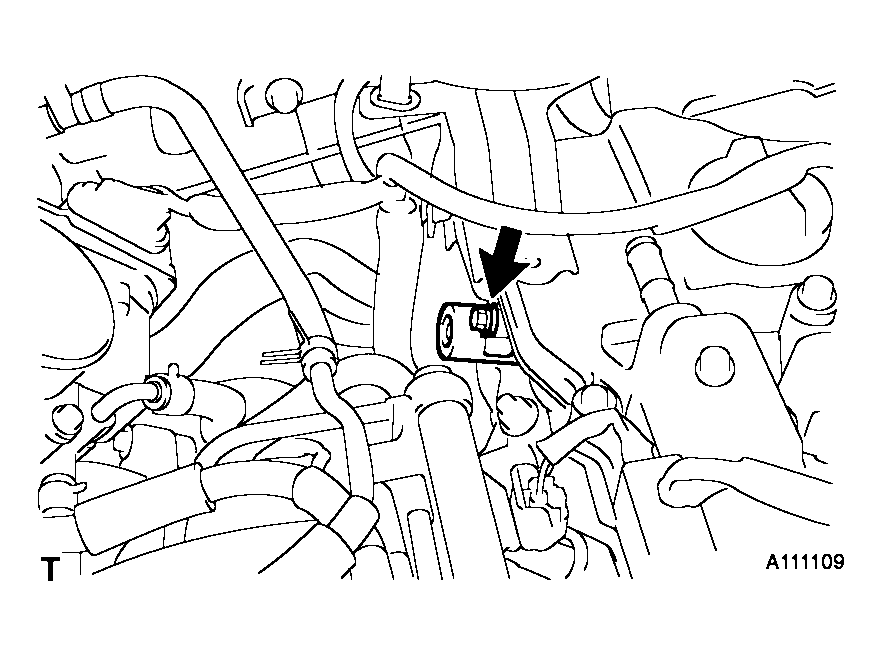

      Fig 2: Identifying Bolt And Oil Control Valve (For Bank 2)
      G04110853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
