Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Diode 1 In rear J/B. See Figure.
Diode 2 In rear J/B. See Figure.
Diode 3 In rear J/B. See Figure.
Engine Room R/B On left side of engine compartment. See Figure.
Fusible Link Block Left side of engine compartment. See Figure.

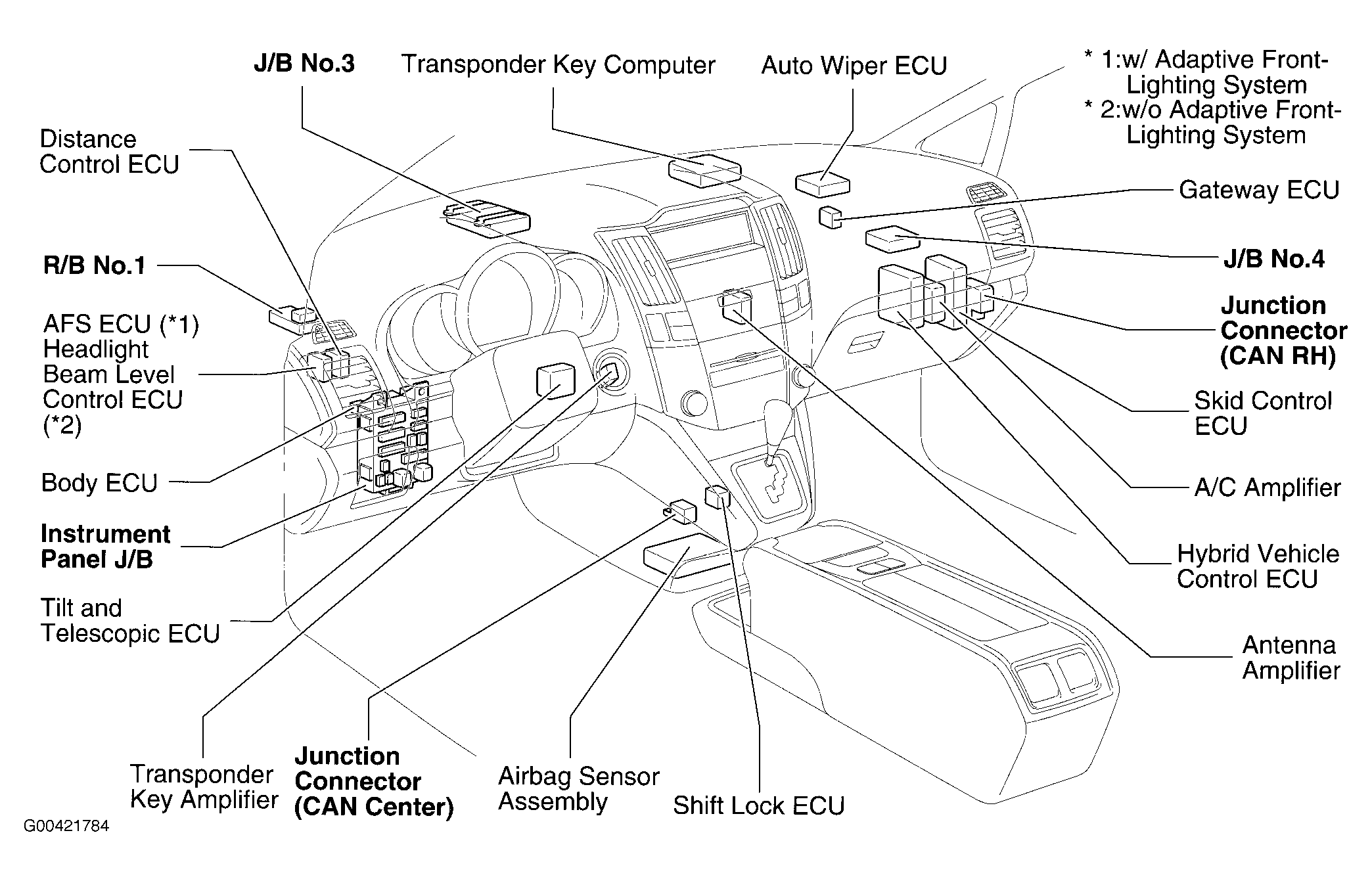

Instrument Panel J/B Left side of dash. See Figure.
J/B No. 2 Left side of engine compartment. See Figure.
J/B No. 3 Left side of dash. See Figure.
J/B No. 4 Right side of dash. See Figure.

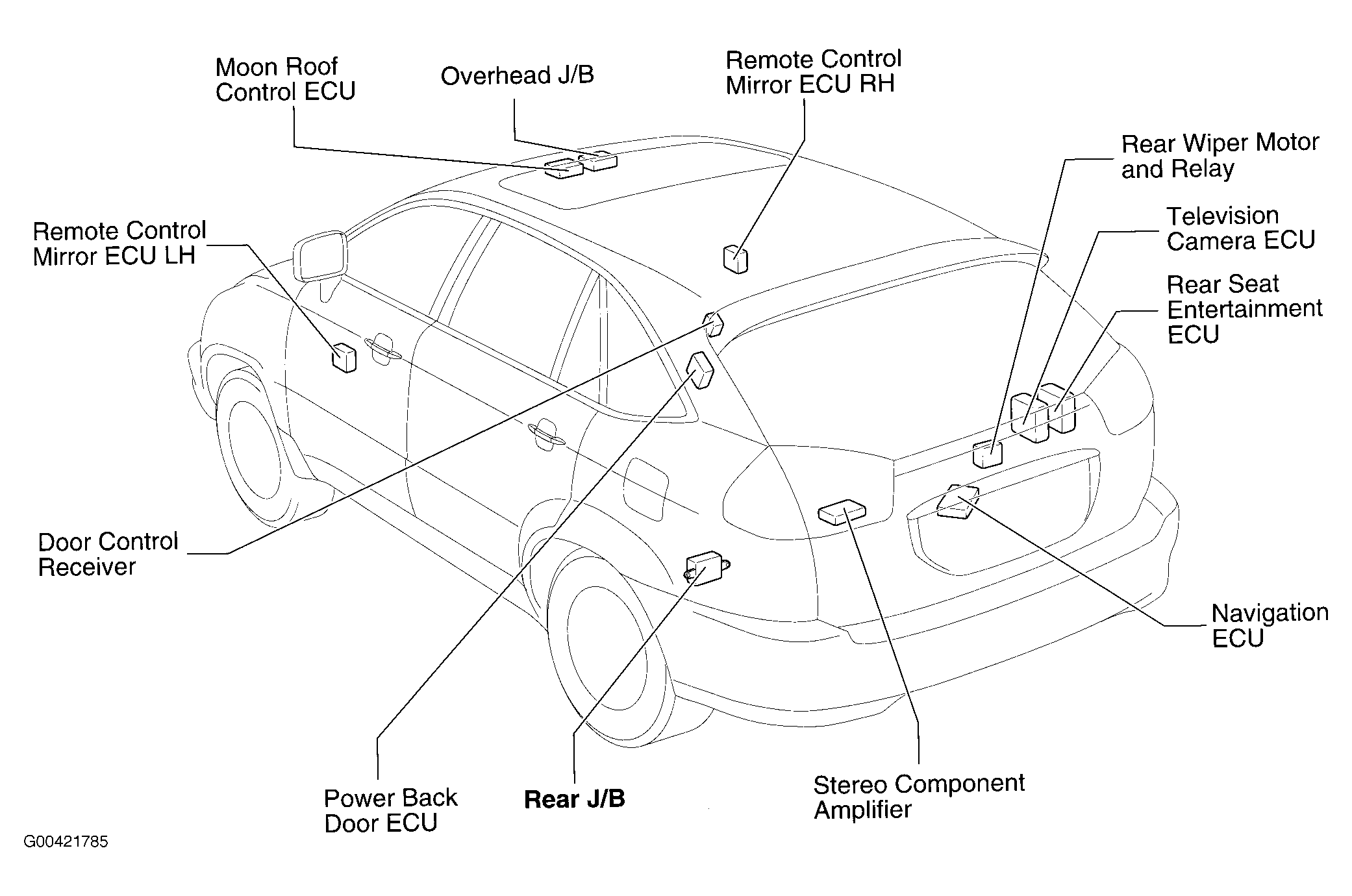

Overhead J/B Front center of roof. See Figure.
R/B No. 1 Left side of dash. See Figure.
R/B No. 3 Left side of engine compartment. See Figure.
R/B No. 4 Left side of engine compartment. See Figure.
Rear J/B Left rear side of cargo area. See Figure.
