Seat Heater: Notes

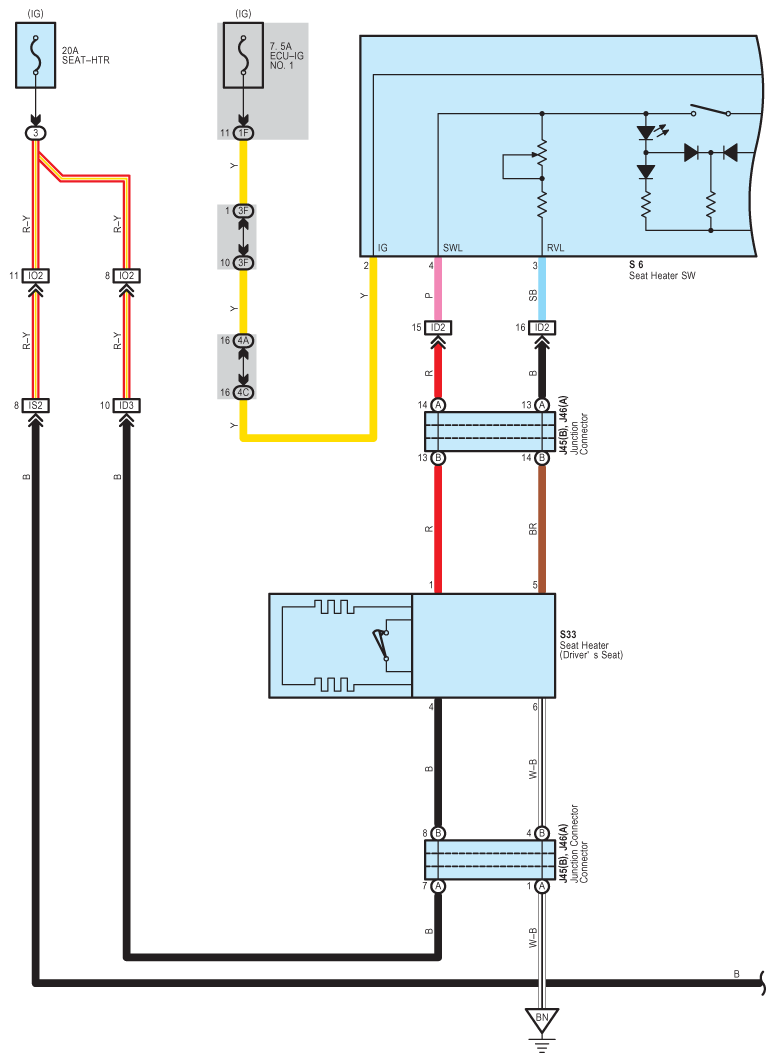

Fig 1: Seat Heater Wiring Diagram (1 Of 2)
G08914875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

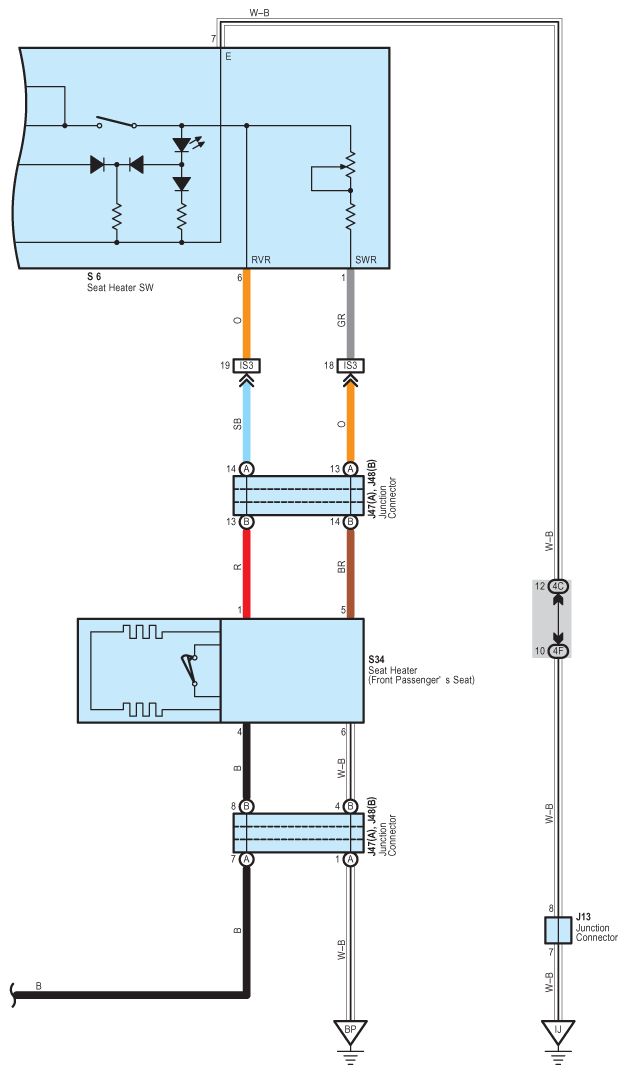

Fig 2: Seat Heater Wiring Diagram (2 Of 2)
G08914876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
