Remote Control Mirror and Mirror Heater with Memory: Notes

Fig 1: Remote Control Mirror And Mirror Heater With Memory Wiring Diagram (1 Of 5)
G08914858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

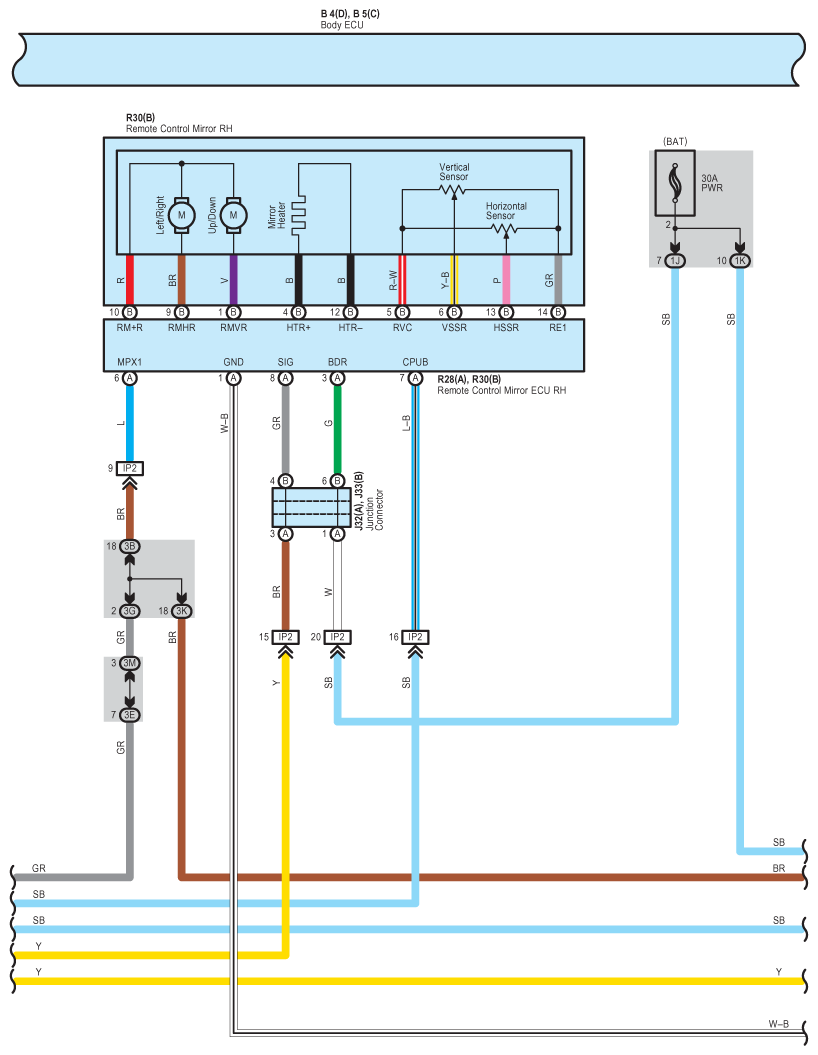

Fig 2: Remote Control Mirror And Mirror Heater With Memory Wiring Diagram (2 Of 5)
G08914859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

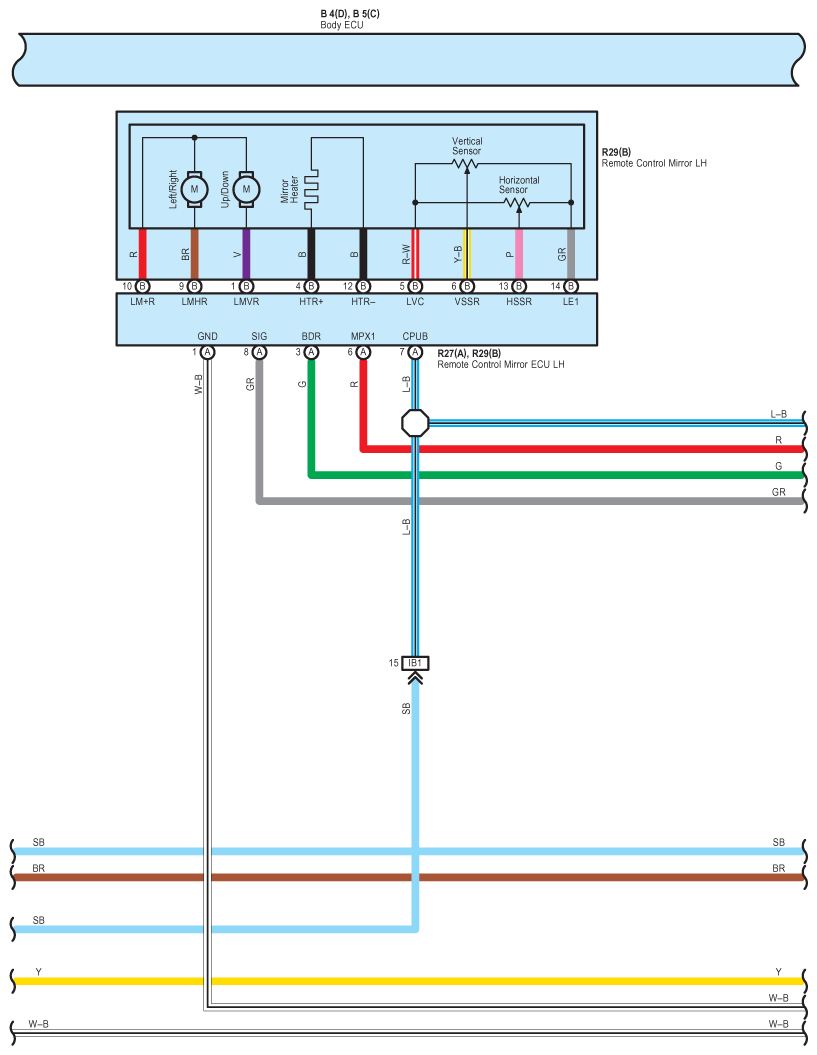

Fig 3: Remote Control Mirror And Mirror Heater With Memory Wiring Diagram (3 Of 5)
G08914860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

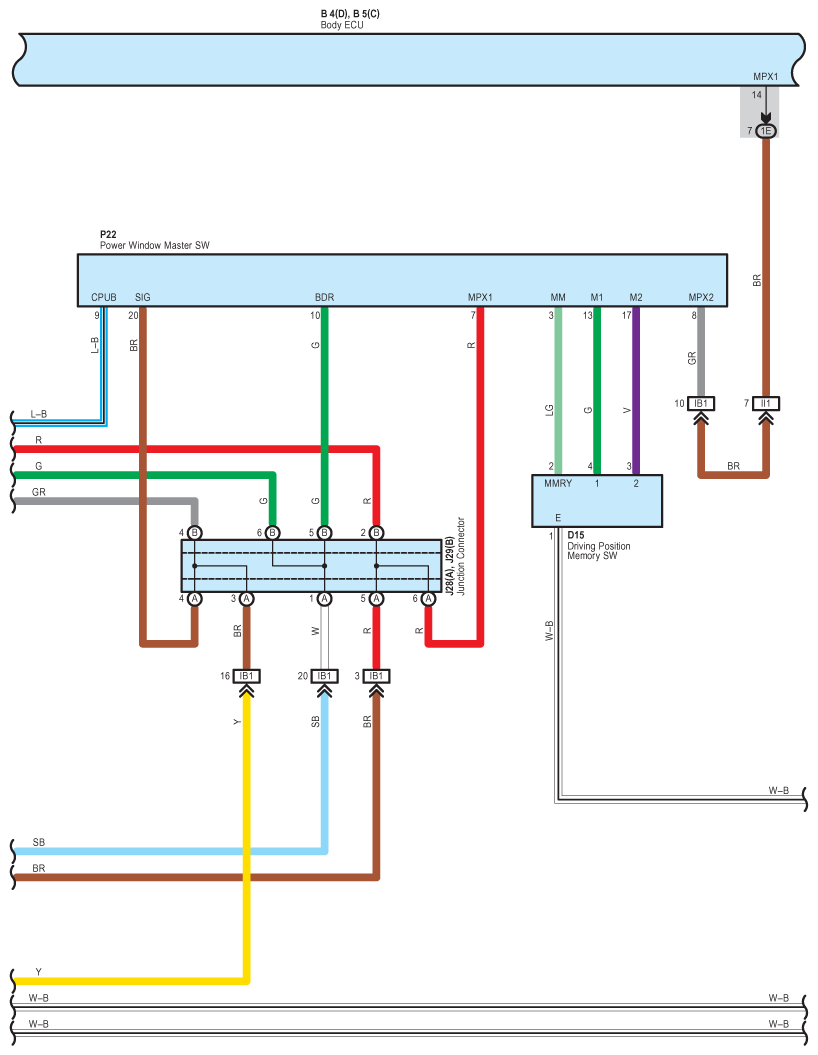

Fig 4: Remote Control Mirror And Mirror Heater With Memory Wiring Diagram (4 Of 5)
G08914861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

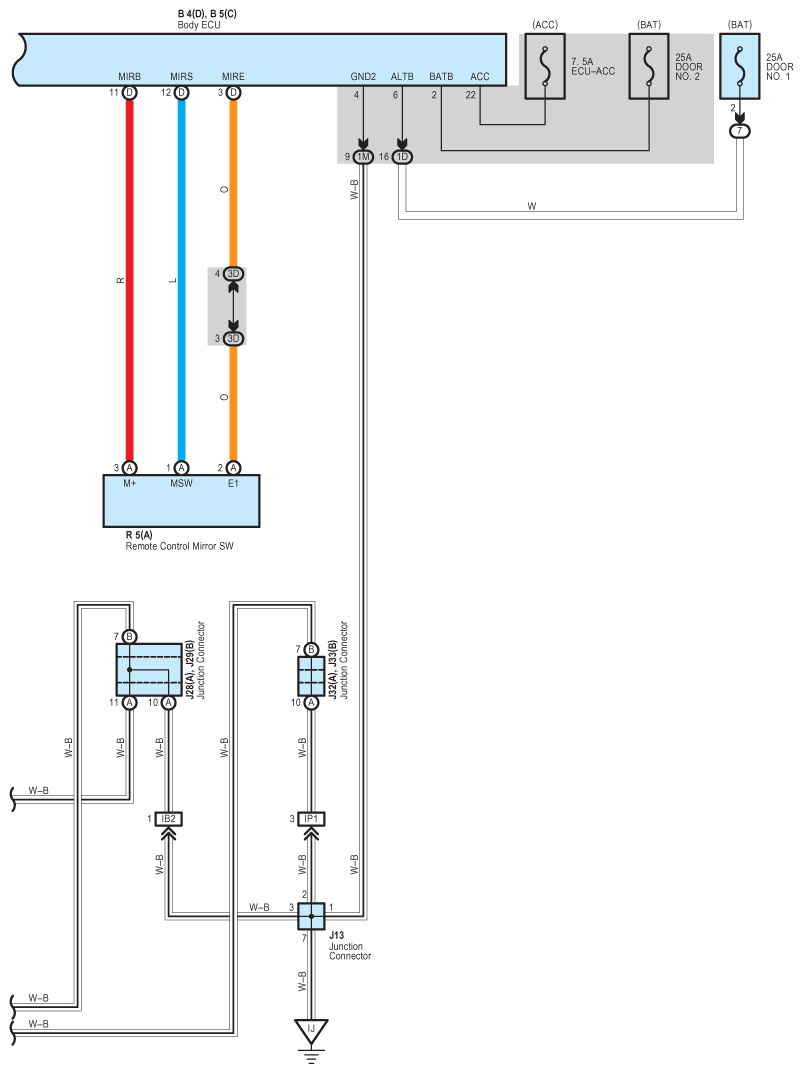

Fig 5: Remote Control Mirror And Mirror Heater With Memory Wiring Diagram (5 Of 5)
G08914862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
