Mutli Display without Navigation: Notes

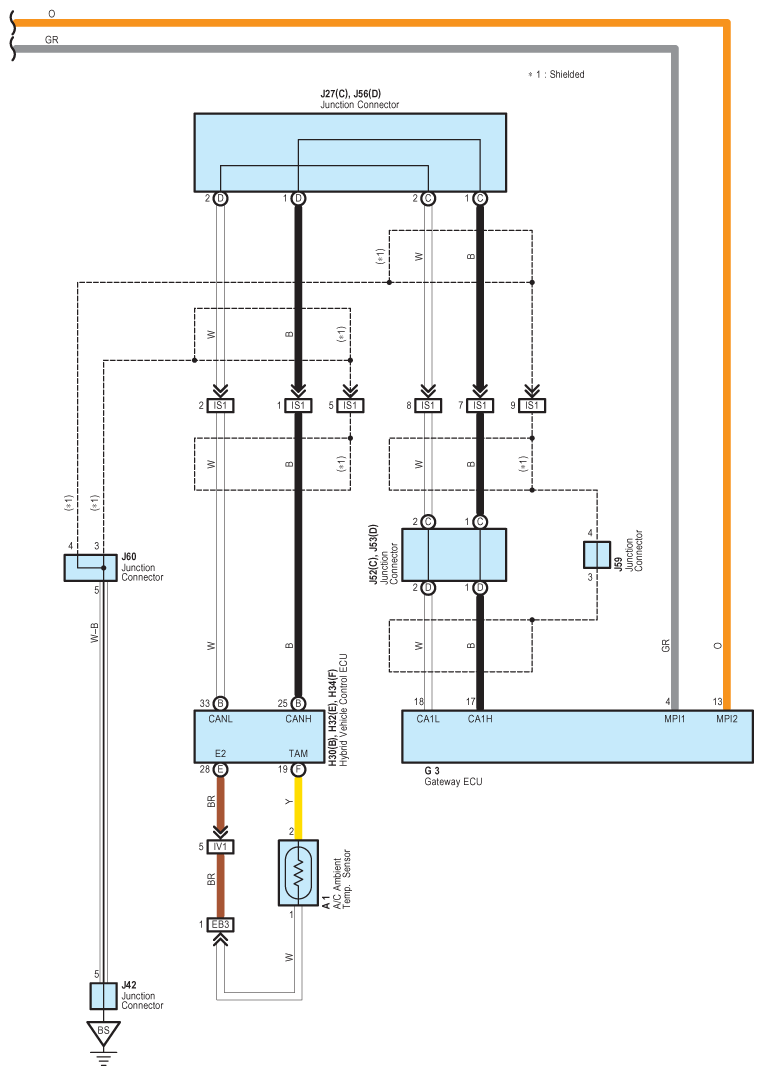

Fig 1: Mutli Display Without Navigation Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

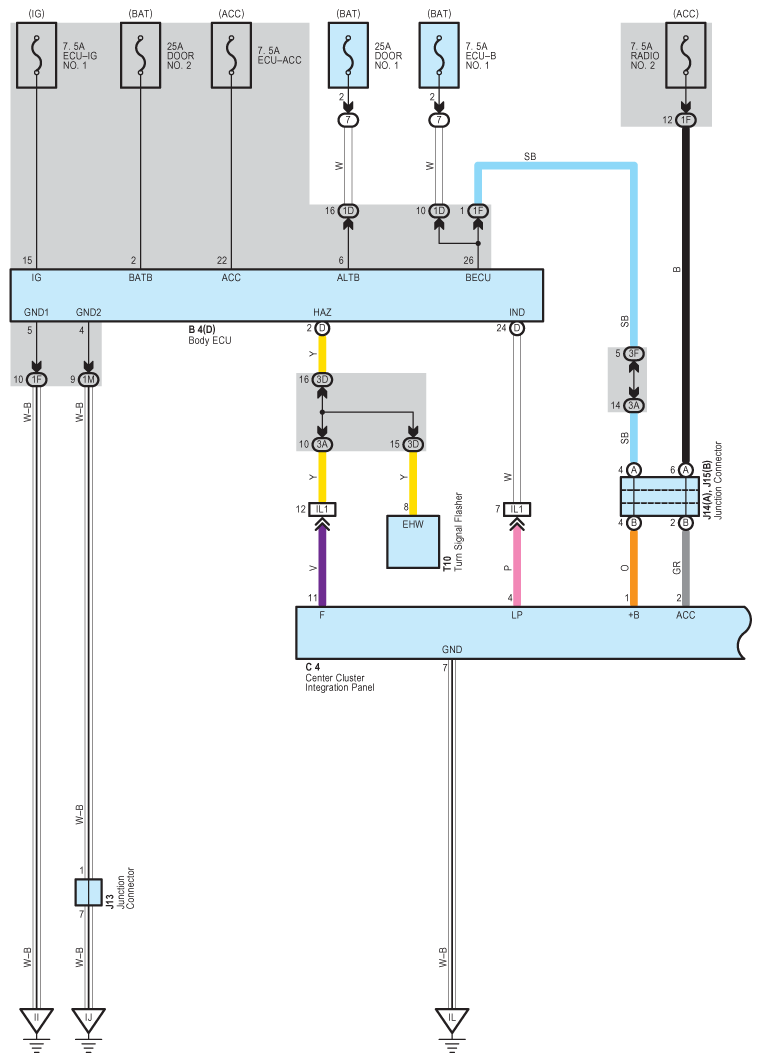

Fig 2: Mutli Display Without Navigation Wiring Diagram (2 Of 3)

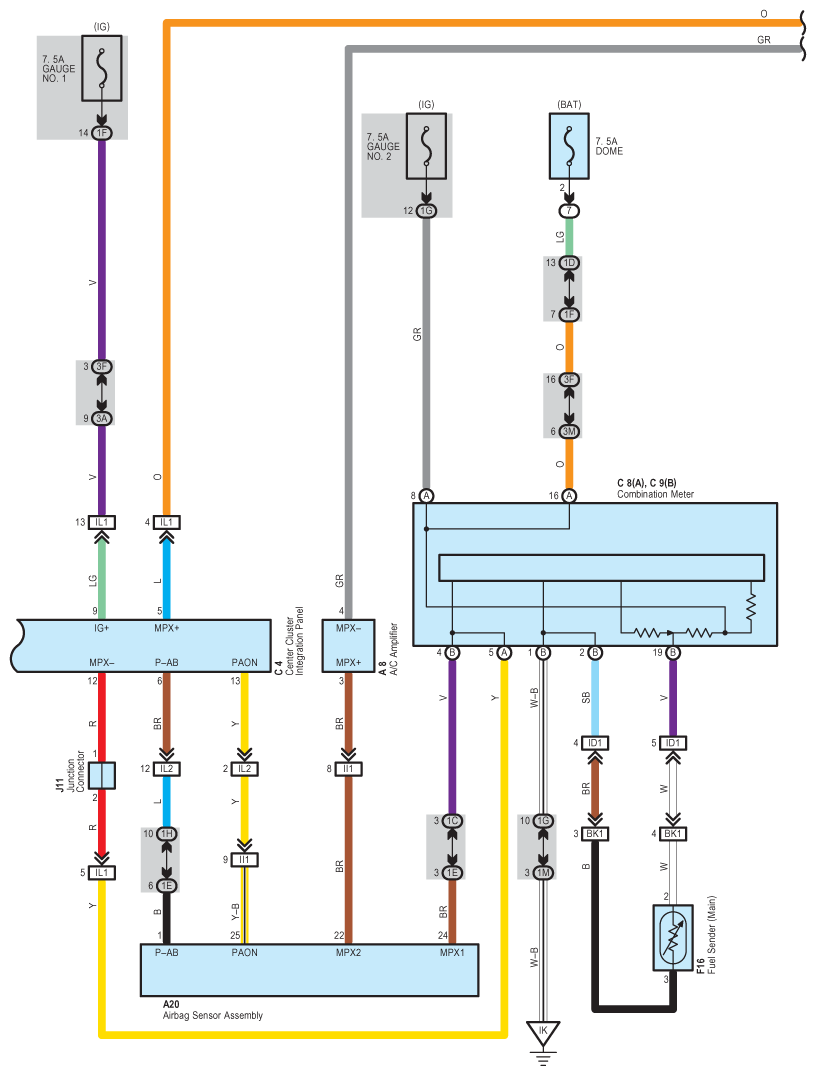

Fig 3: Mutli Display Without Navigation Wiring Diagram (3 Of 3)
