OEM System Circuits: Illumination: Notes

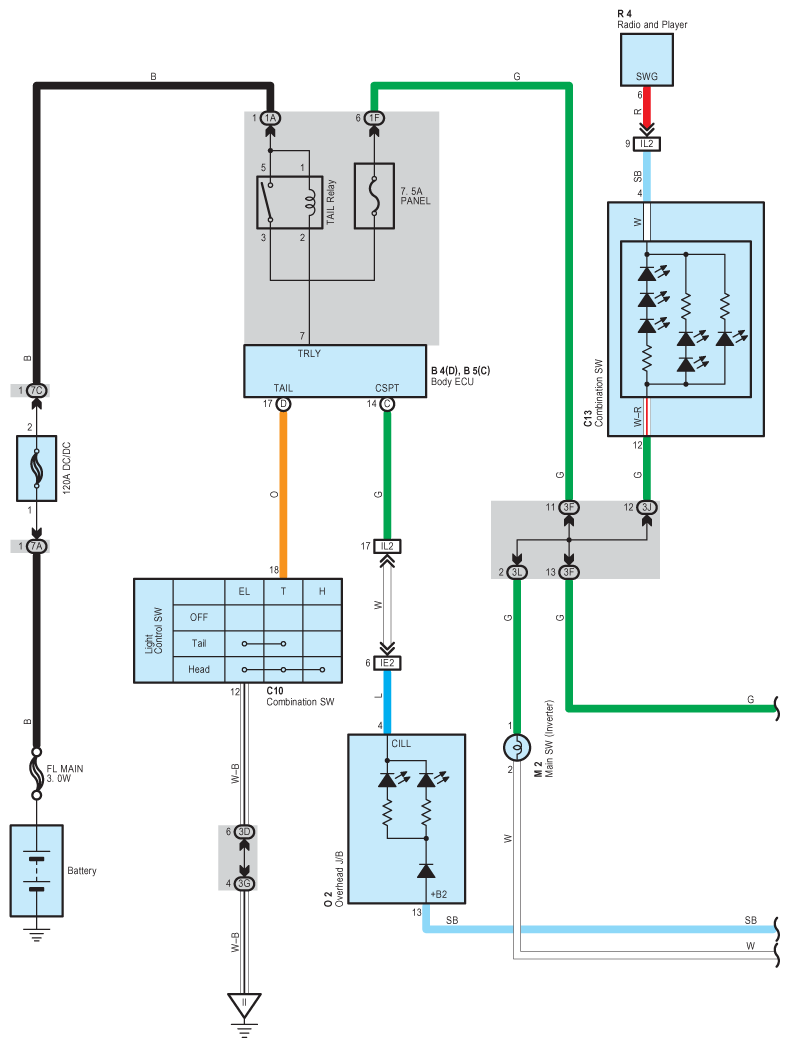

Fig 1: Illumination Wiring Diagram (1 Of 4)
G08914765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

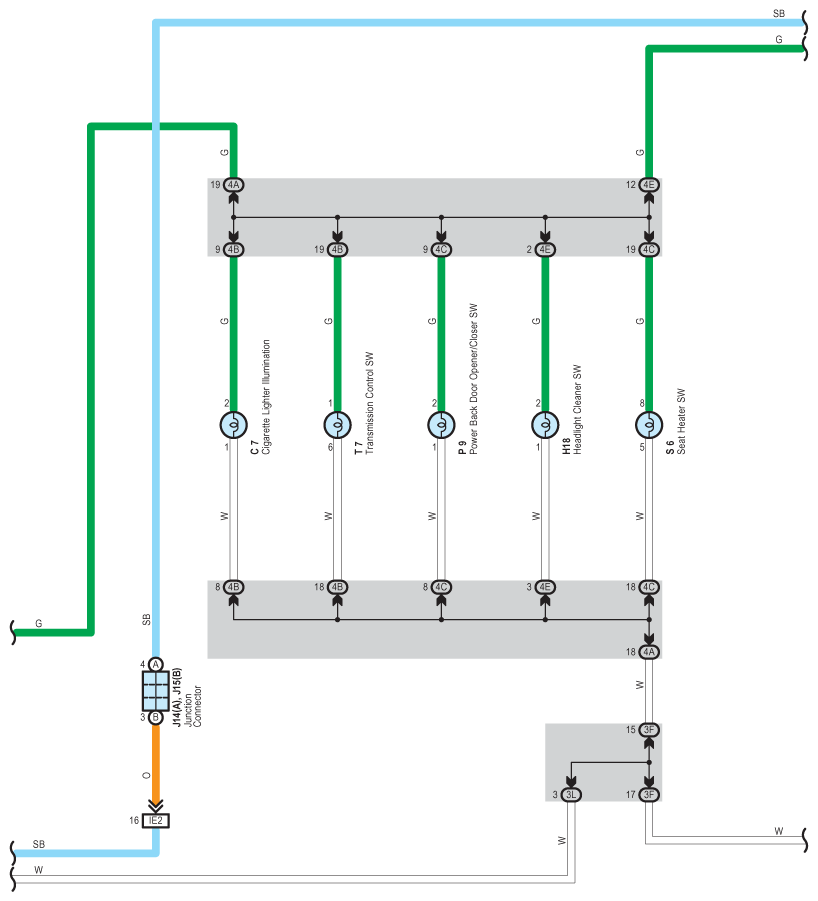

Fig 2: Illumination Wiring Diagram (2 Of 4)
G08914766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

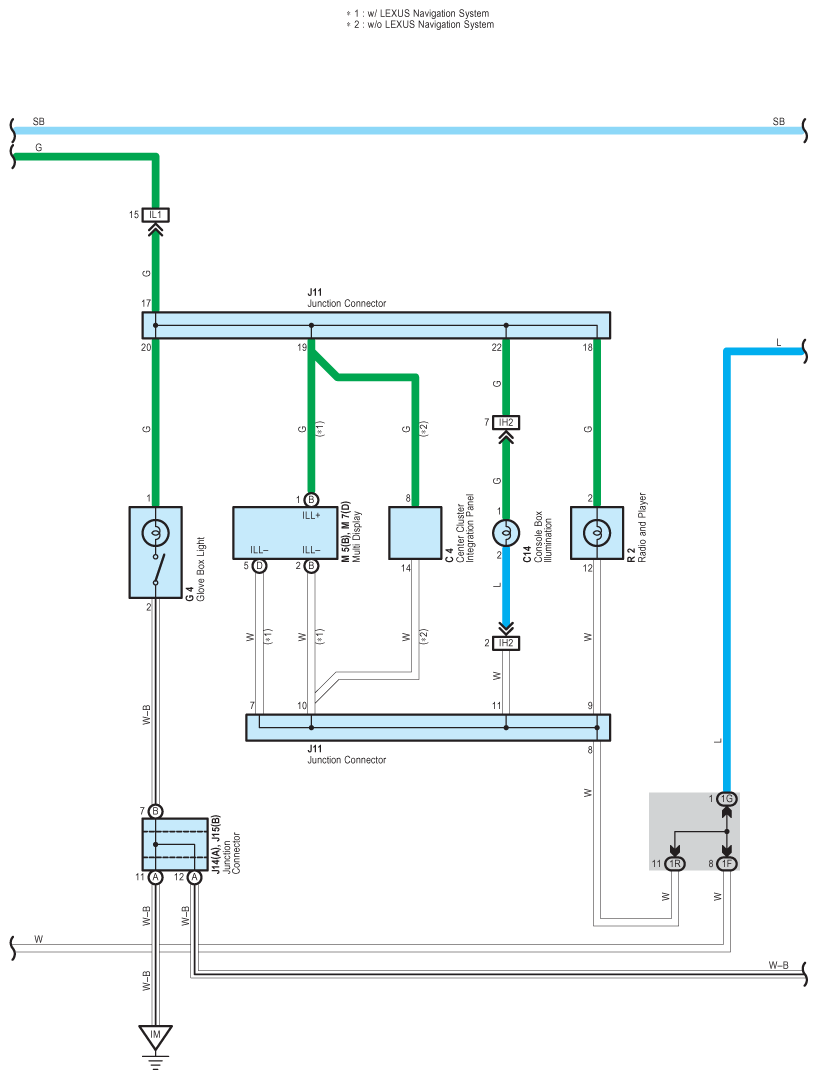

Fig 3: Illumination Wiring Diagram (3 Of 4)
G08914767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

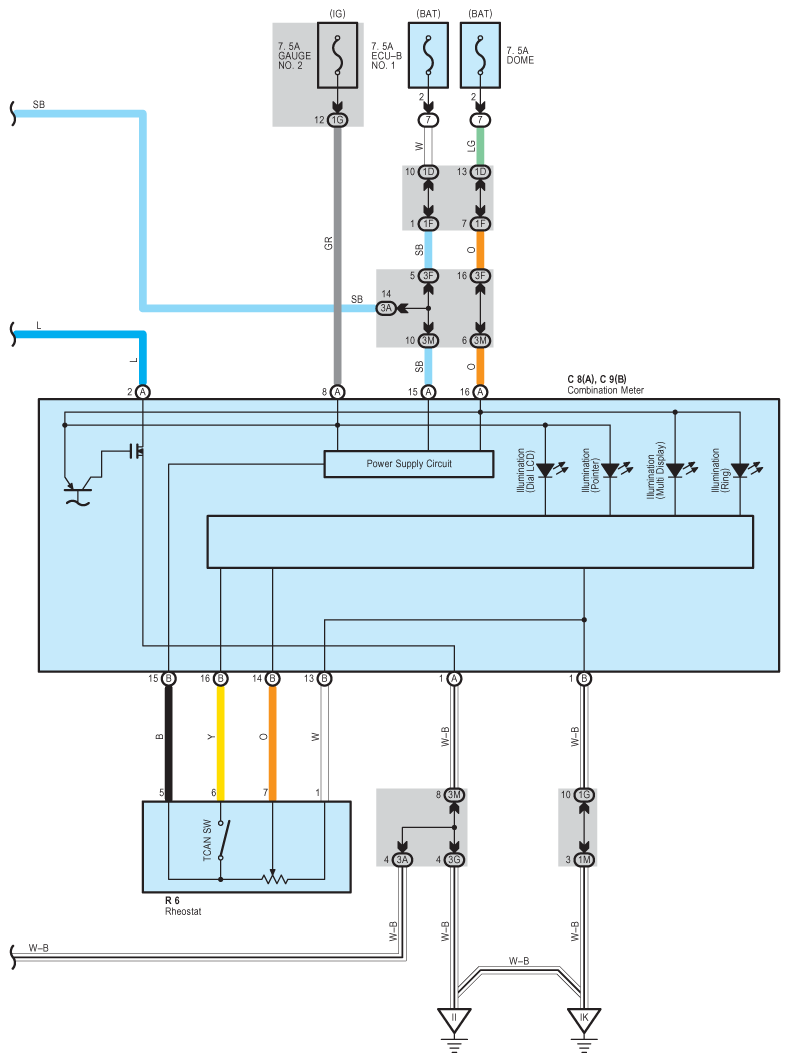

Fig 4: Illumination Wiring Diagram (4 Of 4)
G08914768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
