Headlight Beam Level Control: Notes

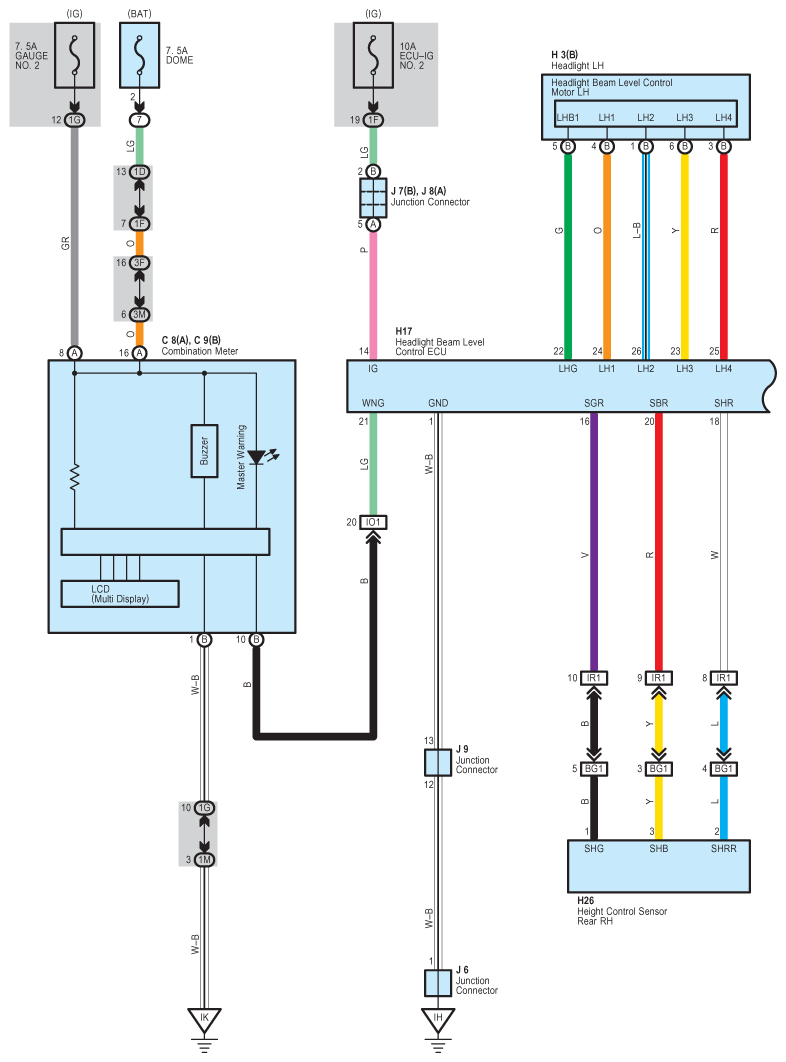

Fig 1: Headlight Beam Level Control Wiring Diagram (1 Of 2)

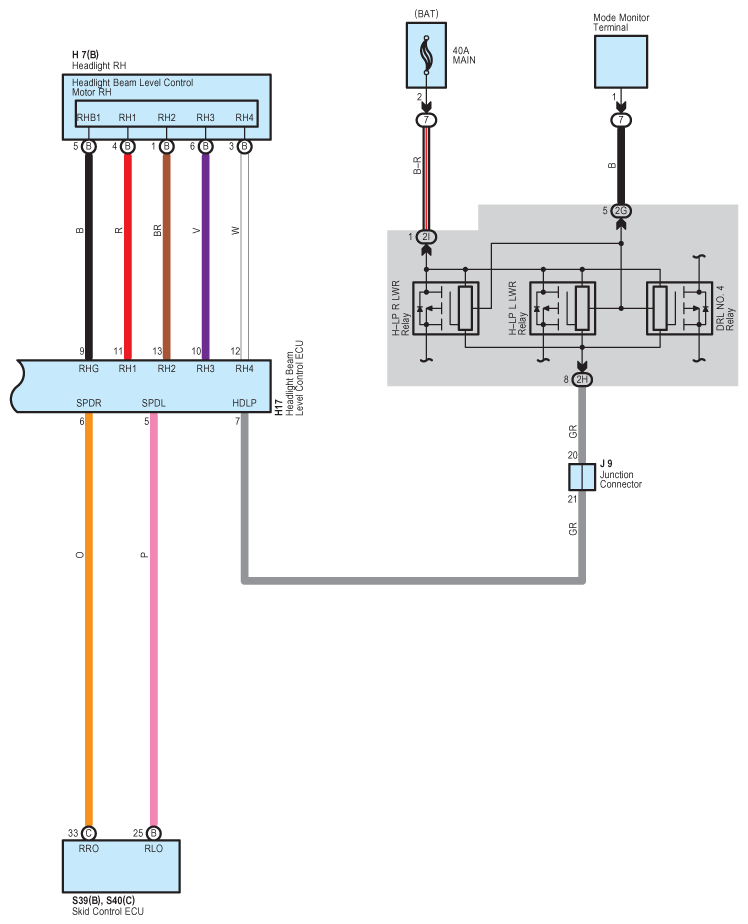

Fig 2: Headlight Beam Level Control Wiring Diagram (2 Of 2)
