Front Fog Light: Notes

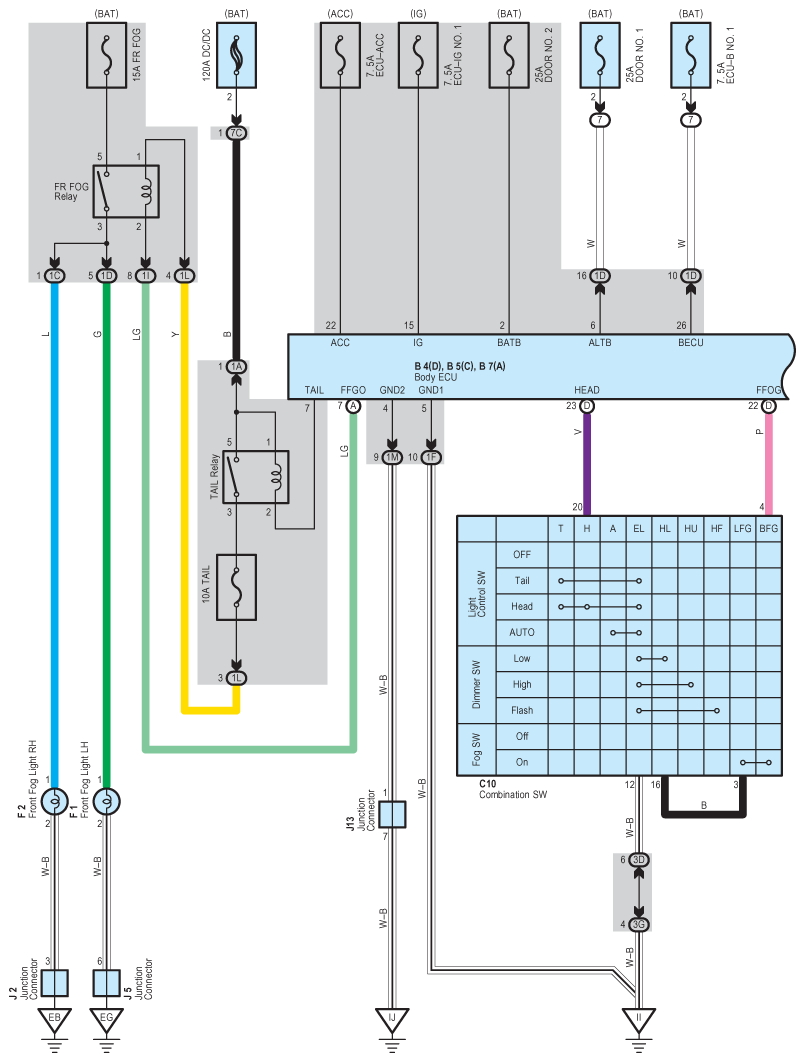

Fig 1: Front Fog Light Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Fog Light Wiring Diagram (2 Of 3)

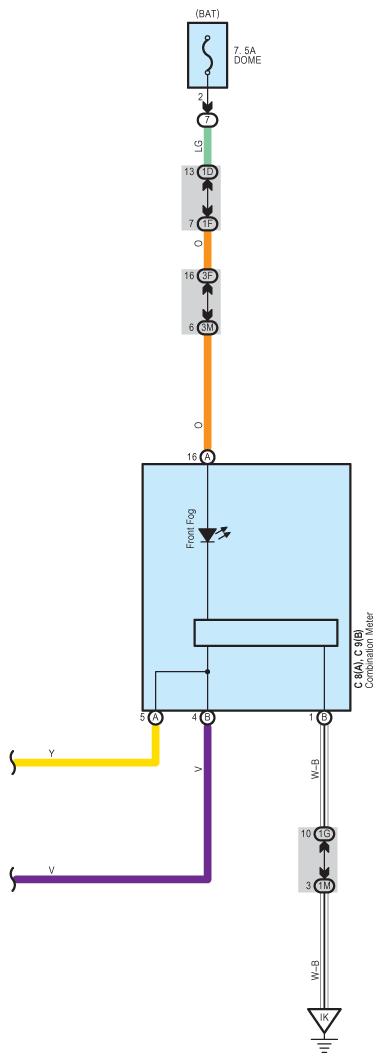

Fig 3: Front Fog Light Wiring Diagram (3 Of 3)
