Adaptive Front-Lighting System: Notes

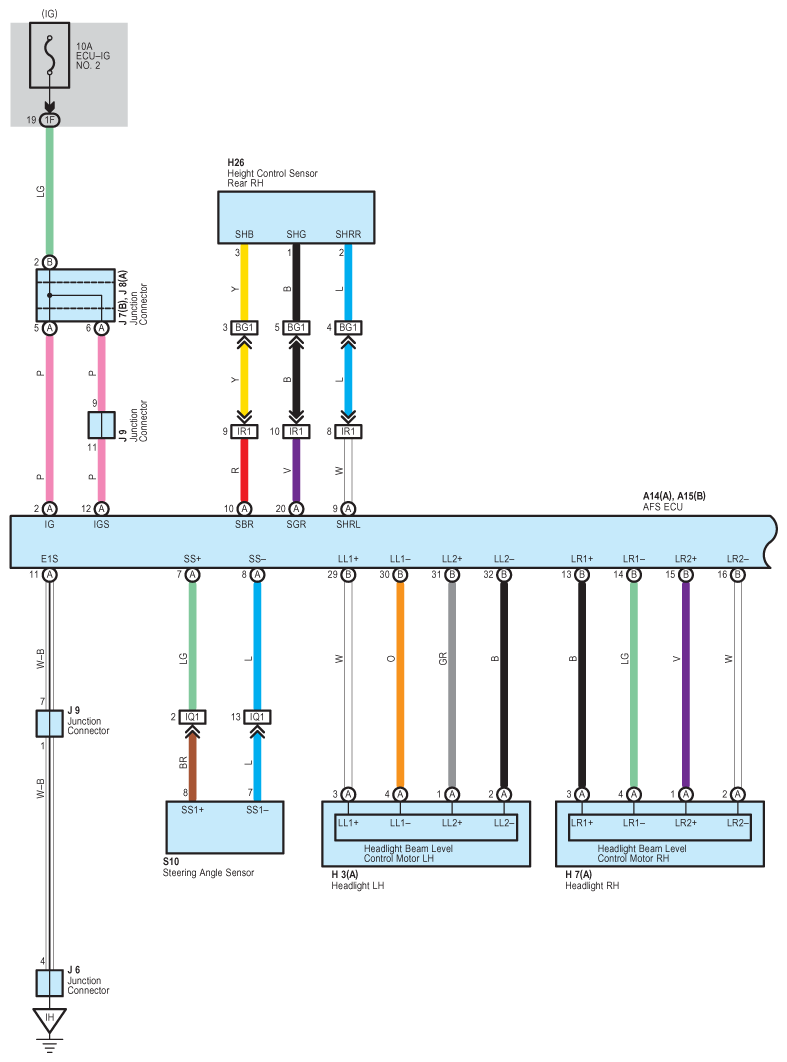

Fig 1: Adaptive Front-Lighting System Wiring Diagram (1 Of 5)
G08914807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

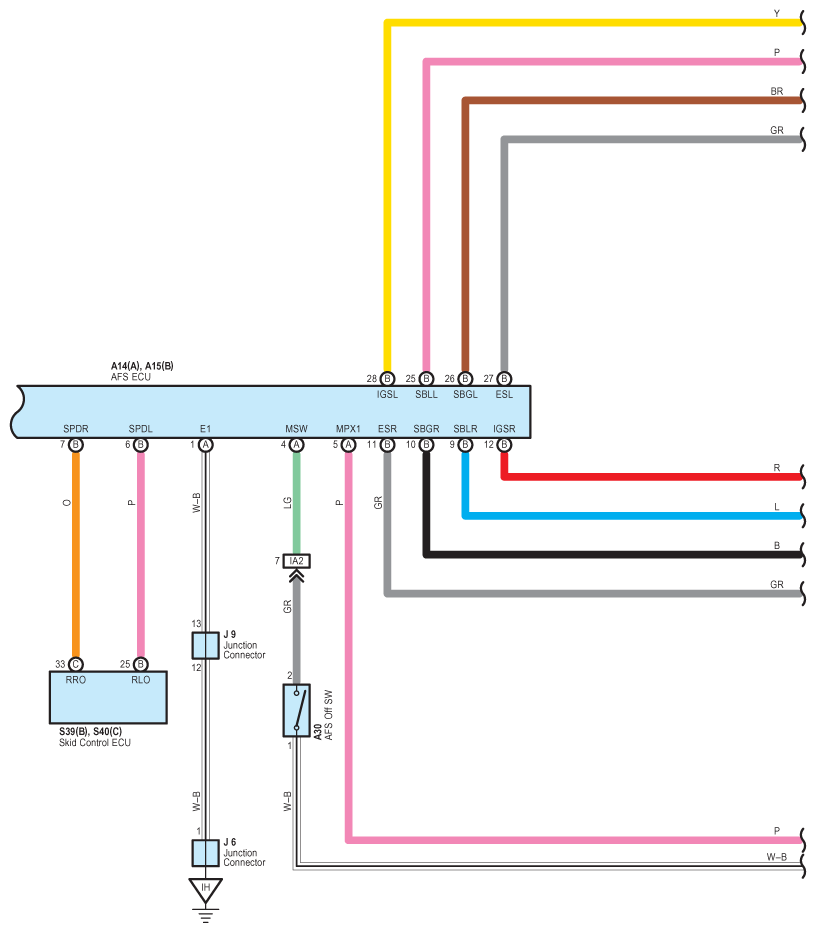

Fig 2: Adaptive Front-Lighting System Wiring Diagram (2 Of 5)
G08914808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

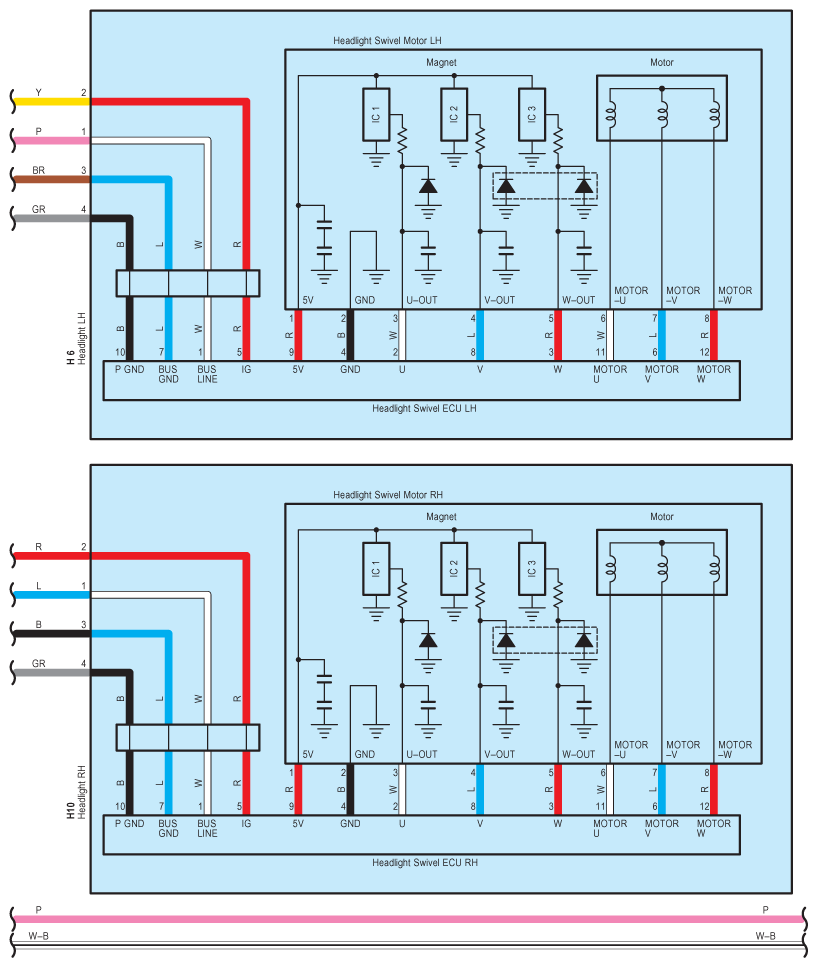

Fig 3: Adaptive Front-Lighting System Wiring Diagram (3 Of 5)
G08914809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

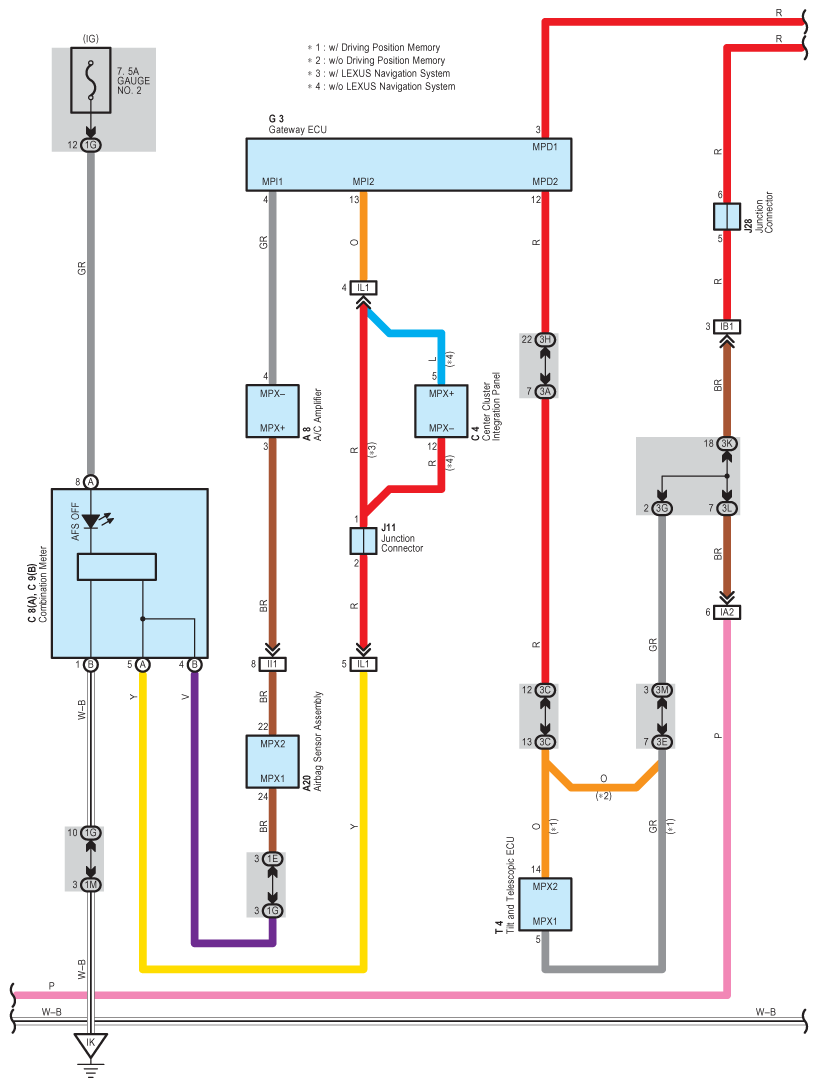

Fig 4: Adaptive Front-Lighting System Wiring Diagram (4 Of 5)
G08914810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

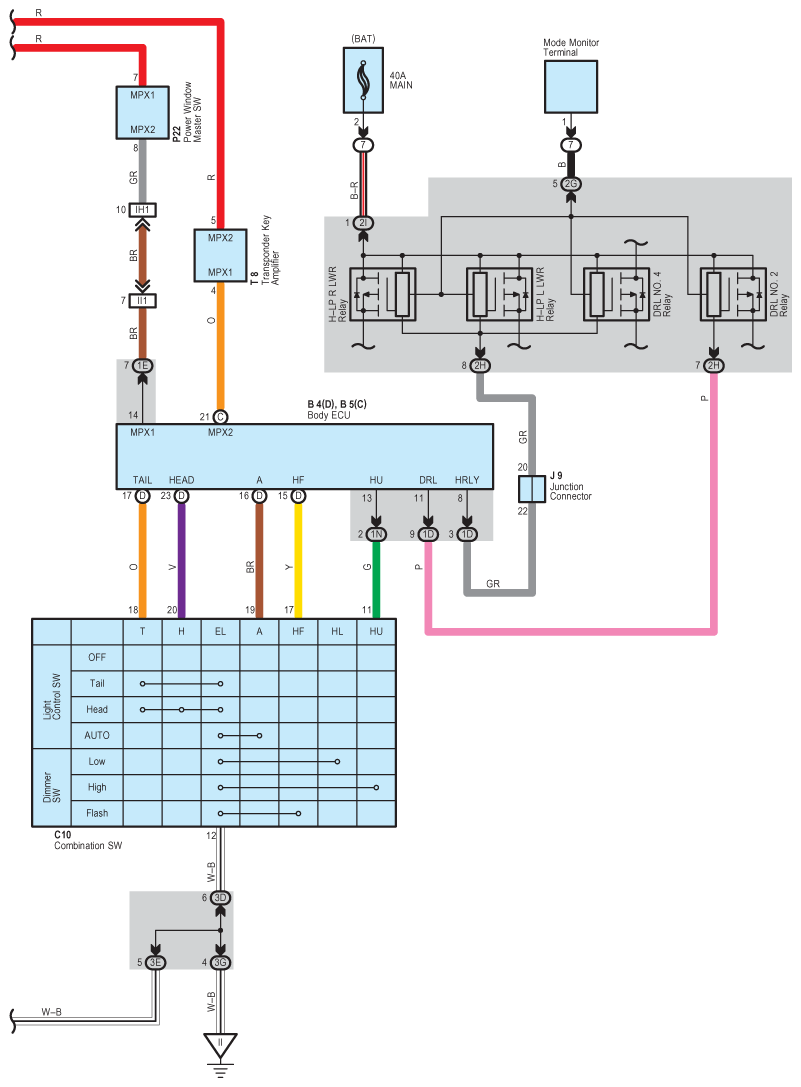

Fig 5: Adaptive Front-Lighting System Wiring Diagram (5 Of 5)
G08914811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
