ECU Power Source Circuit: Wiring Diagram

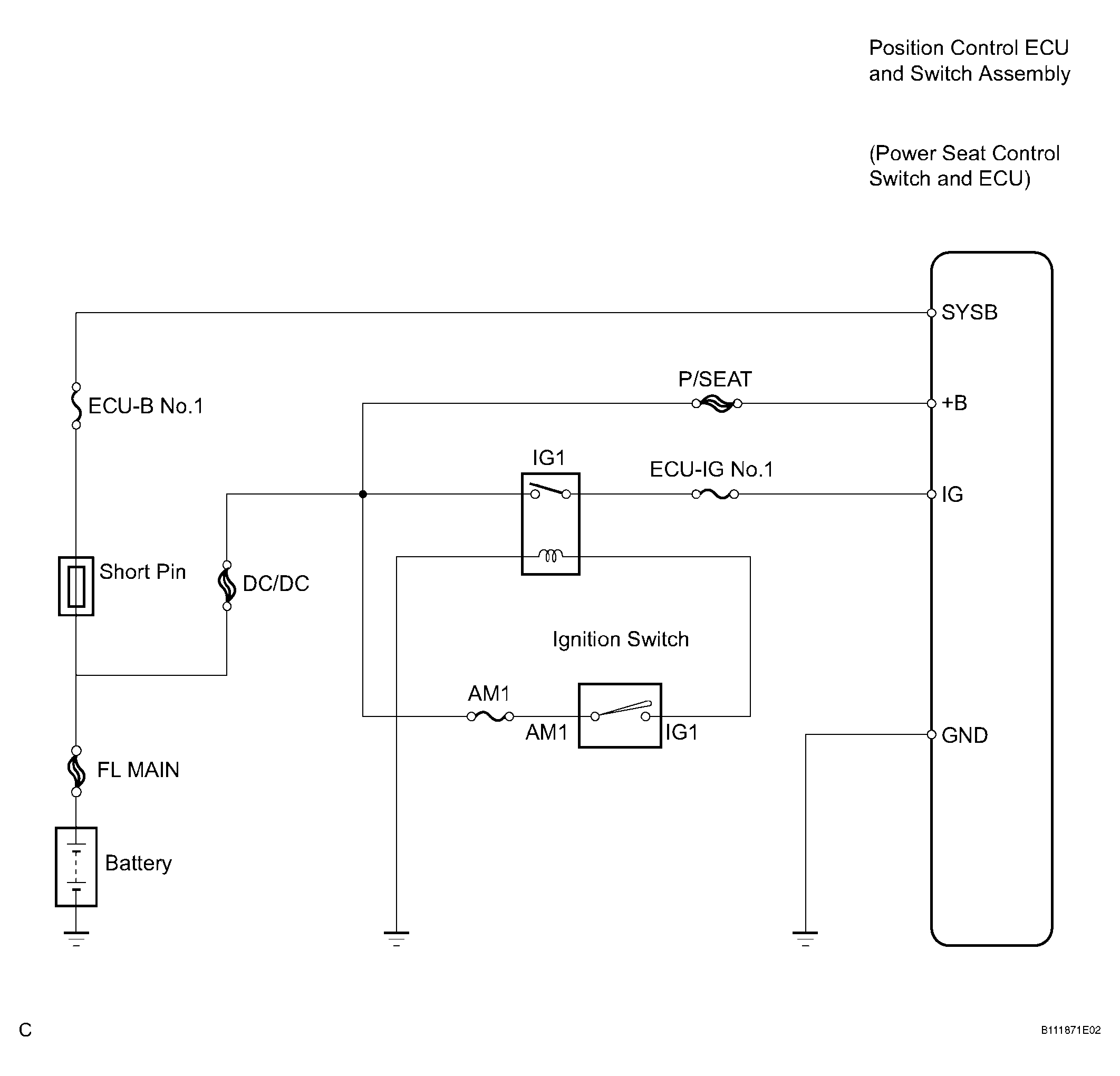

Fig 1: ECU Power Source Circuit
G04116269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
