Power Seat for Driver's Seat with Memory
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Seat for Driver's Seat with Memory: Notes

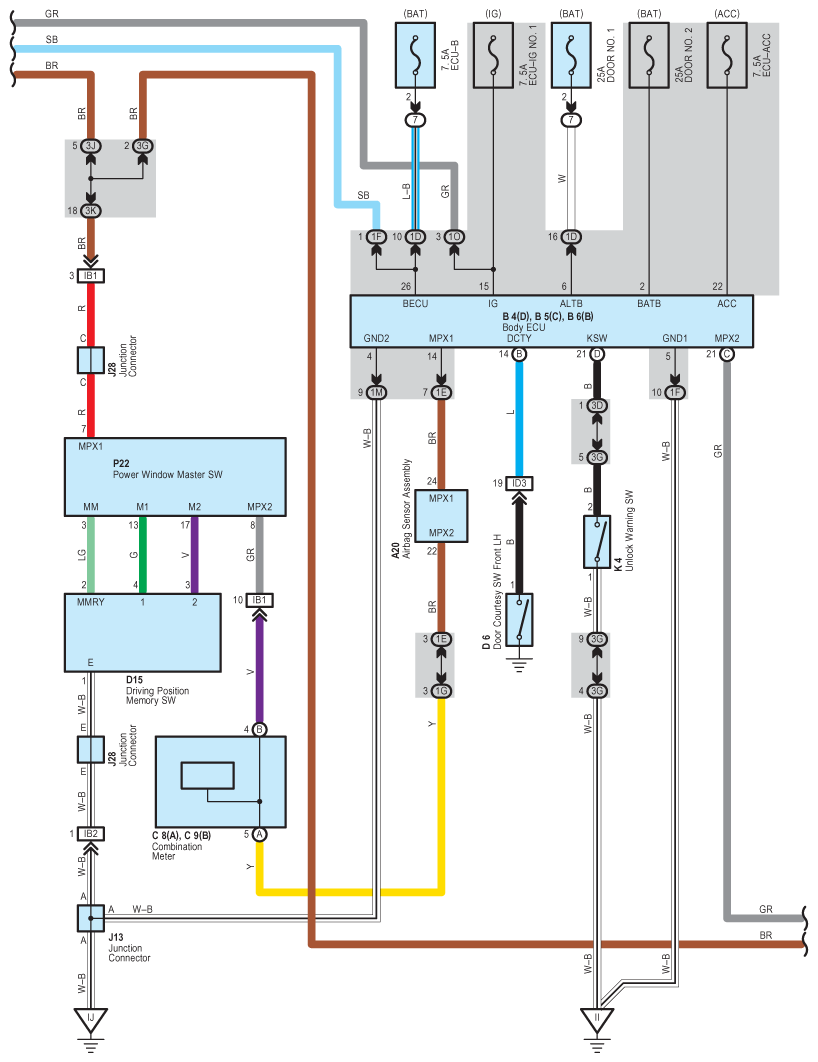

Fig 1: Power Seat For Driver's Seat With Memory - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

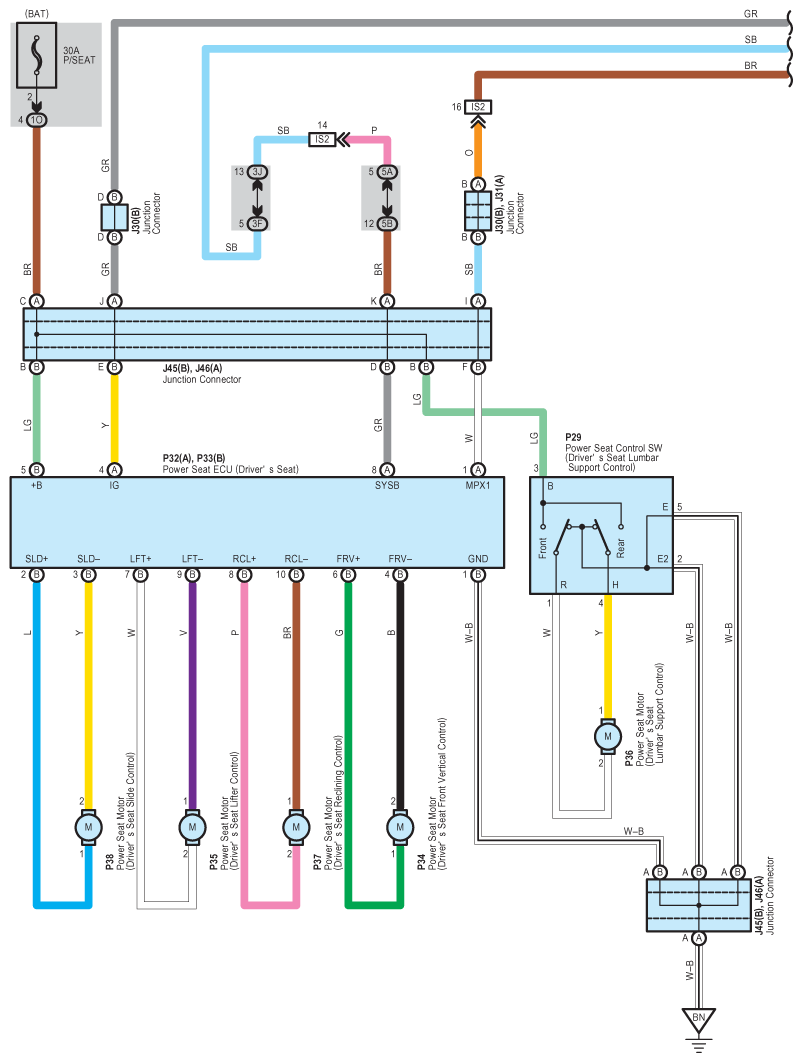

Fig 2: Power Seat For Driver's Seat With Memory - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

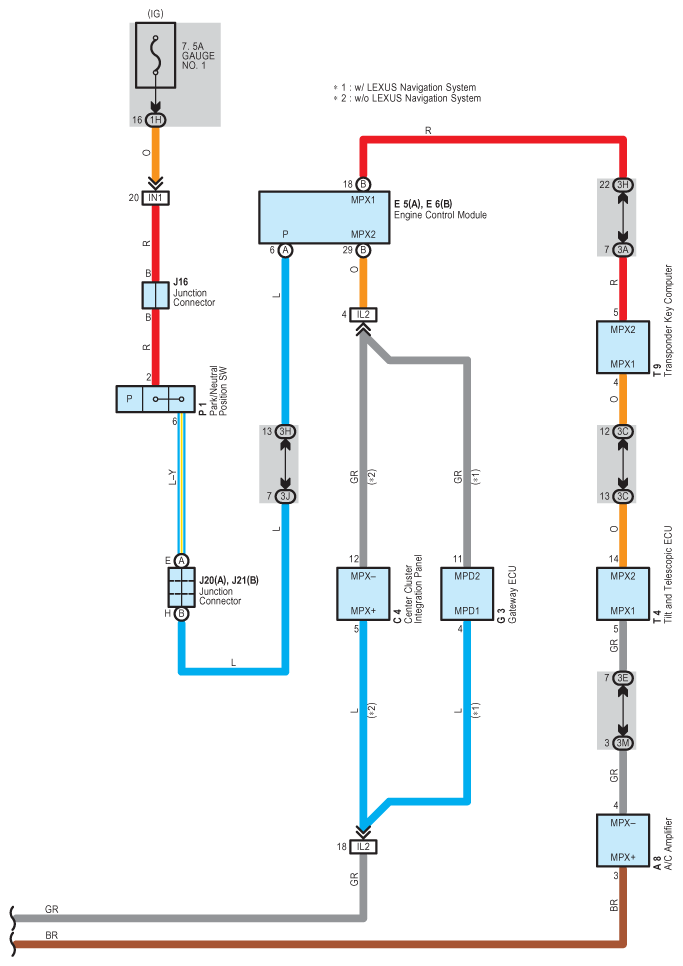

Fig 3: Power Seat For Driver's Seat With Memory - Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
