TC and CG Terminal Circuit: Wiring Diagram

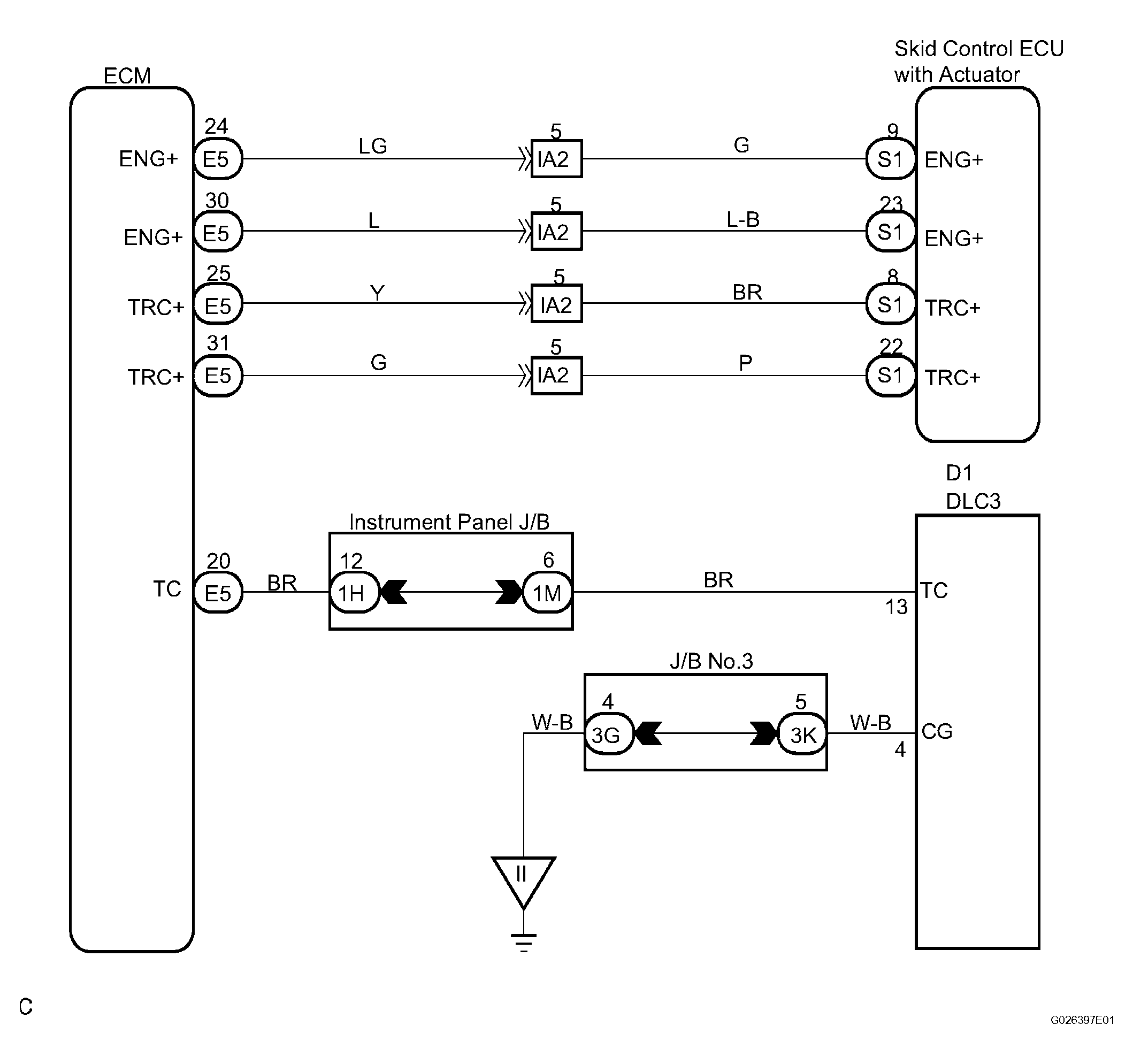

Fig 1: Identifying TC And CG Terminal Wiring Diagram
G04090630Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
