Rear Seat Outer Belt Assembly: Components

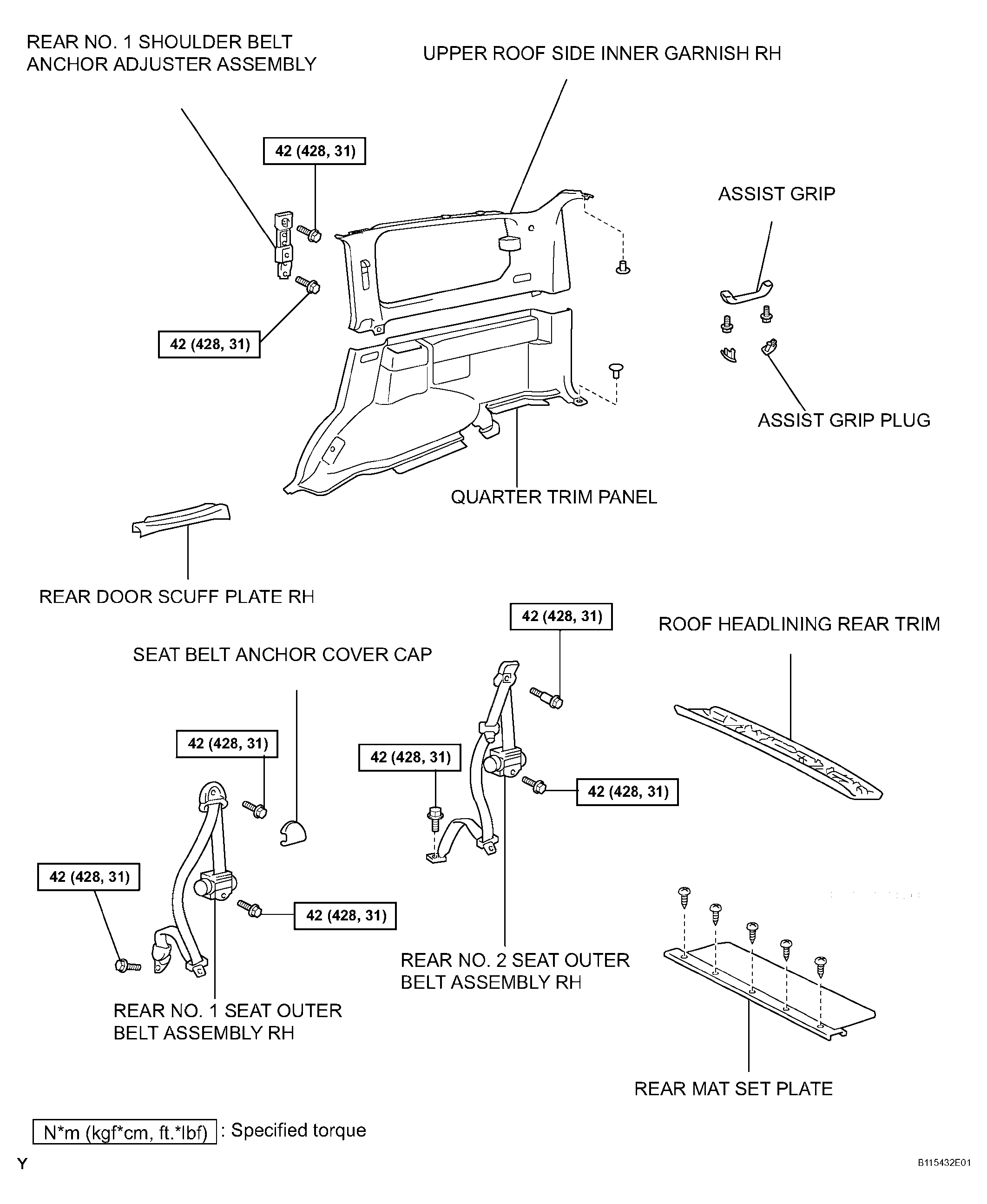

Fig 1: Identifying Rear Seat Outer Belt Assembly Components
G04064924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
