DTC C1210/36 Zero Point Calibration of Yaw Rate Sensor Undone: Wiring Diagram

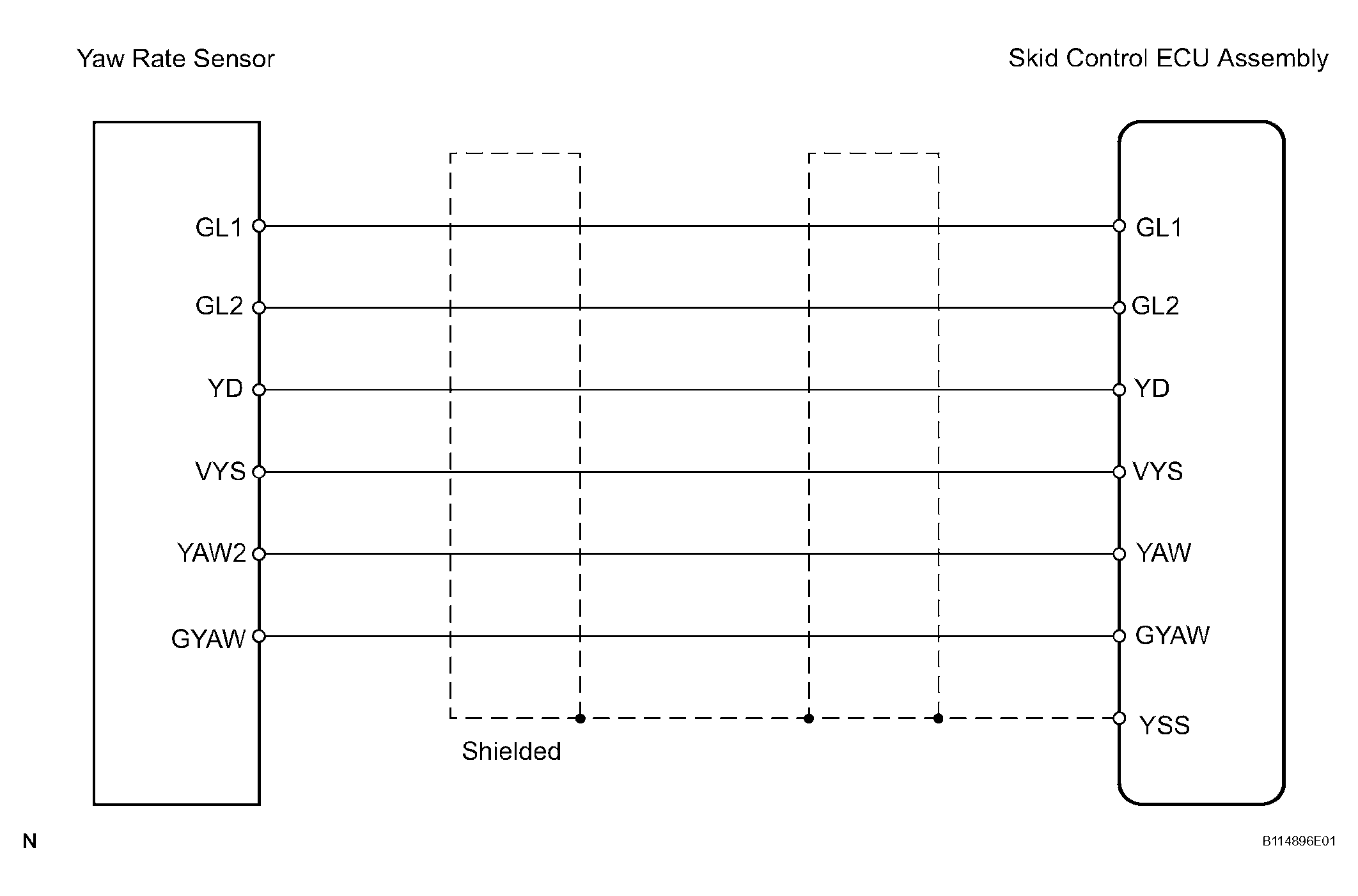

Fig 1: Zero Point Calibration Of Yaw Rate Sensor Undone Wiring Diagram
G04063865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK WHETHER ZERO POINT CALIBRATION OF YAW RATE SENSOR HAS BEEN DONE OR NOT
    1. Move the shift lever to the P position and turn the ignition switch ON. Repeat connecting and releasing TS and CG terminals of the DLC3 4 times or more for 8 seconds. After that, do not move the vehicle for 14 seconds. or more.
    2. Check that the "VSC TRAC" warning light and "VSC OFF" indicator light lights up for 15 seconds.

      OK : END

      NG : Go To Next Step

  2. CHECK WIRE HARNESS (PNP SWITCH - SKID CONTROL ECU ASSEMBLY AND ECM)

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : Go To Next Step

  3. CHECK WIRE HARNESS (YAW RATE SENSOR - SKID CONTROL ECU ASSEMBLY)

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : Go To Next Step

  4. CHECK YAW RATE SENSOR
    1. Check the yaw rate sensor (DTC C1233/33; DTC C1234/34  ).

      NG : REPLACE YAW RATE SENSOR

      OK : REPLACE SKID CONTROL ECU ASSEMBLY
