Terminals Of Ecu

  1. CONNECTORS

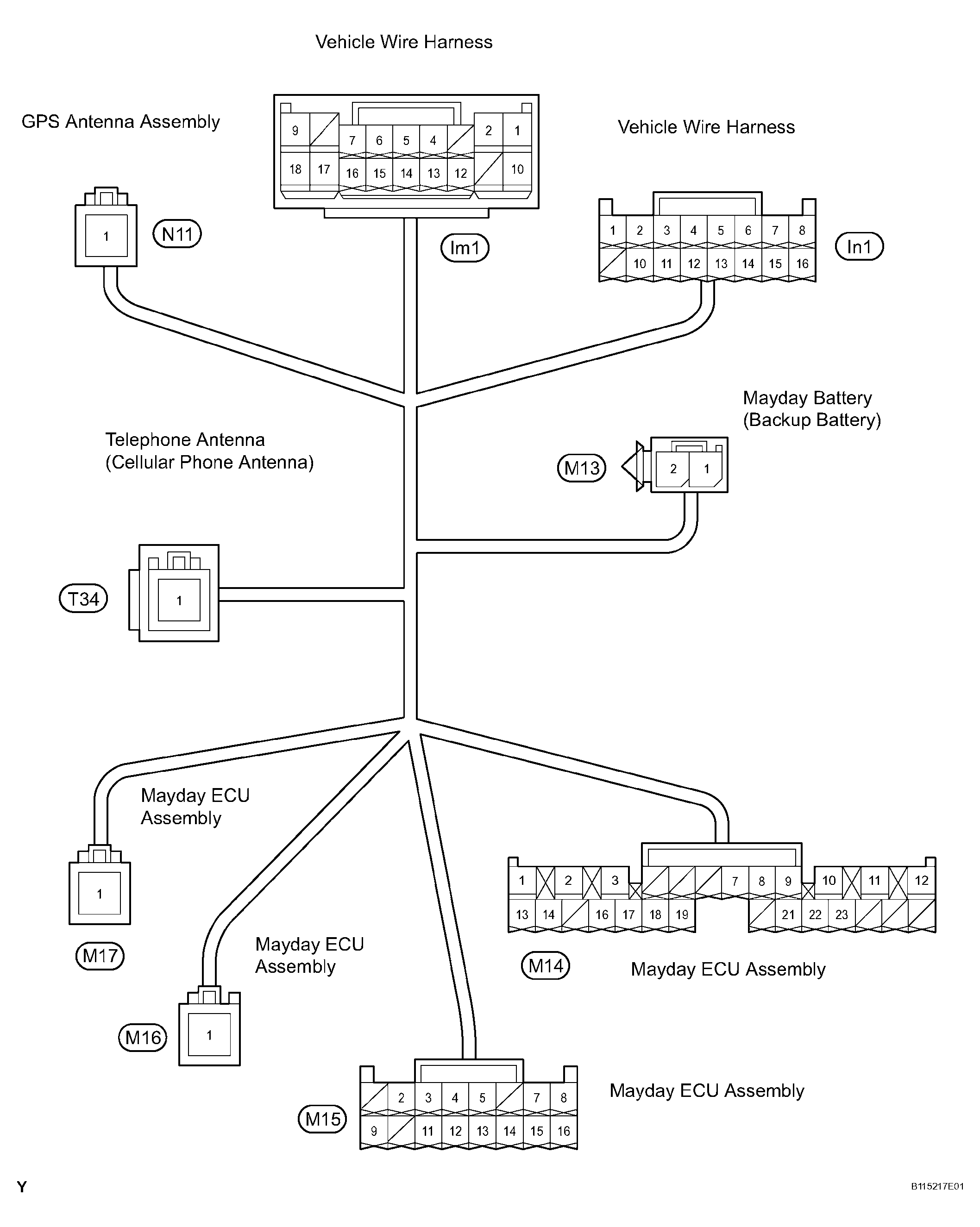

    Fig 1: Connectors Connection Diagram
    G04065601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. WIRING DIAGRAMS

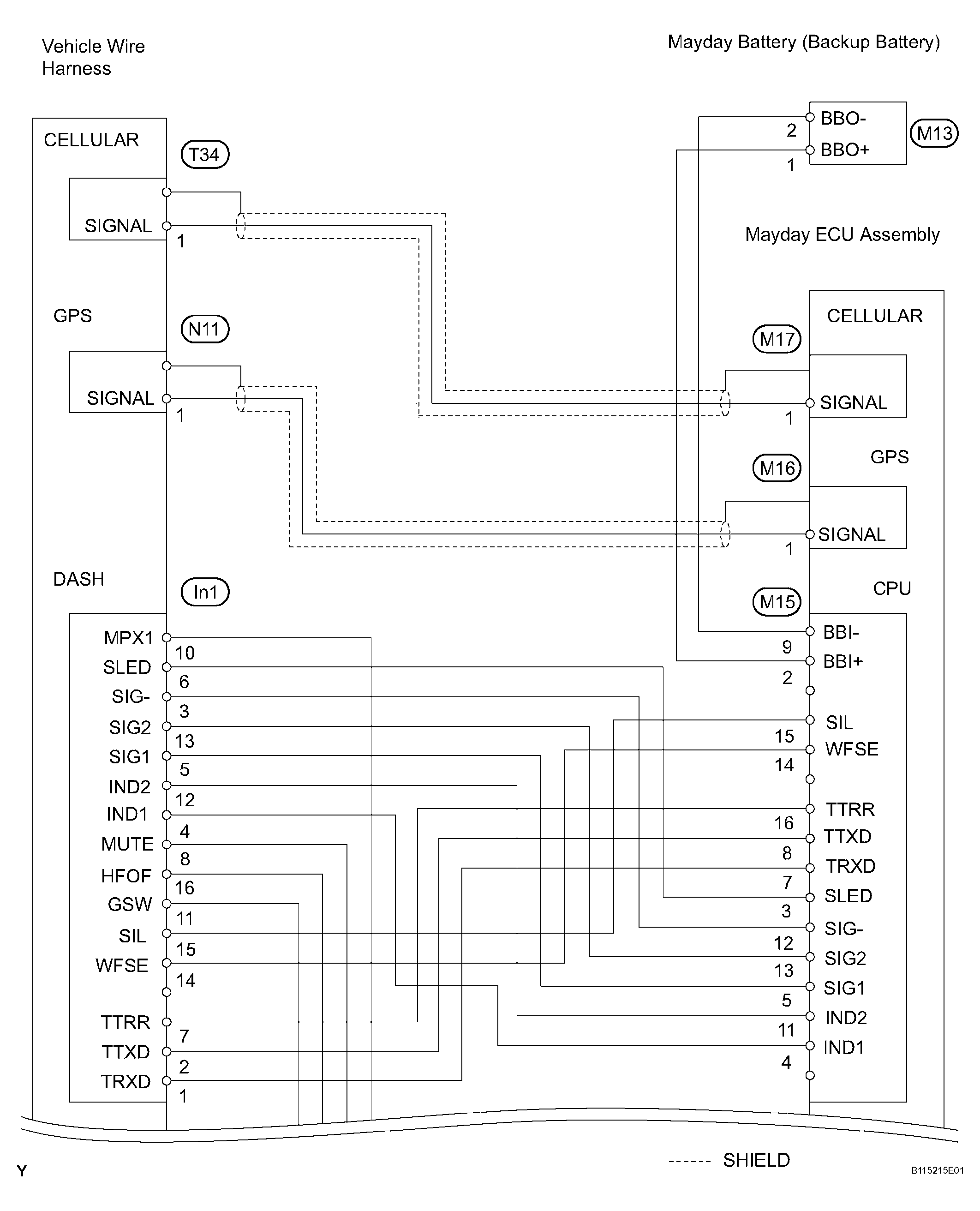

Fig 2: Wiring Diagram (1 Of 2)
G04065602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

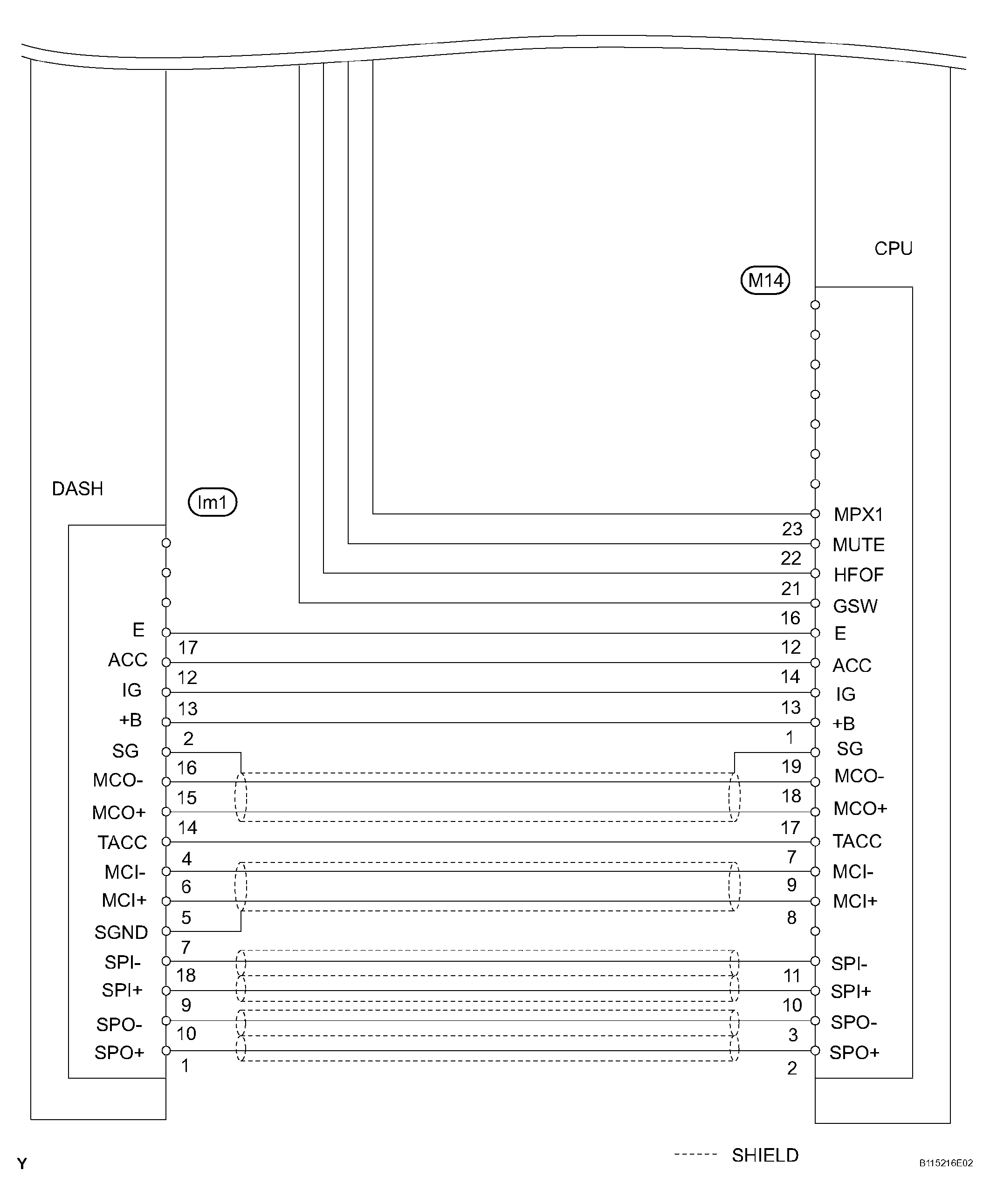

Fig 3: Wiring Diagram (2 Of 2)
G04065603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
