System Diagram

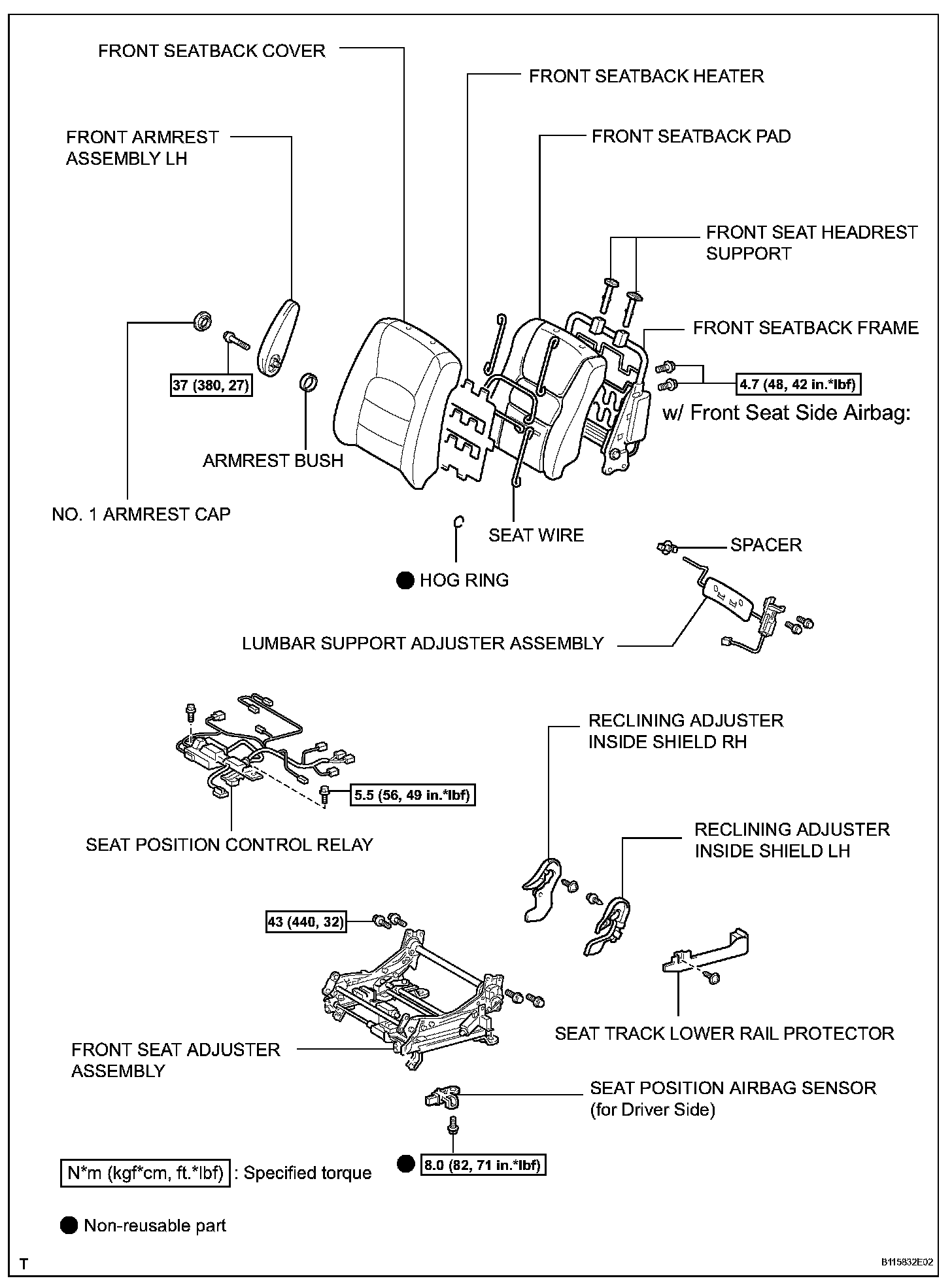

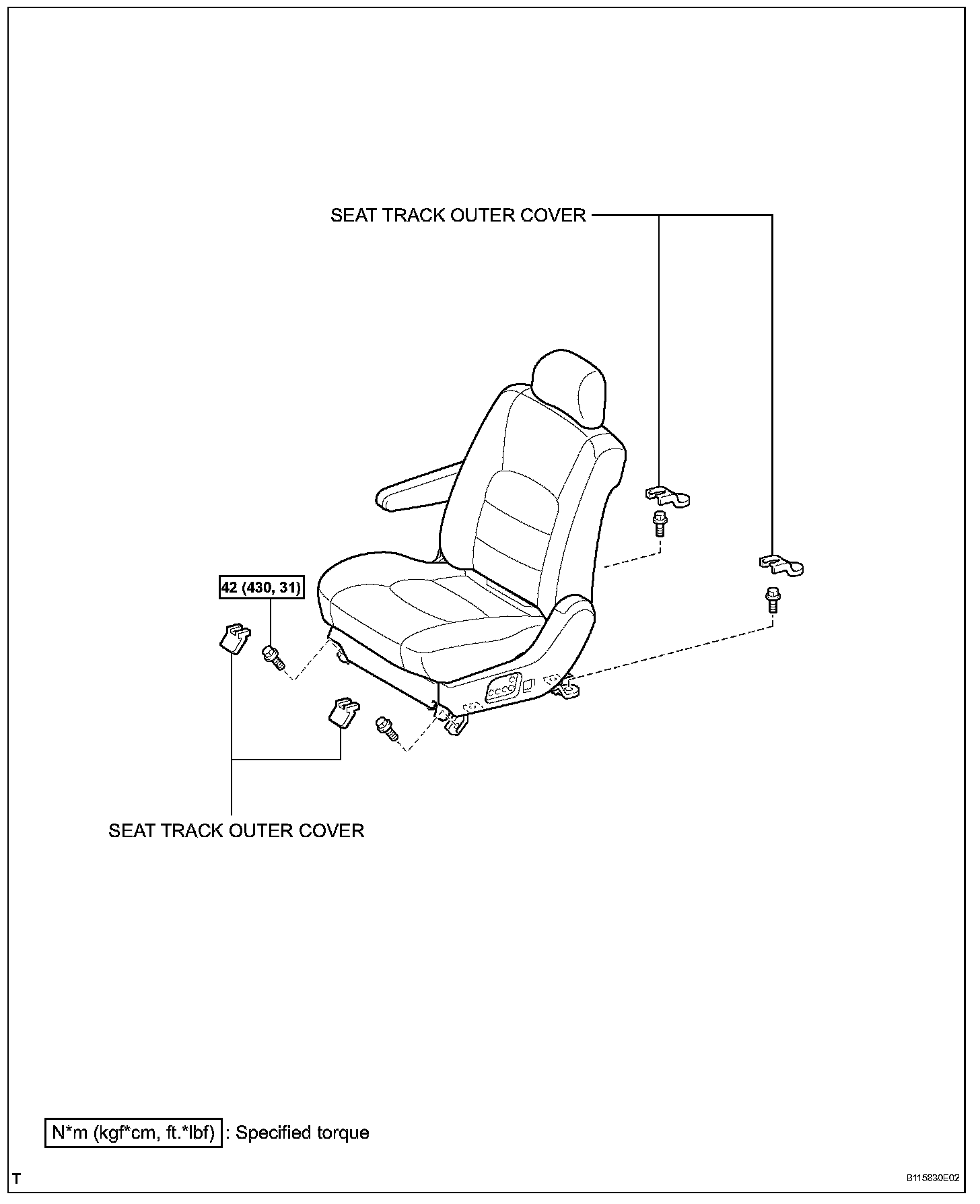

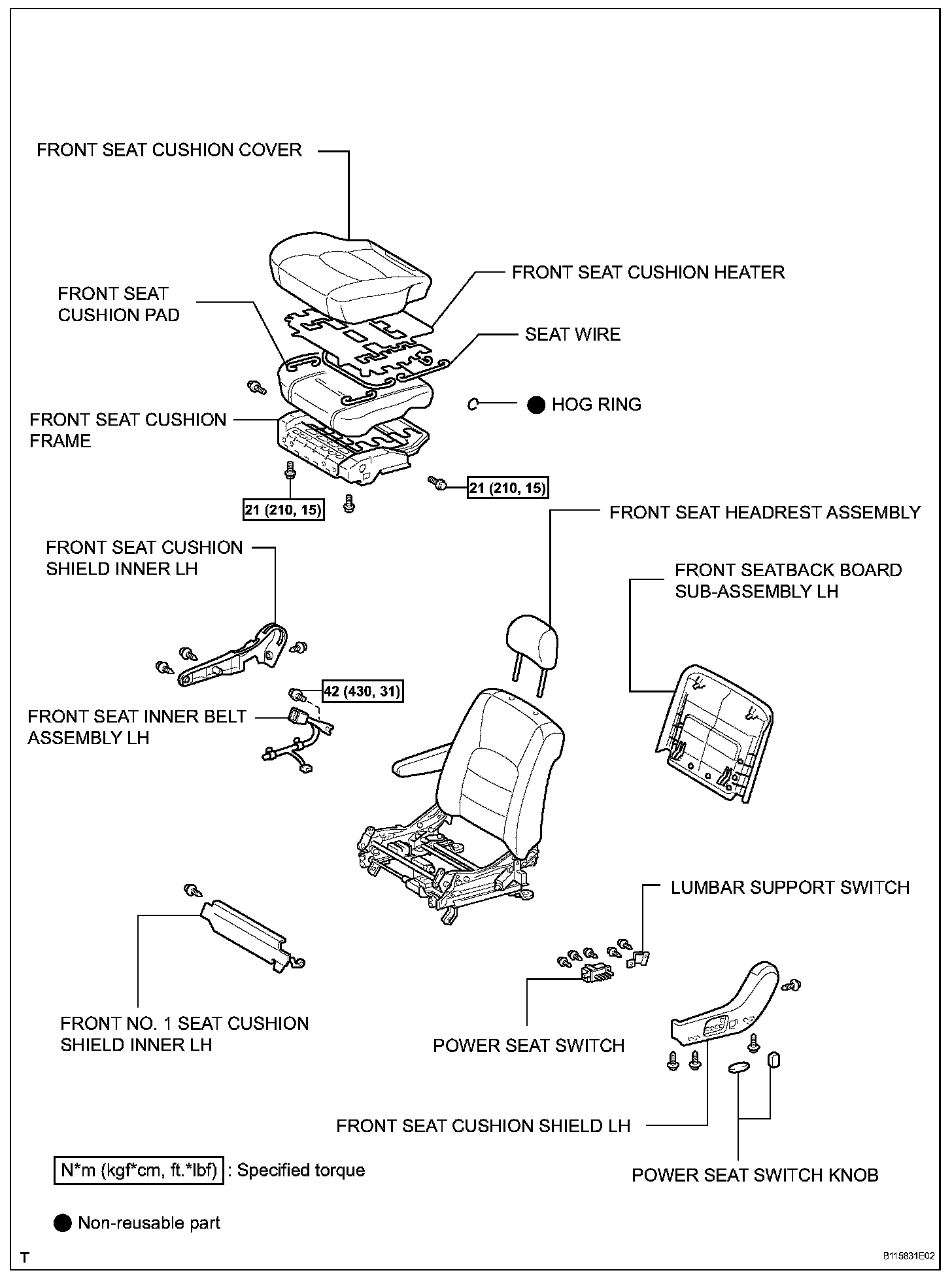

Front Seat Assembly:



Front Seat Assembly:



Front Seat Assembly:

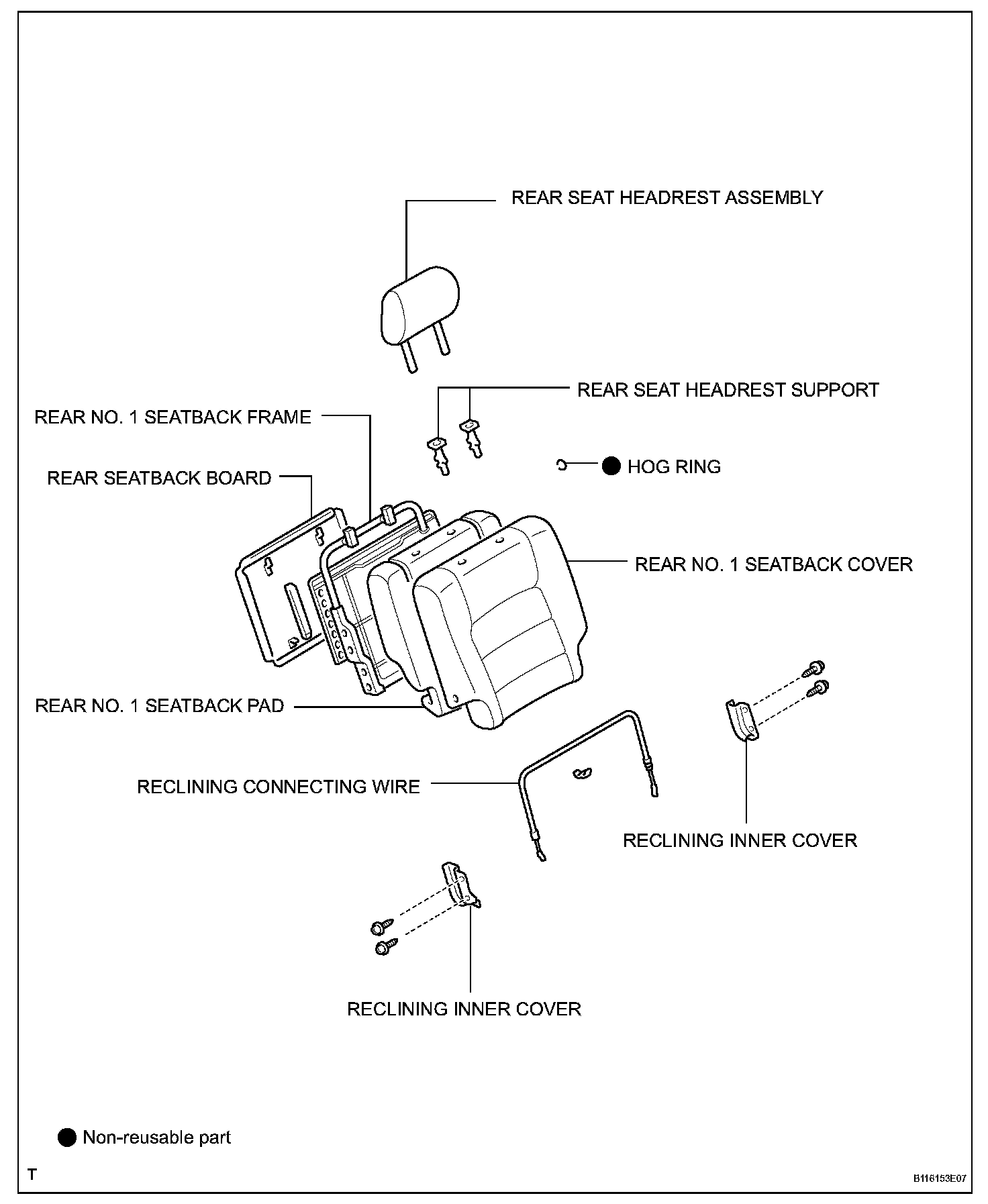

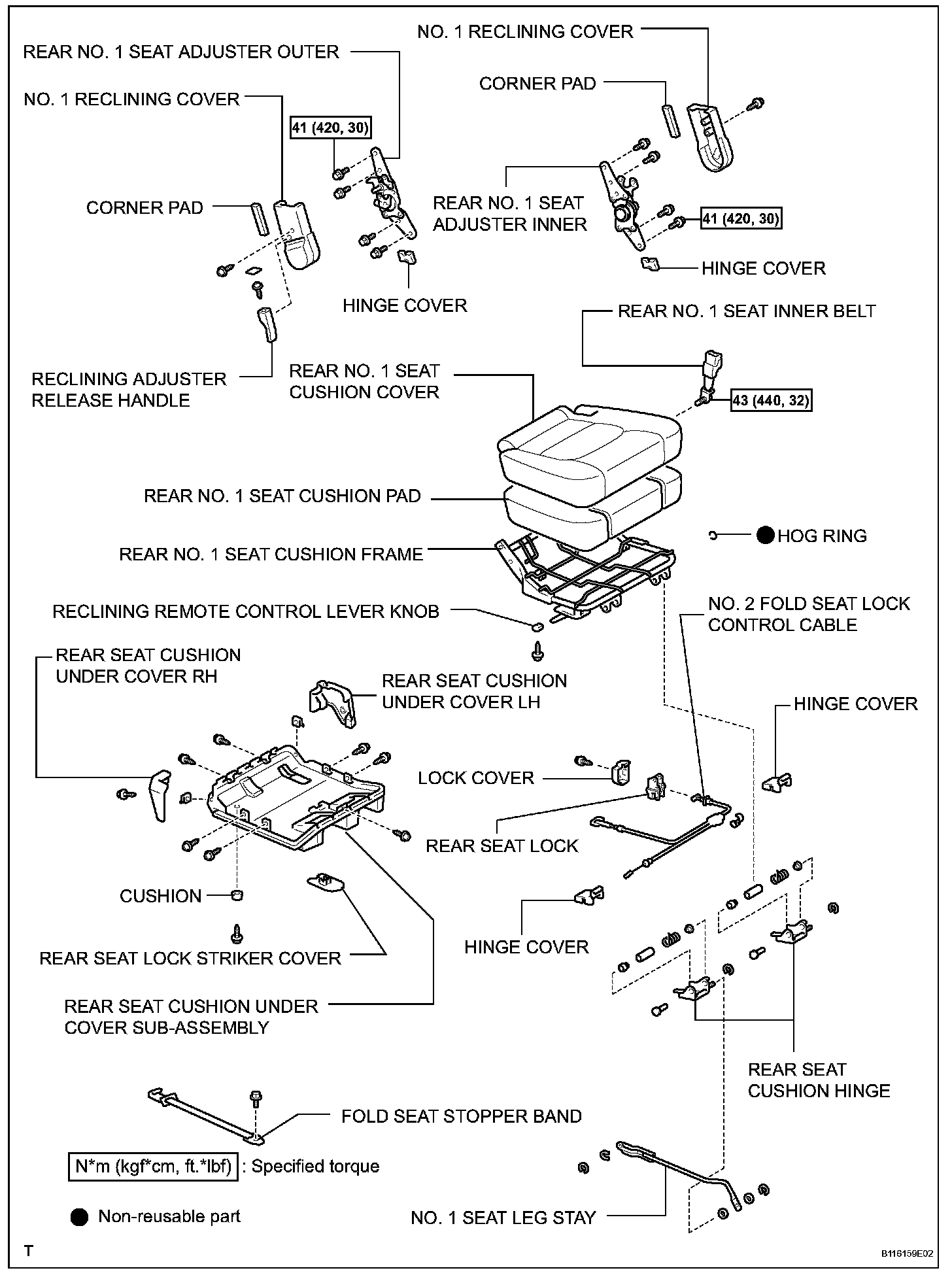

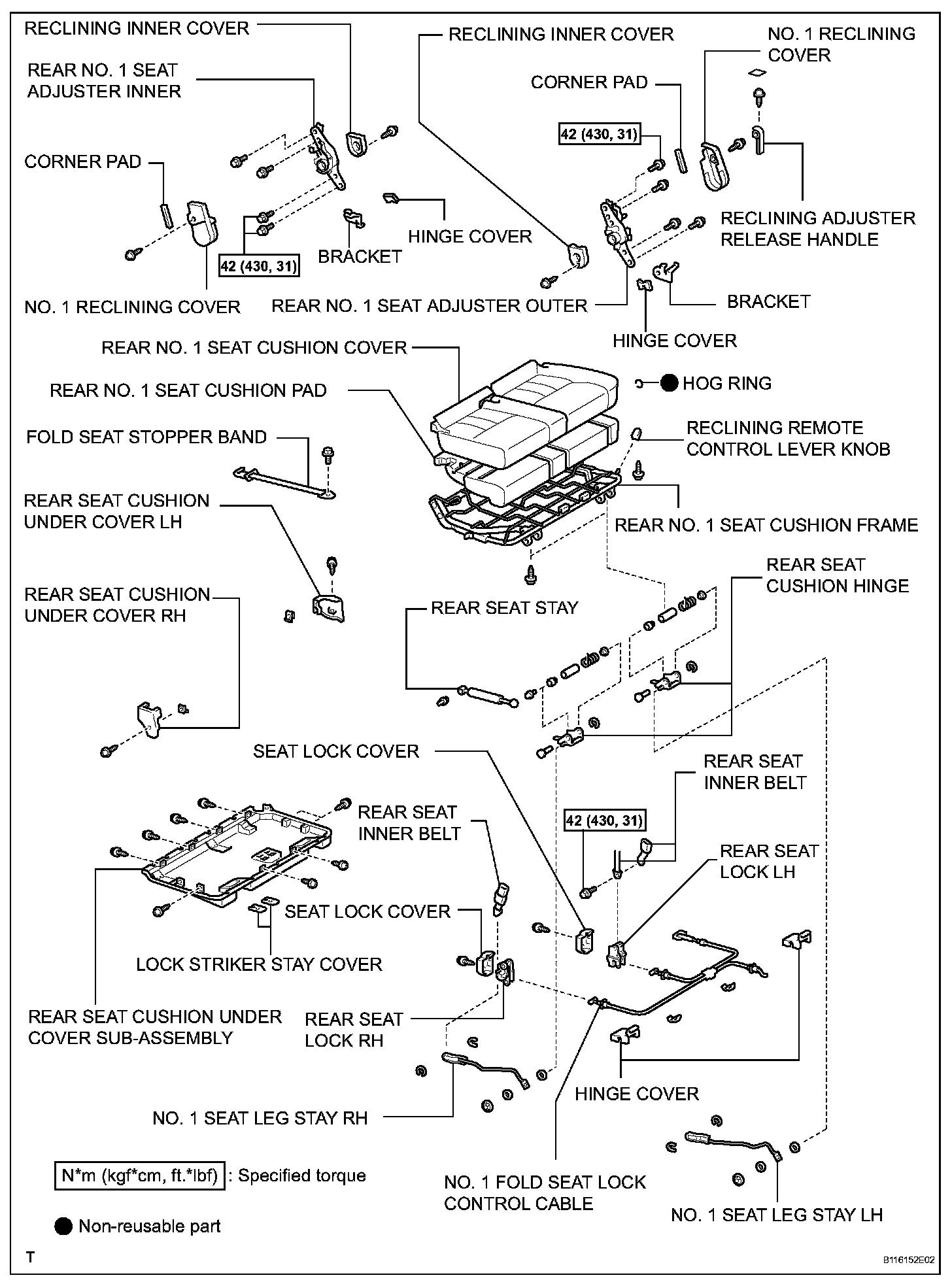

Rear No. 1 Seat Assembly (for LH Side):



Rear No. 1 Seat Assembly (for LH Side):

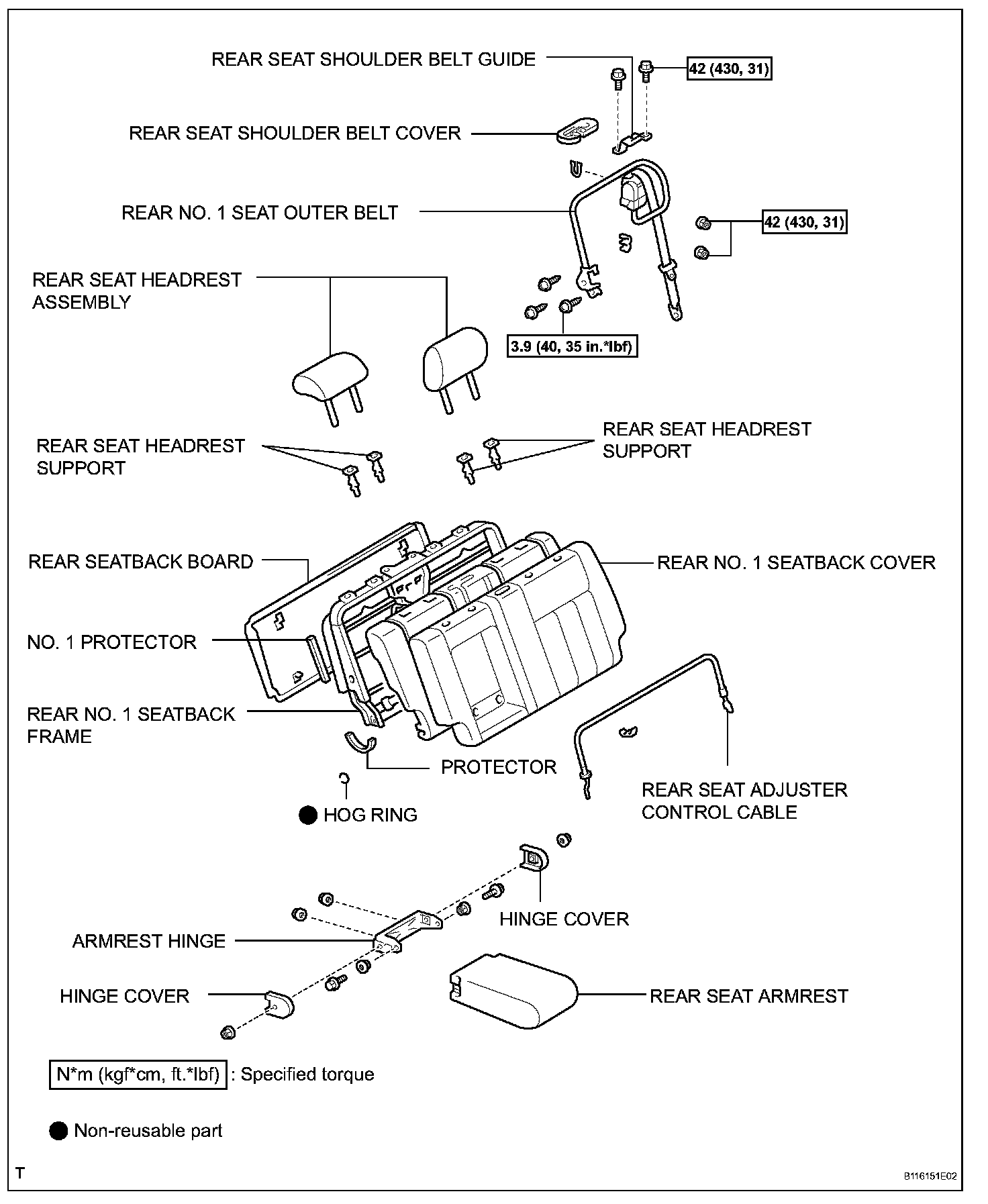

Rear No. 1 Seat Assembly (for RH Side):



Rear No. 1 Seat Assembly (for RH Side):

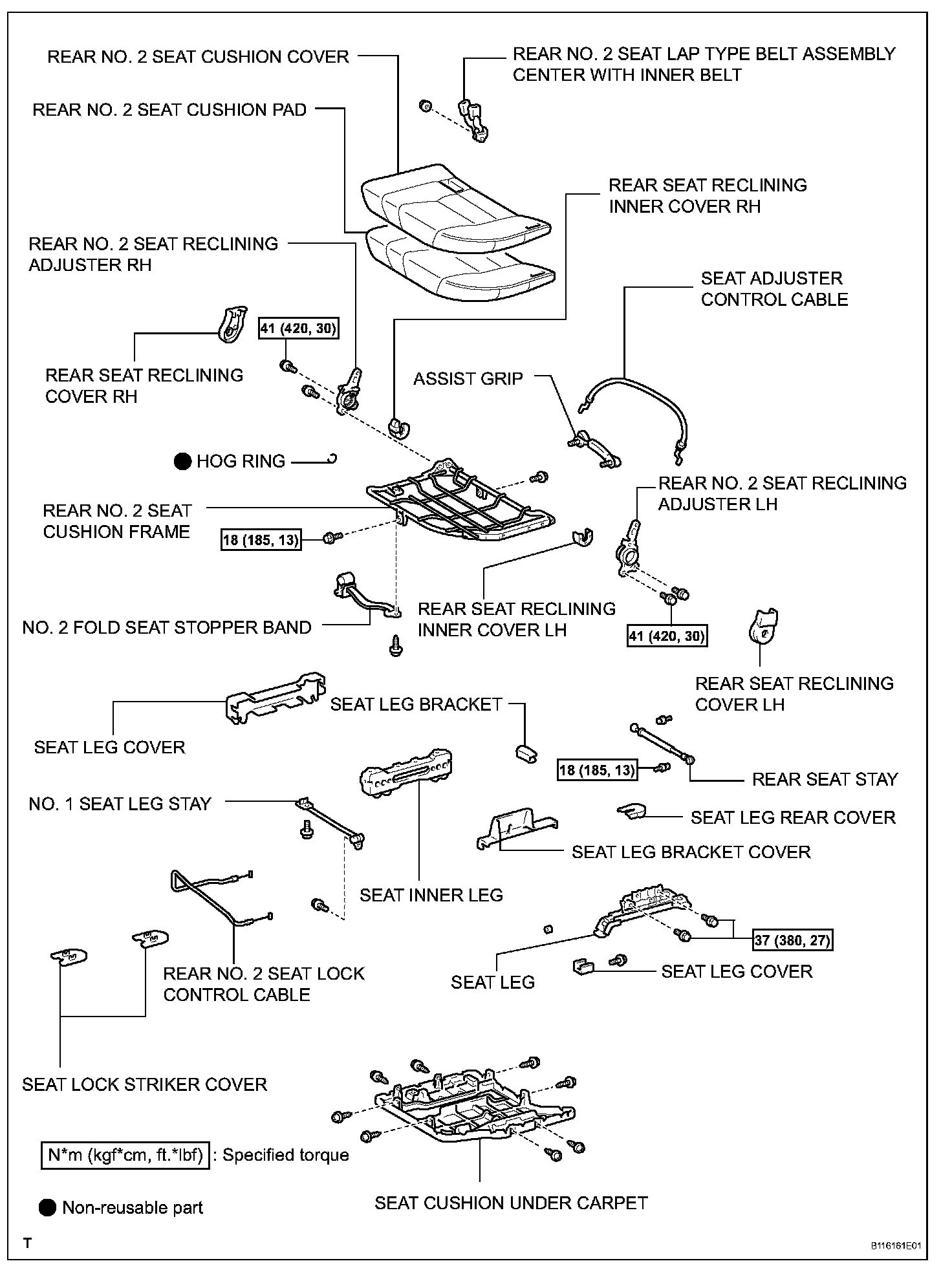

Rear No. 2 Seat Assembly:

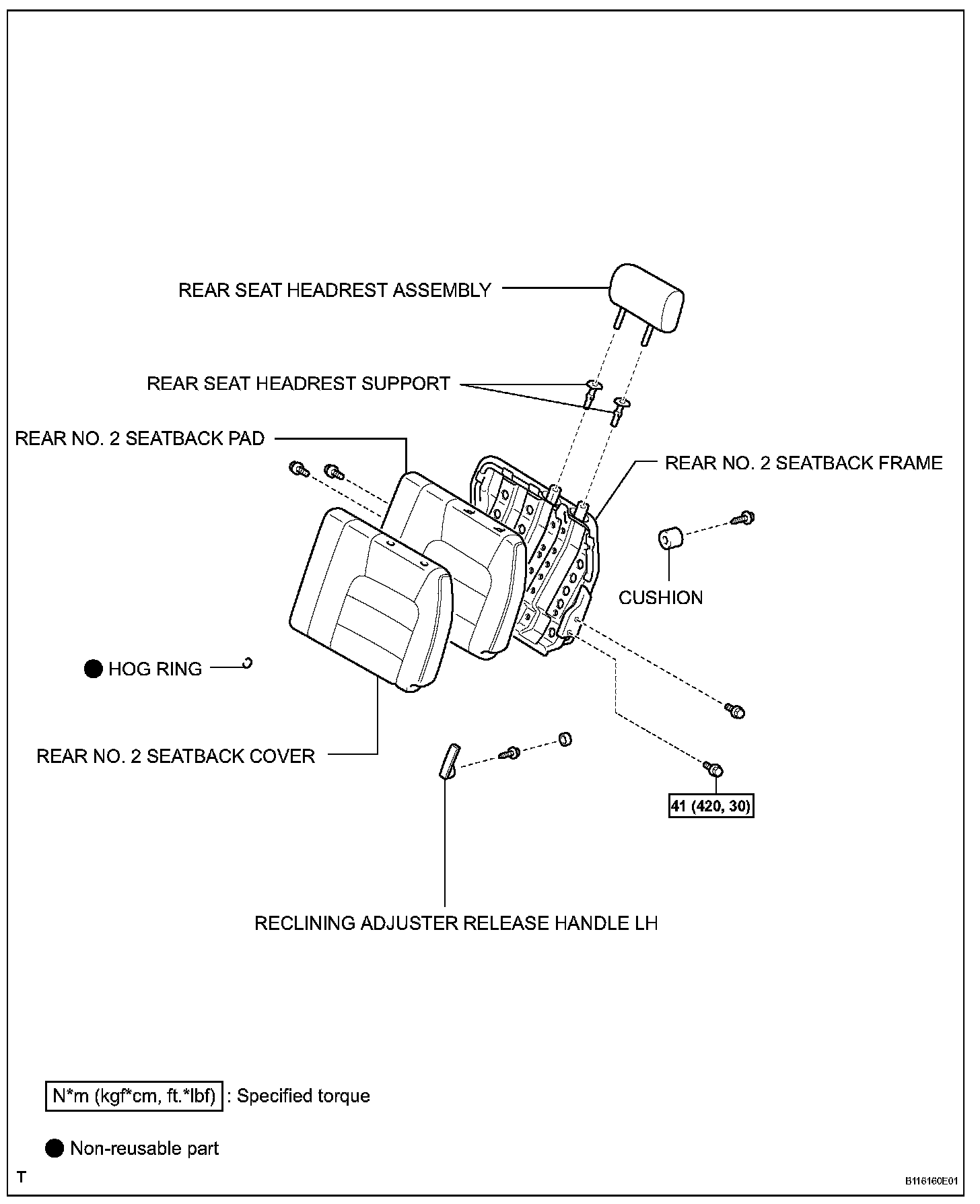

Rear No. 2 Seat Assembly:
